Specifications
Brand Name :
Hongruntong Marine
Model Number :
HM-RDH20
Certification :
ABS, DNV, RMRS, CCS, LR, BV, SGS, V-Trust
Place of Origin :
China
MOQ :
1
Price :
$150-$280
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1200 Pcs Per Month
Delivery Time :
5-7 Work Days
Packaging Details :
Wooden Pallets, Wooden Box
Product Name :
Rotary Drilling Hose
Material :
Natural Rubber
Reinforcement :
High Tensile Steel Wire
Cover :
High Quality Synthetic Rubber
Working Pressure :
35 Mpa - 75 Mpa
Connnection type :
Hammer Union / Flange
Color :
Black
Machine Type :
Drilling Equipment
Application :
Petroleum Base Hydraulic Fluids
Warranty :
3 Years
Description
High Pressure Rotary Drilling Hose Rubber Rig Hose API 7K Certificated
Rotary Drilling Hose - High-Performance Solution for Drilling Applications

The Rotary Drilling Hose is an essential component in drilling operations, designed to withstand the extreme conditions of oilfield, geothermal, and water well drilling. Engineered for high-pressure fluid transfer, this heavy-duty hose ensures reliability, safety, and efficiency in demanding applications. Its robust construction and advanced design make it a trusted choice for professionals in the drilling industry.

Product Specifications
Tube Modified nitrile, black, specifically engineered for the effective handling of abrasive, corrosive substances, and oil drilling mud.
Reinforcement Composite construction featuring multiple layers of textile fabric and steel cable, with a layer of rubber positioned between the cable layers for enhanced performance.
Cover Black modified nitrile with a specially engineered ultra-abrasion cover, designed to provide exceptional resistance to abrasion, corrosion, cutting, gouging, oil, and weather conditions.
Coupling Swaged couplings, full range of couplings available, such as hammer union, flanges, hubs, male thread etc.
Certification API 7K-0376/ISO14693
Temperature -40°C to +82°C (-104°F to +180°F)
Options Accessories such as safety clamps and hose lift eyes are available upon request
Test Each hose is tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
High Pressure Rotary Drilling Pipe Natural Rubber Construction API 7K Certification
High Pressure Rotary Drilling Pipe Natural Rubber Construction API 7K Certification
High Pressure Rotary Drilling Pipe Natural Rubber Construction API 7K Certification
High Pressure Rotary Drilling Pipe Natural Rubber Construction API 7K Certification
Key Features
  • High-Pressure Performance: Designed to handle high-pressure drilling mud, oil, and water, ensuring seamless fluid transfer to and from the drill rig.
  • Durable Construction: Built with multiple layers of high-quality rubber and steel wire reinforcement, providing superior resistance to abrasion, pressure, and environmental stress.
  • Flexible and Robust Design: Combines excellent flexibility with structural integrity, allowing for ease of installation and movement without compromising durability.
  • Heat and Chemical Resistance: Engineered to withstand exposure to harsh chemicals, oil, and extreme temperatures encountered in drilling operations.
Applications
  • Oil and Gas Drilling: Efficiently transfers drilling mud, cement, and other fluids in offshore and onshore operations.
  • Geothermal Drilling: Handles high-temperature fluids for geothermal exploration projects.
  • Water Well Drilling: Reliable for transporting water and drilling fluids in well construction.
Product Advantages
  • Enhanced Safety: Designed to meet industry standards for high-pressure and high-temperature operations, ensuring safe and reliable performance.
  • Customizable Options: Available in various lengths, diameters, and pressure ratings to suit different drilling needs.
  • Long Service Life: Resistant to wear, weather, and chemical exposure, reducing the frequency of replacements and maintenance costs.
Technical Specifications
Model I.D. (inch/mm) O.D. (mm) W.P. (mpa/psi) T.P. (mpa/psi) Weight (kg/m) B.R. (mm)
HMRDH-Grade A 1 1/2 / 38 51 11(1500) 22(3000) 2.19 560
HMRDH-Grade A 2 / 51 65 11(1500) 22(3000) 3.03 900
HMRDH-Grade A 2 1/2 / 64 78 11(1500) 22(3000) 3.95 1200
HMRDH-Grade B 1 1/2 / 38 52 14(2000) 28(4000) 2.39 560
HMRDH-Grade B 2 / 51 66 14(2000) 28(4000) 3.25 900
HMRDH-Grade B 2 1/2 / 64 79 14(2000) 28(4000) 4.37 1200
HMRDH-Grade B 3 / 76 98 14(2000) 28(4000) 7.76 1200
HMRDH-Grade B 3 1/2 / 89 113 14(2000) 28(4000) 9.95 1300
HMRDH-Grade B 4 / 102 127 14(2000) 28(4000) 12.43 1400
HMRDH-Grade B 5 / 127 153 14(2000) 28(4000) 15.25 1500
HMRDH-Grade B 6 / 152 178 14(2000) 28(4000) 18.71 1600
HMRDH-Grade C 1 1/2 / 38 55 28(4000) 56(8000) 3.65 560
HMRDH-Grade C 2 / 51 69 28(4000) 56(8000) 5.15 900
HMRDH-Grade C 2 1/2 / 64 88 28(4000) 56(8000) 7.86 1200
HMRDH-Grade C 3 / 76 105 28(4000) 56(8000) 13.12 1200
HMRDH-Grade C 3 1/2 / 89 121 28(4000) 56(8000) 16.79 1300
HMRDH-Grade C 4 / 102 137 28(4000) 56(8000) 21.70 1400
HMRDH-Grade C 5 / 127 164 28(4000) 56(8000) 28.46 1500
HMRDH-Grade C 6 / 152 197 28(4000) 56(8000) 44.64 1600
HMRDH-Grade D 2 / 51 73 35(5000) 70(10000) 6.46 900
HMRDH-Grade D 2 1/2 / 64 91 35(5000) 70(10000) 10.75 1200
HMRDH-Grade D 3 / 76 107 35(5000) 70(10000) 14.35 1200
HMRDH-Grade D 3 1/2 / 89 123 35(5000) 70(10000) 18.77 1300
HMRDH-Grade D 4 / 102 139 35(5000) 70(10000) 23.16 1400
HMRDH-Grade D 5 / 127 171 35(5000) 70(10000) 38.00 1500
HMRDH-Grade D 6 / 152 200 35(5000) 70(10000) 48.43 1600
HMRDH-Grade E 2 / 51 80 52(7500) 104(15000) 10.37 1000
HMRDH-Grade E 2 1/2 / 64 101 52(7500) 104(15000) 17.88 1200
HMRDH-Grade E 3 / 76 120 52(7500) 104(15000) 24.45 1200
HMRDH-Grade E 3 1/2 / 89 135 52(7500) 104(15000) 29.33 1300
HMRDH-Grade E 4 / 102 148 52(7500) 104(15000) 34.24 1400
HMRDH-Grade E 5 / 127 189 52(7500) 104(15000) 55.39 1500
HMRDH-Grade F 2 / 51 82 70(10000) 105(15000) 11.81 1000
HMRDH-Grade F 2 1/2 / 64 104 70(10000) 105(15000) 20.46 1300
HMRDH-Grade F 3 / 76 129 70(10000) 105(15000) 32.74 1300
HMRDH-Grade F 3 1/2 / 89 144 70(10000) 105(15000) 39.43 1400
HMRDH-Grade F 4 / 102 158 70(10000) 105(15000) 45.73 1500
HMRDH-Grade G 2 / 51 92 105(15000) 157(22500) 17.37 1000
High Pressure Rotary Drilling Pipe Natural Rubber Construction API 7K Certification

High Pressure Rotary Drilling Pipe Natural Rubber Construction API 7K Certification

Frequently Asked Questions
Q1: Can you do OEM?
A: Yes, we can do OEM products. Welcome!
Q2: Are you a factory or trading company?
A: Factory! We are 100% manufacturer, and we have 30 years experience in hydraulic rubber hose production. Welcome to visit our factory.
Q3: Is free sample available?
A: Yes, free samples available, customer only pay freight cost.
Q4: How about your delivery time?
A: Within 20 days after you pay the payment.
Q5: What's your terms of packing?

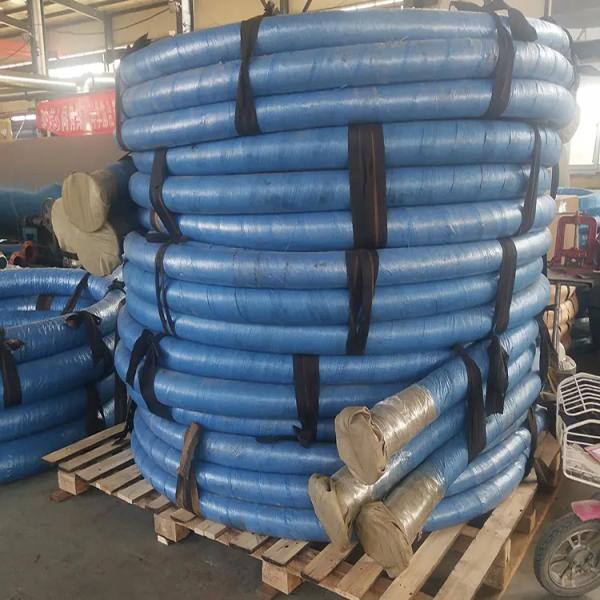

A: Generally in rolls by well wrapped with colorful poly stripes or as your requirement.
