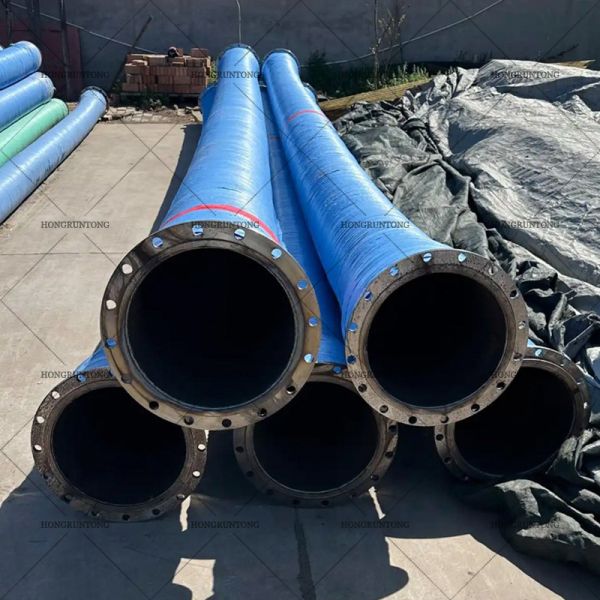

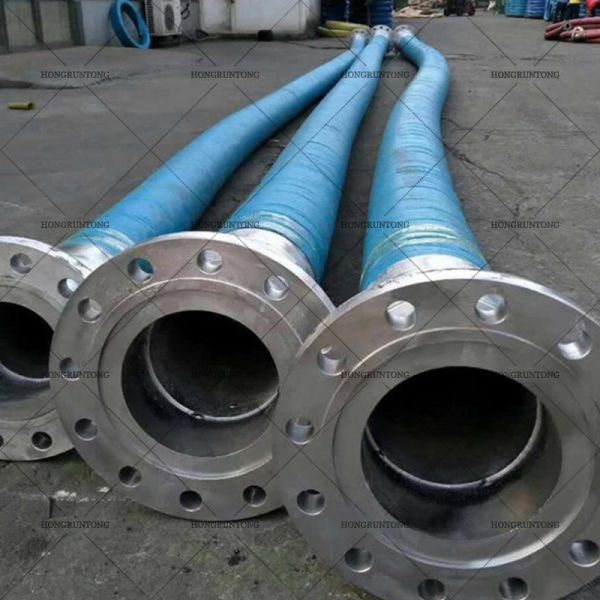

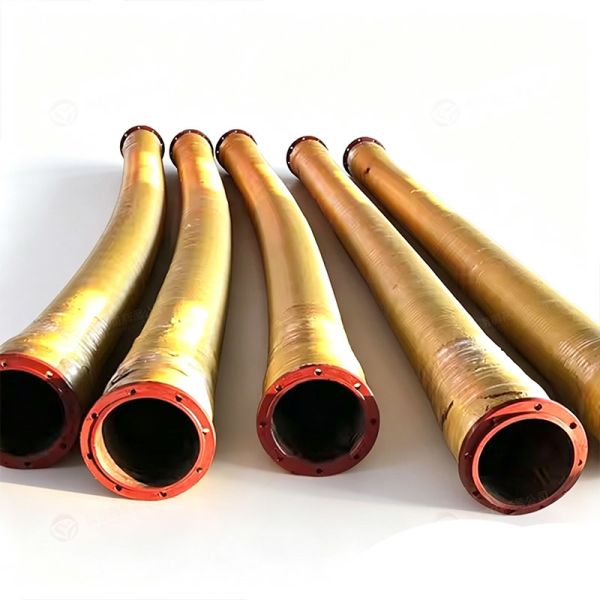

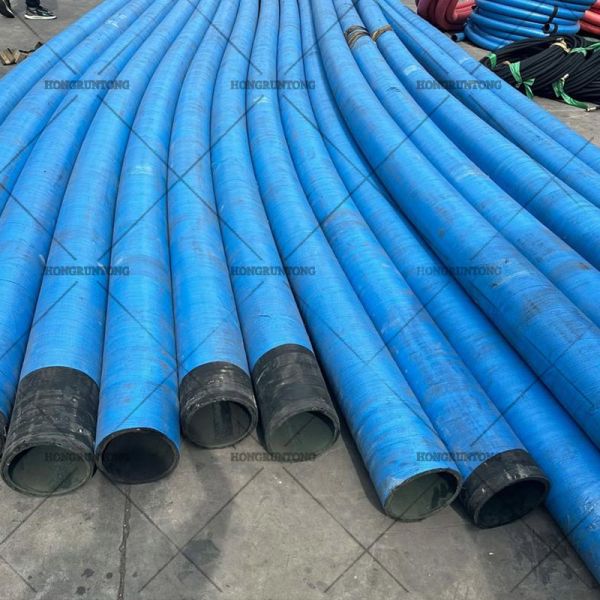

Marine Dredging Hose Weather Resistant High Tensile Long Lifespan
Product Overview
Hongruntong Marine Dredging Rubber Hose is specially engineered for large-scale dredging operations, hydraulic engineering systems, and heavy-duty slurry transportation projects requiring high durability and long-term operational stability. The hose is manufactured using premium synthetic rubber materials, reinforced textile layers, and high-strength steel wire reinforcement to ensure reliable performance under continuous pressure and abrasive working conditions.
The hose is designed for transferring highly abrasive materials including sand, gravel, sludge, mud, sediment, tailings, and industrial slurry. The inner lining adopts advanced wear-resistant rubber technology that minimizes internal erosion caused by continuous high-speed particle movement. The outer cover provides strong protection against seawater corrosion, UV radiation, ozone exposure, and mechanical impact, making the hose suitable for harsh marine and industrial environments.
Case Study
Coastal infrastructure dredging project for international airport expansion: An international airport expansion project in Southeast Asia required large-scale coastal dredging and land reclamation to support construction of new runway and terminal infrastructure. The project involved continuous transportation of dredged sand and sediment from offshore excavation zones to reclamation areas operating under high-capacity pumping conditions.
The original hose system experienced severe internal abrasion, unstable pressure performance, and repeated maintenance interruptions caused by long-distance slurry transfer and continuous heavy-duty operation. These issues affected construction schedules and increased operational costs during critical development stages. Hongruntong Marine supplied customized Dredging Rubber Hoses featuring reinforced pressure layers, high-abrasion-resistant inner linings, and corrosion-resistant outer covers specifically designed for large-scale reclamation engineering.
After installation, the pumping system achieved more stable slurry transportation and improved operational efficiency across the reclamation network. Hose durability increased significantly, reducing replacement frequency and minimizing maintenance downtime. The contractor reported improved project continuity and more reliable pumping performance throughout the airport expansion construction period.
Specifications
| Name |
Dredging Rubber Hose |
| Nominal Bores |
From 150mm (6") to 1200mm (47") |
| Length |
Up to 11.8 Metres (38ft) |
| Working Pressure |
Up to 20 bar |
| Safety Factor |
4:1 |
| Flange Options |
Fixed, Swivel, Double-Flange and Built-in-Nipple Designs |
| Features |
Heavy-Duty Robust Construction Designed to Handle Large Dredged Particles Hoop-Ring or Spring-Wire-Helix Construction for Flexibility or Full Vacuum During Service Tailor-Made Designs, Including Self-Floater, Suction Dredge Hose and Flexible Discharge Hoses Suitable for Slurries Containing Rock, Shell and Coral |
Technical Data
| Model |
I.D. (inch) |
I.D. (mm) |
W.P. (bar) |
B.P. (bar) |
Min Bending Radius(mm) |
Wear Layer Thickness (mm) |
Length (m) |
| HM-DHP150 |
6 |
150 |
5-10 |
15-30 |
8D |
10-20 |
11.8 |
| HM-DHP200 |
8 |
200 |
5-10 |
15-30 |
8D |
10-20 |
11.8 |
| HM-DHP250 |
10 |
250 |
5-10 |
15-30 |
8D |
10-20 |
11.8 |
| HM-DHP300 |
12 |
300 |
10-20 |
30-60 |
12D |
12-25 |
11.8 |
| HM-DHP350 |
14 |
350 |
10-20 |
30-60 |
12D |
12-25 |
11.8 |
| HM-DHP400 |
16 |
400 |
10-20 |
30-60 |
12D |
12-25 |
11.8 |
| HM-DHP450 |
18 |
450 |
10-20 |
30-60 |
12D |
12-25 |
11.8 |
| HM-DHP500 |
20 |
500 |
10-20 |
30-60 |
12D |
12-25 |
11.8 |
| HM-DHP600 |
24 |
600 |
15-20 |
45-60 |
15D |
20-30 |
11.8 |
| HM-DHP650 |
26 |
650 |
15-20 |
45-60 |
15D |
20-30 |
11.8 |
| HM-DHP700 |
28 |
700 |
20-25 |
60-75 |
15D |
30-50 |
11.8 |
| HM-DHP750 |
30 |
750 |
20-25 |
60-75 |
15D |
30-50 |
11.8 |
| HM-DHP800 |
32 |
800 |
20-25 |
60-75 |
15D |
30-50 |
11.8 |
| HM-DHP850 |
34 |
850 |
20-25 |
60-75 |
15D |
30-50 |
11.8 |
| HM-DHP900 |
36 |
900 |
25-30 |
75-90 |
15D |
30-50 |
11.8 |
| HM-DHP1000 |
40 |
1000 |
25-30 |
75-90 |
15D |
50-75 |
11.8 |
| HM-DHP1100 |
44 |
1100 |
25-30 |
75-90 |
15D |
50-75 |
11.8 |
Product Features
- Heavy duty wear resistant inner construction: The inner tube is manufactured using specially formulated rubber compounds designed for extreme abrasion environments involving continuous transportation of sand, gravel, sediment, and slurry materials. The structure effectively reduces internal erosion caused by high-speed particle flow and extends hose lifespan during heavy-duty operation.
- High strength reinforcement for stable pressure control: The hose adopts a multi-layer reinforcement structure combining high-tensile textile cords and steel wire spirals to maintain dimensional stability under fluctuating pressure conditions. This design reduces deformation, minimizes structural fatigue, and improves operational safety during continuous pumping operations.
- Corrosion resistant protection for marine engineering: The outer cover is engineered using weather-resistant rubber materials that resist seawater corrosion, UV exposure, ozone aging, and external abrasion. This protective structure helps maintain hose integrity during long-term operation in offshore and coastal engineering environments.
- Optimized flexibility for efficient installation and operation: The hose maintains excellent flexibility while preserving structural strength, allowing efficient installation and stable operation in floating pipelines, reclamation systems, and mobile dredging equipment.
Applications
- Coastal protection and reclamation projects: The hose is widely used in coastal land reclamation and shoreline protection systems for transporting dredged sand and sediment materials.
- Infrastructure and airport expansion dredging: In major infrastructure projects such as airport and port expansion, the hose is used for slurry transfer between dredging zones and reclamation areas.
- Industrial and mining slurry transportation: The hose is also suitable for industrial pumping systems and mining slurry transportation involving abrasive materials and high-density sediment mixtures.
Why Choose Hongruntong Marine
- Professional heavy duty hose manufacturing expertise: Specialized in manufacturing industrial dredging hose systems for marine engineering, reclamation projects, mining operations, and hydraulic infrastructure systems.
- Advanced quality control and production standards: Modern production lines with strict manufacturing procedures covering raw material inspection, reinforcement integration, pressure testing, and final product verification.
- Flexible customization for engineering requirements: Customized hose solutions according to project specifications including diameter, pressure level, reinforcement structure, flange configuration, and operational environment.
- Reliable international service and project support: Technical consultation, export coordination, packaging support, and after-sales service for global engineering contractors and industrial customers.
Frequently Asked Questions
What industries commonly use this hose?
It is widely used in dredging, coastal engineering, mining, reclamation, port construction, and industrial slurry transportation systems.
Can it handle abrasive materials continuously?
Yes, the hose is specifically designed for continuous transportation of highly abrasive slurry and sediment materials.
Is it suitable for offshore environments?
Yes, the hose outer cover provides strong resistance against seawater corrosion and harsh marine weather conditions.
Can customized specifications be provided?
Yes, customized size, pressure rating, flange type, and reinforcement structure are available according to project requirements.
What are the main operational advantages?
The hose offers long service life, stable pressure performance, reduced maintenance frequency, and improved pumping efficiency under heavy-duty operation.
