Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment
Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment
Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment
Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment
Specifications
Brand Name :
JIN MENG
Model Number :
JMD350
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$100000$300000
Payment Terms :
T/T
Supply Ability :
20sets/year
Delivery Time :
30days
Packaging Details :
Containers
Name :
River cleaning equipment small dredger
Type :
Small cutter suction dredger
Engine Power :
522kw
Power Source :
Diesel
Discharge Pipe Diameter :
350mm
Size :
14inch
Suction Pipe Diameter :
400mm
Material :
Steel
Application :
River Dredging
Pump Capacity :
200m3/h
Description
Narrow River Cleaning Equipment Small Sand Dredge 522kw 14inch 200m3/H
Product Specifications
Attribute Value
Name River cleaning equipment small dredger
Type Small cutter suction dredger
Engine Power 522kw
Power Source Diesel
Discharge Pipe Diameter 350mm
Size 14inch
Suction Pipe Diameter 400mm
Material Steel
Application River Dredging
Pump Capacity 200m3/h
Manufacturer Overview

Weifang Jin Meng Dredger Co.,Ltd. is a professional manufacturer specializing in river cleaning equipment and small dredgers. Located in Qingzhou, Shandong Province, we have comprehensive capabilities in research, design, production, and sales.

Our company features:

  • Professional R&D department and CAD design center
  • Dedicated quality control and after-sales service teams
  • Over 500 employees including senior engineers and technical specialists
  • Products exported worldwide to over a dozen countries
Product Description

Our river cleaning equipment small dredger is available in self-propelled or non self-propelled configurations with portable design. The hull features a dismantle and box-like structure for easy transportation and assembly at worksites.

Key features include:

  • Flexible power options: electric system or diesel engine
  • Easy transportation via road, rail, or container
  • Simple installation and relocation between work sites
Technical Specifications: JMD350 Model
Dredging Pump Dia. Discharge pipe: 350mm
Head 55m
Max. Working capacity 260m3/h
Discharge distance 1500m
Dredging depth 8m
Diesel Engine 522KW Cummins
Generator 12KW WEICHIA
Total power 534KW
Oil Consumption 80L/H
Hull Dimension 23m×5.2m×1.5m
Hydraulic system VICKERS America (Joint-venture)
Operating system SIEMENS PLC (Imported from Germany)
Cutter Head Φ1300mm crown-like, 60KW power
Features & Applications

This compact dredger can easily pass under low bridges, with dismountable control and rest rooms. The three-pontoon design (main pontoon plus two side pontoons) provides stability and easy assembly.

Ideal for:

  • Various water environments: sea, port, lake, and river
  • Multiple soil conditions: hard soil, sand, sludge, clay, mud

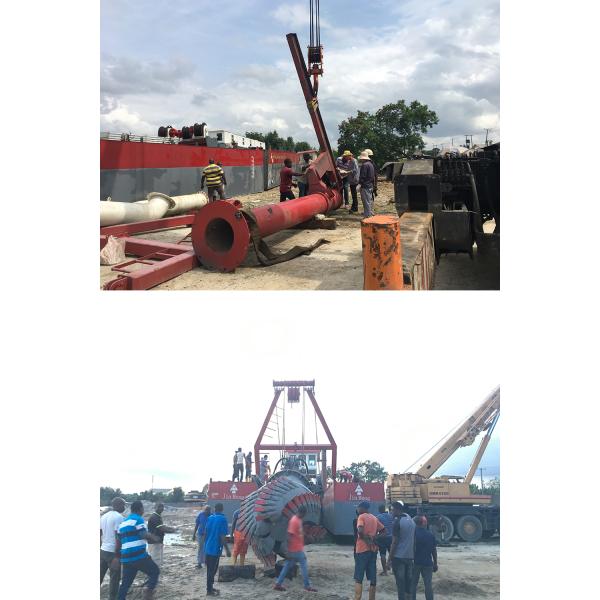

Product Gallery
Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment Small Sand Dredge 522kw 14inch 200m3/H Narrow River Cleaning Equipment
