1500m3 Small Dredger Equipment 560kw Small River Dredging Machine
1500m3 Small Dredger Equipment 560kw Small River Dredging Machine
1500m3 Small Dredger Equipment 560kw Small River Dredging Machine
1500m3 Small Dredger Equipment 560kw Small River Dredging Machine
Specifications
Brand Name :
JIN MENG
Model Number :
JMD350
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$100000-$300000
Payment Terms :
T/T
Supply Ability :
20sets/year
Delivery Time :
30days
Packaging Details :
Container
Name :
1500m3 Small dredger equipment
Type :
Hydraulic cutter suction dredger
Power :
560kw
Diesel engine :
Cummins
Water flow :
1500m3
Depth :
10m
Discharge distance :
1200m
Hydraulic valve :
Rexroth
Pump :
Shijiazhuang
Control :
SIEMENS PLC
Description
1500m³ Small Dredger Equipment 560kw For Small River Dredging
Product Specifications
Attribute Value
Name 1500m³ Small dredger equipment
Type Hydraulic cutter suction dredger
Power 560kw
Diesel engine Cummins
Water flow 1500m³
Depth 10m
Discharge distance 1200m
Hydraulic valve Rexroth
Pump Shijiazhuang
Control SIEMENS PLC
About Weifang Jin Meng Dredger Co., Ltd.
1500m3 Small Dredger Equipment 560kw Small River Dredging Machine

Weifang Jin Meng Dredger Co., Ltd. is a professional dredger manufacturer located in Qingzhou, Weifang City, Shandong Province. Specializing in small dredger equipment since 2000, we offer competitive pricing and serve markets across Africa, the Middle East, Southeast Asia, South America, and the United States. We look forward to establishing long-term partnerships with our clients.

Product Description
1500m3 Small Dredger Equipment 560kw Small River Dredging Machine

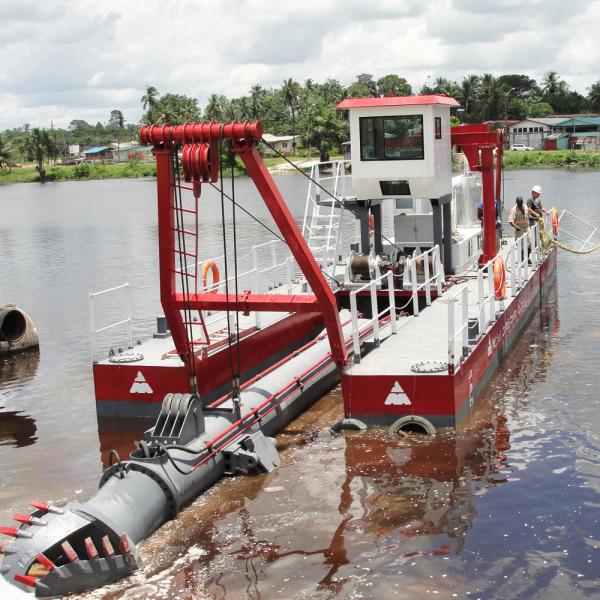

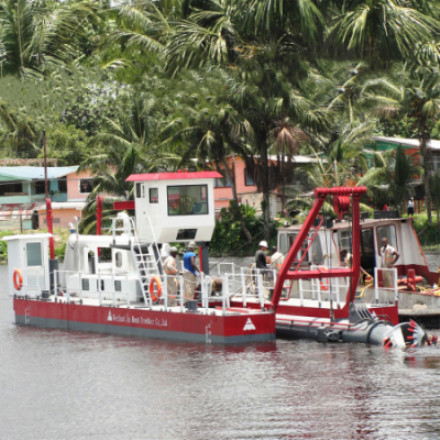

Our 1500m³ small dredger equipment is a hydraulic-controlled, assembled river cutter dredger designed for river channel dredging, canal maintenance, and water storage projects. The modular design features a dismantle-type box structure for easy assembly at worksites and convenient transportation by road, rail, or container.

Technical Specifications
Component Specification
Dredging Pump WARMAN
Discharge pipe diameter 350mm
Head 55m
Max. Working capacity 260m³/h
Discharge distance 1500m
Dredging depth 8m
Diesel Engine 522KW Cummins
Generator 12KW WEICHIA
Total power 534KW
Oil Consumption 80L/H
Hull Dimensions (LOA×W×D) 23m×5.2m×1.5m
Key Features
1500m3 Small Dredger Equipment 560kw Small River Dredging Machine
  • Modular design for easy transportation and assembly
  • Dismountable operator cabin for low bridge clearance
  • Hydraulic-driven dredging devices with centralized control
  • Three-pontoon construction (main + two side pontoons)
  • Suitable for various soil conditions including hard soil, sand, sludge, and clay
Equipment Details
1500m3 Small Dredger Equipment 560kw Small River Dredging Machine

Detachable Structure: Designed for easy transport between worksites.

Shijiazhuang Pump: Features high-wear resistant alloy Cr27 components and NSK anti-friction bearings for extended service life.

Cutter Head: Equipped with 5 blades (8 teeth per blade) made of high-chromium material for wear resistance, powered by hydraulic motor with lubrication seal-in units.

Frequently Asked Questions
Do your small dredger equipment have a test before ex-factory?
Yes, each unit undergoes thorough testing before delivery. We invite clients to inspect performance before shipment to ensure quality and save time/costs at the worksite.
1500m3 Small Dredger Equipment 560kw Small River Dredging Machine
What kind of service will you supply after sales?
We provide two experienced engineers for equipment assembly and operator training at your worksite. With supporting equipment, assembly typically completes within 10 days with one week of training..
