100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge
100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge
100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge
100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge
Specifications
Brand Name :
JIN MENG
Model Number :
JMD250
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$100000-$200000
Payment Terms :
T/T
Supply Ability :
20sts/year
Delivery Time :
60days
Packaging Details :
Containers
Name :
Pond dredging small cutter head dredger equipment
Type :
Small cutter suction dredger
Application :
Pond dredging
Dredging Capacity :
100m3/h
Engine Power :
218HP
Discharge Pipe Diameter :
150mm
Size :
Mini
Suction Pipe Diameter :
300mm
Cutter Head Diameter :
0.9m
Description
100m³/H Cutter Head Small Dredging Equipment for Pond Dredging Mini Suction Dredge
Attribute Value
Name Pond dredging small cutter head dredger equipment
Type Small cutter suction dredger
Application Pond dredging
Dredging Capacity 100m³/h
Engine Power 218HP
Discharge Pipe Diameter 150mm
Size Mini
Suction Pipe Diameter 300mm
Cutter Head Diameter 0.9m
Mini Small Cutter Head Dredger Equipment for Pond Dredging
Company Introduction

Weifang Jin Meng Dredger Co., Ltd. located in Qingzhou, Weifang City and Shandong Province, is a specialized manufacturer of pond dredging equipment. Our company focuses on research, design, production, and sales of high-quality dredging solutions.

Our facilities include:

  • Professional R&D department
  • CAD drawing design center
  • Quality control department
  • Dedicated after-sales service team

With over 500 employees, our team includes 5 senior engineers, 16 machinery designers, 8 quality control engineers, and 10 after-sales service engineers.

Product Description

Our pond dredging equipment features:

  • Available in self-propelled or non-self-propelled configurations
  • Portable cutter suction design with dismantle and box-like structure
  • Easy assembly at worksite with road, rail, and container transport options
  • Flexible power options: electric system or diesel engine
  • Standard equipment includes traversing device, cutter ladder lifting device, spuds, and deck crane

The dredging process involves the cutter head cutting underwater sediment into slurry, which is then pumped through pipelines to the discharge location.

Technical Specifications
JMD250 Pond Dredging Small Cutter Head Dredger Equipment
Dredging Pump Dia. Discharge pipe: 250mm
Head 35m
Max. Working capacity 120m³/h
Discharge distance 800m
Dredging depth 6m
Diesel Engine 150KW | YUCHAI
Generator 10KW | WEICHAI
Total power 160KW
Oil Consumption 24L/H
Hull Dimension LOA*W*D: 16m×4.72m×1.26m
Hydraulic system Hydraulic pump: VICKERS America (Joint-venture)
Cutter Head Crown-like | Φ900mm | Power: 30KW
Key Features
  • Hydraulic controlled, assembling cutter head design
  • Ideal for pond, canal, and water storage dredging
  • Modular three-pontoon construction for easy assembly
  • Dismountable operator cabin for bridge clearance
  • Road and rail transportable when disassembled
  • Multiple positioning options: anchor casting pole or trolley
Factory and Workshop
100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge 100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge
Transportation
100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge
Pond dredging small cutter head dredger equipment transportation by trucks

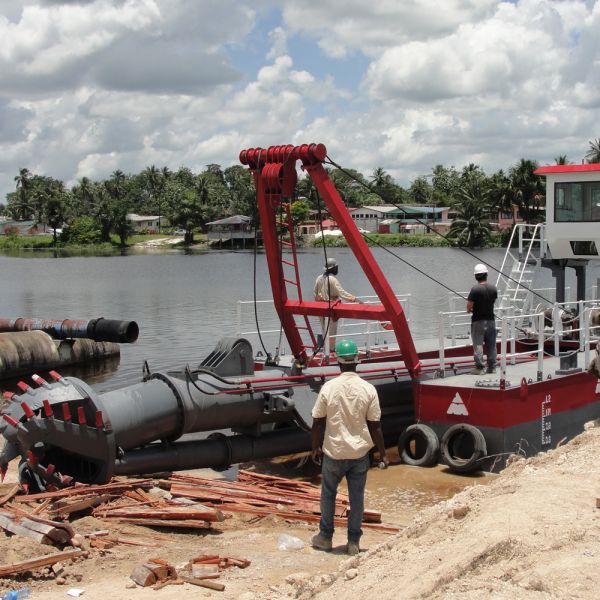

Working Site
100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge 100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge
JMD250 pond dredging small cutter head dredger equipment working Site
Assembly and Installation
100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge
Pond dredging small cutter head dredger equipment working site assembly installation
Contact Us

Welcome to visit our facility for more details about our small dredger equipment.

100m3/H Cutter Head Small Dredging Equipment For Pond Mini Suction Dredge

Please feel free to contact our team for inquiries or additional information.
