High Quality YWKT-1D Pressure Type Liquid Level Transmitter Gas Cylinder Type Liquid Level Transmitter
High Quality YWKT-1D Pressure Type Liquid Level Transmitter Gas Cylinder Type Liquid Level Transmitter
Specifications
Brand Name :
XINYI
Model Number :
YWKT-1D
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Power Supply Voltage :
24(V)
Operating Temperature :
-40°C to 85°C
Supply Voltage :
DC 24V(12V~32V)
Range :
-37.4-609Kpa
Pressure Type :
Gauge,negative,absolute
Certify :
Exida and TUV SIL 2 / SIL3 Certified
Measurement Span :
0~62.2kPa
Place Of Origin :
Shanghai,China (Mainland)
Process Thread :
1/4NPT, 1/2NPT, M20*1.5
Case Material :
stainless steel
Diaphragm Material :
316L Stainless Steel
Stability :
+-0.2%F.S/Year
Description

High Quality YWKT-1D Pressure Type Liquid Level Transmitter Gas Cylinder Type Liquid Level Transmitter

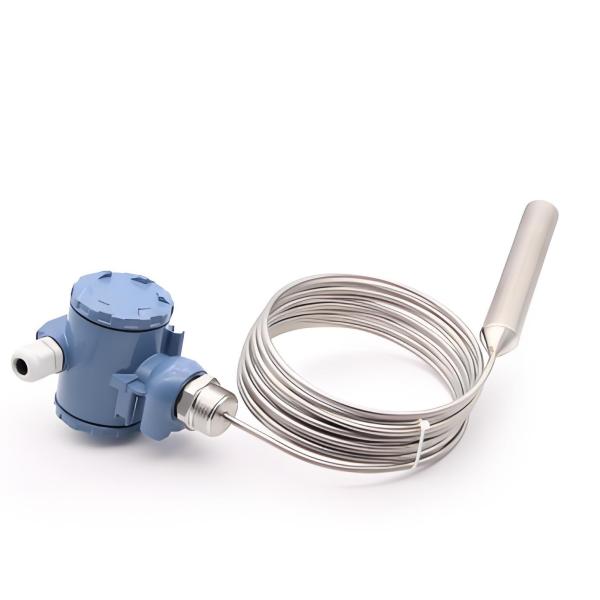

The YWKT-1D pressure type liquid level transmitter (i.e. gas collection cylinder type liquid level transmitter) consists of a stainless steel probe, a stainless steel capillary tube, and an electronic transmitter unit. It can be directly put into the measured medium for use. The sensor part and signal processing circuit are inside the junction box. The gas in the gas collection cylinder that is put into the liquid body comes into contact with the medium, and the pressure is transmitted to the sensor (OEM pressure sensor) through the sealed gas in the gas guide tube, avoiding direct contact between the sensor and the measured medium, effectively solving the problem of measuring the liquid level of high-temperature corrosive liquids and sewage. It is particularly suitable for measuring high temperature, corrosive liquids, and sewage, ensuring its wide application, especially for liquid level measurement of high-temperature liquid media.


Characteristics of pressure type liquid level transmitter
√ Anti condensation
√ High temperature resistance
√ Good long-term stability


Measurement medium High temperature liquid, corrosive liquid
Range of measurement 0～2m…20m
Power supply 24VDC
Output signal 4～20mA
Medium temperature 0～200℃
Ambient temperature 0～85℃
Compensation temperature 0～80℃
Material All Stainless Steel
Comprehensive accuracy 0.3,0.5 level
Zero temperature drift ±0.03%FS/℃
Sensitivity temperature drift ±0.03%FS/℃
Long term stability ≤0.2%FS/year
Protection grade IP65
