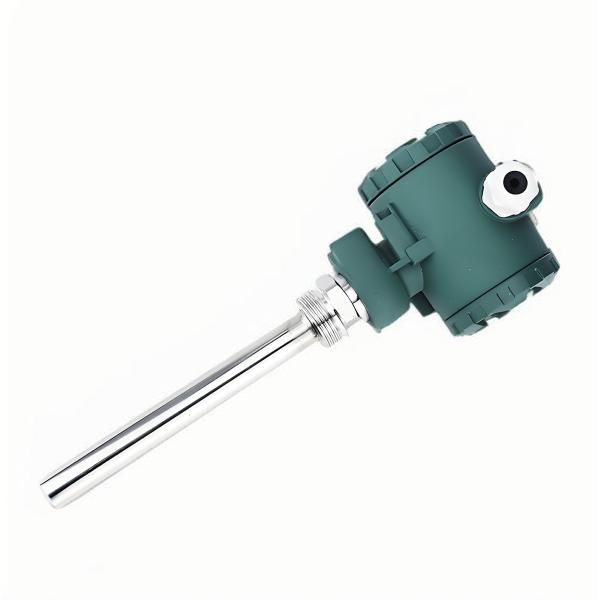

YWKT-1C Plug-in Level Transmitter 4-20mA IP65 316L Stainless Steel
YWKT-1C Plug-in Level Transmitter 4-20mA IP65 316L Stainless Steel
Specifications
Brand Name :
XINYI
Model Number :
YWKT-1C
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
carton
Selling Units :
Single item
Protection Class :
IP65
Warranty :
12 months
Secondary Variable :
Static Pressure
Materials :
Gas or liquid compatible with ceramic
Wetted Materials :
316L stainless steel
Operating Temperature :
-40 to 85°C
Vacuum Resistance :
10 mbar (0.15 psi)
Measurement Range :
0-1000 kPa
Pressure Port :
G1/4, G1/2 1/4NPT, 1/2NPT and others
Pressure Sensing Element :
Piezoresistive
Over Pressure Capacity :
15 times
Pressure Type :
Gauge /Absolute / Sealed Pressure
Description

China YWKT-1C Plug-in Level Transmitter With 4-20 MA Level Measurement


The YWKT-1C liquid level transmitter consists of a fully sealed isolation membrane filled oil level sensor and an instrument specific circuit, which has the advantages of high measurement accuracy, good stability, long service life, and easy installation. Adopting a unique process sealing structure, it has good anti leakage performance and is reliable for long-term immersion in liquids.


Product Features

1. Integrated structure without external adjustment;

2. The protection level of the transmitter casing is IP68, and the protection level of the junction box casing is IP65;

3. The product has high cost-effectiveness, high reliability, and can be used stably for a long time;


Supply Voltage 18~36VDC
Output 4~2 0 m A
Accuracy 0.1%.FS,0.25%FS,0.5%FS

Range

 0~1 m to 100 m
Medium temperature - 40~+85°C
Ambient temperature - 10°C~+60°C
Drift ≤0.25%FS
Temperature compensation 0~50°C
External protection IP65
Explosion proof grade dll CT6
Sensor length Cable type with a maximum length of 120m
Display header LCD digital display, LED digital display
