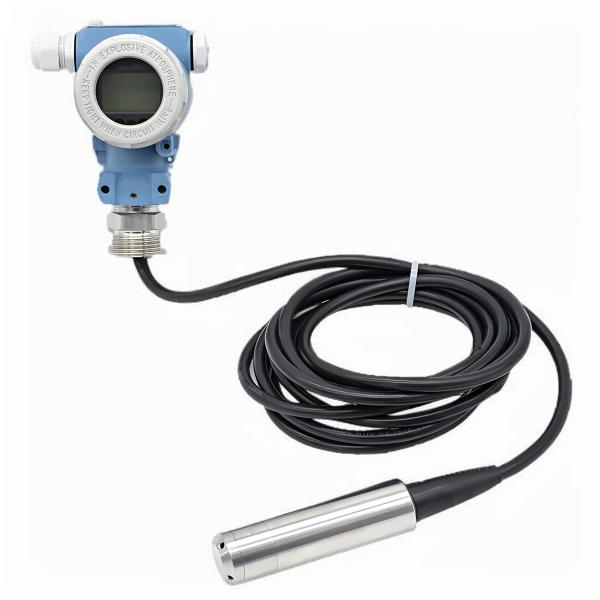

YWKT-1B Liquid Level Transmitter - SS304/SS316, 4-20mA Output
YWKT-1B Liquid Level Transmitter - SS304/SS316, 4-20mA Output
YWKT-1B Liquid Level Transmitter - SS304/SS316, 4-20mA Output
YWKT-1B Liquid Level Transmitter - SS304/SS316, 4-20mA Output
Specifications
Brand Name :
XINYI
Model Number :
YWKT-1B
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Overpressure Limit :
2 times the maximum range
Pressure Range :
-0.1....0~0.01... ~100MPa
Min Range :
10kpa
Overload Pressure :
300%FS
Thread :
G1/4, G1/2 1/4NPT, 1/2NPT and others
Supply Voltage :
25(V)
Process Connection :
1/4" NPT
Ambient Temperature :
- 40-85 ℃
Long Term Stability :
±0.2% of URL for 5 years
Wireless Range :
Internal antenna (225m)
Material :
SS304 SS316
Description

YWKT-1B Type Input Type Liquid Level Transmitter Input Type Liquid Level Gauge


The YWKT-1B series liquid level transmitter adopts a high-precision silicon piezoresistive isolation membrane oil filled core as the signal measurement element. Based on the mathematical model relationship between the pressure, density, and liquid level of the measured liquid, the liquid level pressure proportional to the depth of the liquid level is measured by the liquid level sensor, and converted into a standard signal output through a signal processing circuit. The product has the characteristics of high accuracy, small size, and good anti leakage performance. It is equipped with a dedicated gas cable, advanced process sealing technology, reliable dedicated amplification circuit, and precise temperature compensation technology. Long term immersion in liquids ensures reliable and stable operation.


Product Features

◆ Wide measurement range, integrated structure, the sensor part immersed in the liquid is a fully sealed stainless steel structure, and both the sensor and amplification circuit are housed in a stainless steel fully sealed housing, with an aluminum cast junction box,

◆The protection level is IP68;

◆ Various forms of output signals;

◆ Multiple protection, good anti leakage performance, strong anti electromagnetic interference ability;

◆ The intrinsically safe explosion-proof products meet the requirements of national explosion-proof standards and have obtained explosion-proof certificates.


Range of measurement 0~1m．．．~200m
Permitted Overload Less than or equal to 1.5 times the rated range
Accuracy ±0.25%

Operation temperature

 20℃~80℃
Storage temperature -40℃~120℃
Power supply 15～30VDC
Output signal 4～20mA 0～10/20mA 0/1～5VDC
Shell material Aluminum casting, stainless steel
DIAPHRAGM MATERIAL

316L
O-ring seal

VITON
