Specifications
Brand Name :
XINYI
Model Number :
YW-130KF
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Work Condition :
On site or laboratory
One Piece Packing :
Paper box
Protection Rating :
IP65
Medium :
Liquids or gases compatible with 316LSS
Range :
-1-5 bar
Repeatability :
0.25%~0.5%
Transport Package :
Standard Export Packing with Carton
Customized :
Customized
Thread :
G1/4 Male and female All can be
Dispaly :
with LCD or without LCD display
Work Temperature :
- 40-100 ℃
Test Medium :
Air oil water and so on
Description

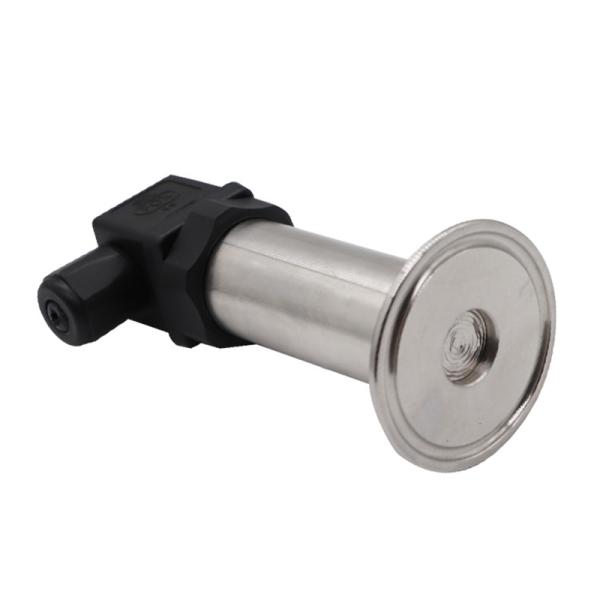

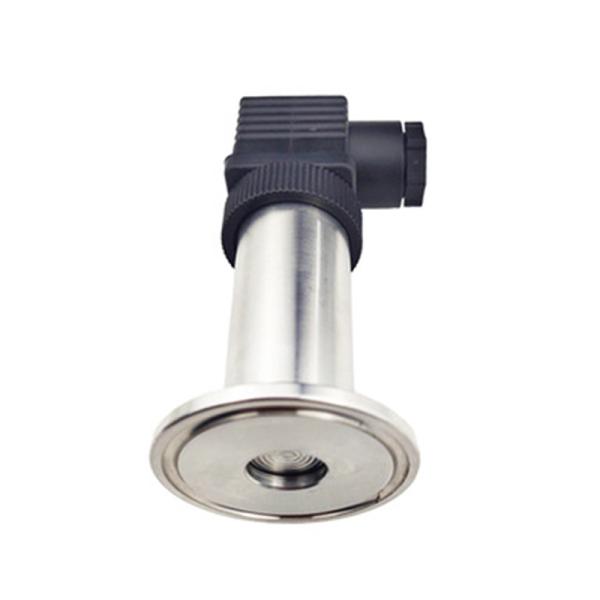

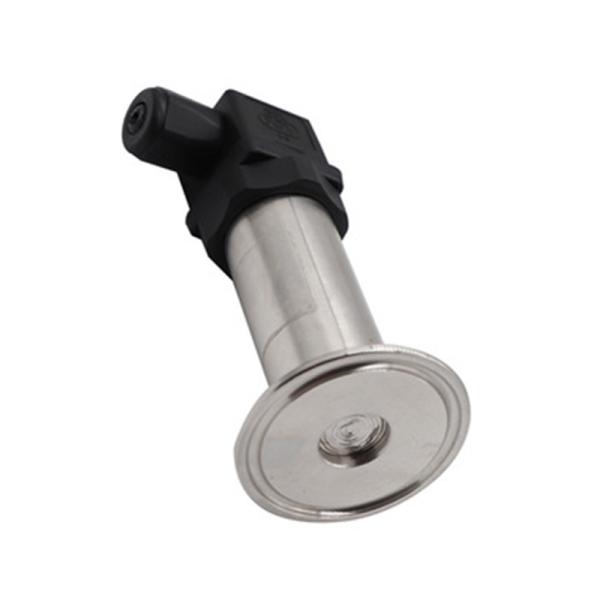

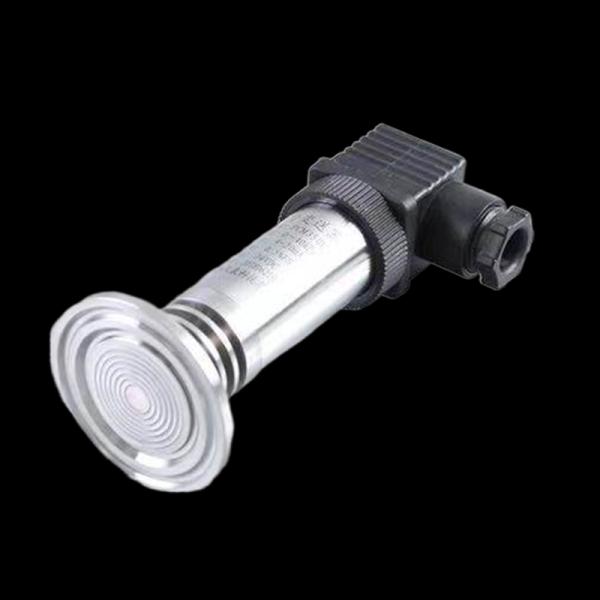

YW-130KF Stainless Steel Sanitary Flat Membrane Pressure Transmitter Pressure Sensor


The sanitary pressure transmitter adopts a clamp type flush membrane pressure sensor and an intelligent digital processing circuit to convert the front-end pressure signal into standard current, voltage or digital signal. The intelligent product can be directly connected to computers, secondary instruments, etc. for data remote transmission.


1. Sanitary grade design

Material safety: Adopting 316L stainless steel fully welded structure, the surface is polished to Ra<0.8 μ m, which meets hygiene standards such as FDA and EHEDG, and has no hygiene dead corners；

Easy to clean and disinfect: Supports CIP/SIP online cleaning and sterilization (high temperature resistance up to 150 ℃), clamps or threaded interfaces for quick disassembly；

2.High performance measurement

Flat membrane structure: Flat isolation membrane design, avoiding medium residue, suitable for viscous and easily crystallized media (such as slurry, food sauce)；

High precision: using imported silicon micro melting core or ceramic capacitive sensors, with an accuracy of ± 0.1% FS to ± 0.5% FS and long-term stability of ≤ 0.1% FS/year;

Wide range: covering -100kPa~60MPa, range ratio 100:1, response time ≤ 1ms；


Range 0MPa~0.035 MPa┅3.5MPa
Overload 10 times full range pressure
Power supply 12～28V DC
Display LCD
Load resistance ≤(U-12)/0.02Ω
Protection grade IP65
Compensation temperature -10℃~80℃
Operation temperature -40℃~125℃
