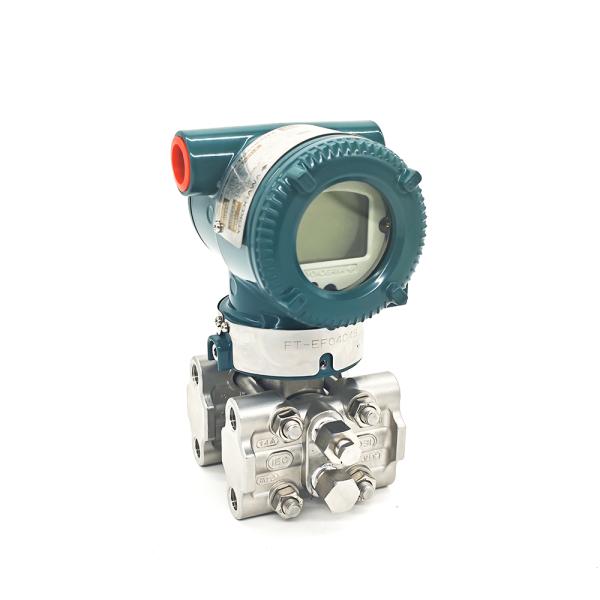

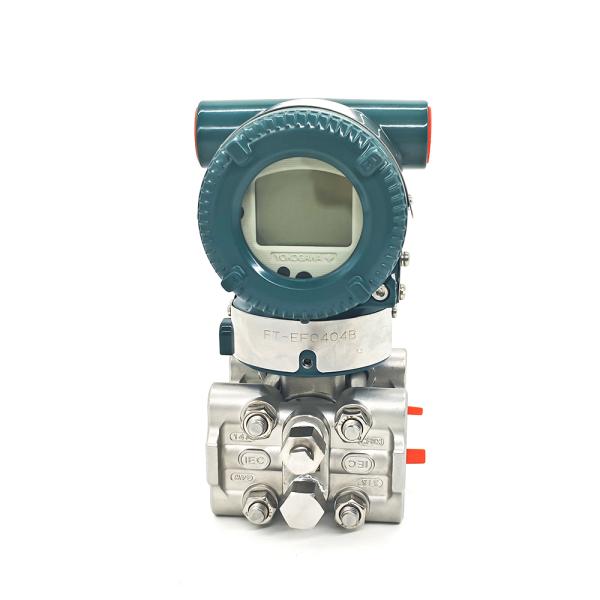

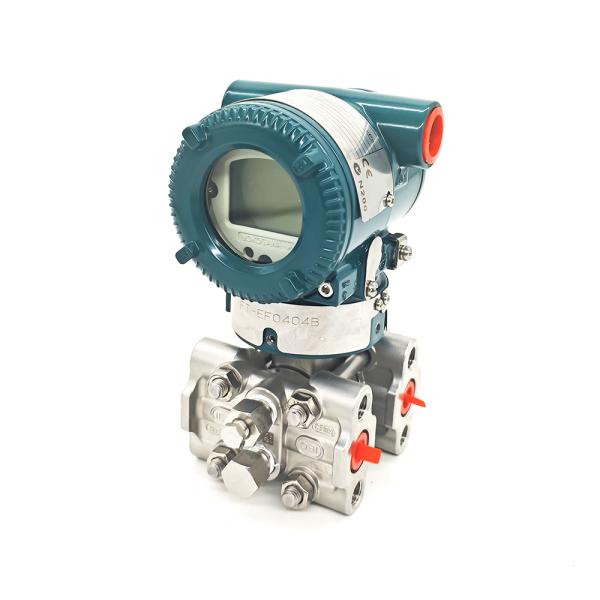

EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
Specifications
Brand Name :
Yokogawa
Model Number :
EJX910A
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
carton
Mounting Type :
Wall Mount
Measurement Medium :
Gas liquid vapor
Certify :
Exida and TUV SIL 2 / SIL3 Certified
Electrical Connection :
M20*1.5 1/4NPT 1/2NPT
Port Size :
1/4 NPT
Process Pressure :
10-600bar
Usage :
Industrial Usage
Best Accuracy :
0.1%
Sensor Material :
stainless steel 316
Power Supply :
24 VDC
Pressure Port :
G1/4, G1/2 1/4NPT, 1/2NPT and others
Pressure Range :
0.3...1000bar
Shell Material :
Aluminum alloy
Protection Level :
IP65
Description

EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter


The EJX910A high-performance multivariable transmitter adopts a monocrystalline silicon resonant sensor, which can output measurements of differential pressure, static pressure, process temperature, and calculate mass flow rate. Supports multiple protocols such as HART, FOUNDATION fieldbus, and RS485 Modbus.


Core functions:

1. Multivariate measurement
Integrated differential pressure (± 0.04% accuracy), static pressure (± 0.1% accuracy), and external temperature (± 0.9 ° F accuracy) measurement, achieving high-precision data acquisition through a single sensor；

2.Quality flow support
Compatible with primary equipment such as orifice plates, nozzles, and Venturi tubes, with extended support for averaging tubes and conical flow meters under the HART7 protocol. Quality flow accuracy reaches ± 1.0%, with built-in full compensation algorithm and integration function (± 1.0% accuracy)；

3.Communication and output
Supports HART 5/7, FOUNDATION fieldbus, and RS485 Modbus protocol, synchronously outputs 4-20mA signals and pulse/contact signals, supports long bit numbers (32 characters) and enhanced burst mode;


Technical advantages:

Reliability: Passed TUV SIL 2/3 safety certification, with excellent long-term stability;
Intelligence: Supporting software EJXMVTool ™ Real time configuration of traffic parameters and dynamic calculation of traffic coefficient optimization results;
Scalability: The fieldbus version supports functional block configuration (such as PID control) and software download functionality;


Mass flow ±1.0％
Differential pressure ±0.04％
Static pressure (absolute) ±0.1％
Process temperature ±0.9°F
Differential pressure ± 0.1% URL/15 years
Range of measurement ±50~100,000 Pa
Accuracy ±0.04%
Output signal 4~20mA

EJX910A High-performance Multivariable Transmitter Yokogawa Intelligent Pressure Transmitter
