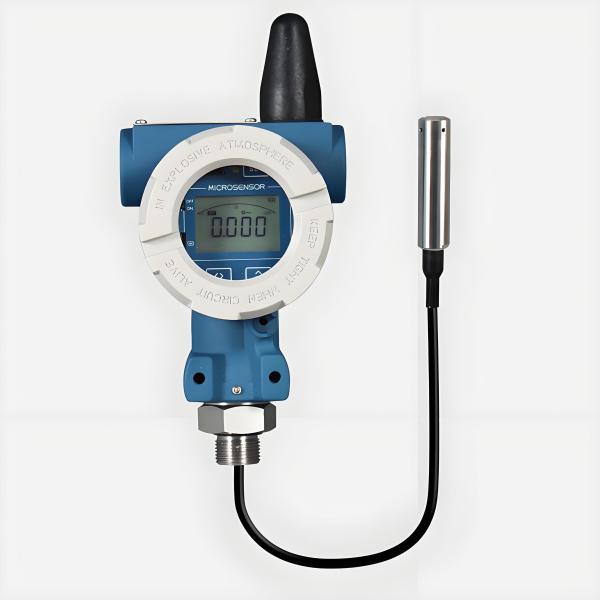

YWKT-150 Intelligent Wireless Liquid Level Transmitter Equipped With Wireless Communication Function
YWKT-150 Intelligent Wireless Liquid Level Transmitter Equipped With Wireless Communication Function
Specifications
Brand Name :
XINYI
Model Number :
YWKT-150
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Protection Rating :
IP67
Long Term Stability :
±0.2% of URL for 5 years
Measuring Principle :
Absolute and gauge pressure
Material :
Stainless Steel
The Process Temperature :
-40-120℃
Accessary :
U-shaped L-shaped, mounting bracket
Range :
-10Kpa-0-10Kpa
Pressure Range :
0 ~ 40MPa
Measuring Range :
0.1...0..100MPA
Description

YWKT-150 Intelligent Wireless Liquid Level Transmitter Equipped With Wireless Communication Function


YWKT-150 wireless liquid level transmitter is a low-power intelligent instrument with wireless communication function. It uses advanced industrial grade MCU as the core, high-quality sensors as the acquisition front-end, and mature GPRS network to achieve wireless transmission of on-site instrument data to the server. The instrument actively reports data at set intervals, and customers can remotely configure and view the instrument data through a web page. All uploaded and issued data are automatically saved in the database for easy query by staff in the future


Users can access instrument data by logging in to relevant websites through an internet connected PC or mobile terminal, and achieve statistical analysis of the collected data, forming reports and data curves, which are intuitive, accurate, and efficient. Based on the extensive coverage of GPRS public network, this product can detect real-time data from numerous monitoring points in a large area, such as high-level water tank level, hydrological monitoring, and so on. The main application areas of the product include water plants, hydroelectric power plants, etc.


Product Features

1. GPRS network is widely applicable in various regions and can be covered by China Mobile signal;
2. Ultra low power consumption, sleep mode as low as 15uA@12V DC；
3. Collection interval, remote setting of sending interval;
4. PC and mobile data applications;
5. Power outage alarm, real-time battery voltage prompt;


Accuracy ±0.5%FS
Operation temperature -20℃～70℃
Storage temperature -30℃～80℃
Electromagnetic compatibility GB/T 17626.2/4-2006
Vibrate ≤3g/10Hz...150Hz(IEC 60068-2-6-2007)
Pressure sensing film Stainless steel 316L
Electrical connection 5-core cable (power supply)
