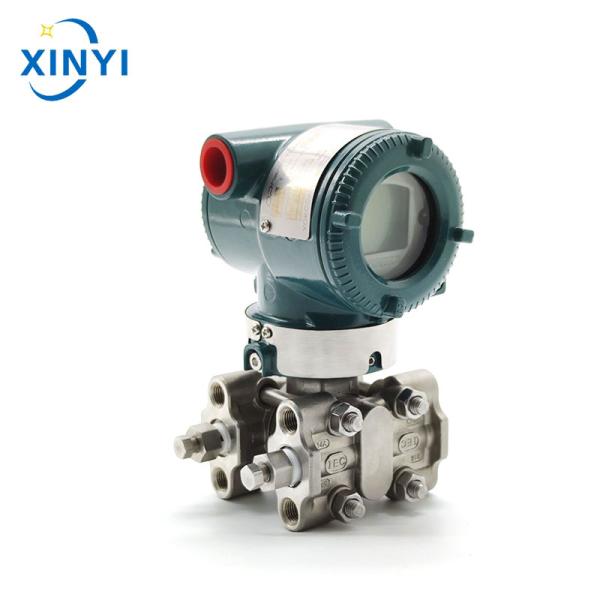

YOKOGAWA EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy
YOKOGAWA EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy
YOKOGAWA EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy
YOKOGAWA EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy
YOKOGAWA EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy
YOKOGAWA EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy
YOKOGAWA EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy
YOKOGAWA EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy
Specifications
Brand Name :
Yokogawa
Model Number :
EJA110E
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/Month
Delivery Time :
5-8 work days
Packaging Details :
carton
Static Pressure :
4, 10, 25, 32MPa
Measuring Medium :
Pressure, Level and Flow
Connection Size :
M20*1.5 mm
Customized :
Customized
Over Pressure Capacity :
15 times
Pressure Type :
Differential Pressure
Protection Rating :
IP67
Vacuum Resistance :
10 mbar (0.15 psi)
Package Gross Weight :
3.800kg
Description

EJA110E Differential Pressure Transmitter HART/FF/PROFIBUS PA ±0.055% Accuracy


The EJA110E high-performance differential pressure transmitter adopts single crystal silicon resonant sensor technology, suitable for measuring the flow, liquid level, density, and pressure of liquids, gases, or vapors. EJA110E converts the measured differential pressure into a 4-20mADC current signal output, which can measure, display, or remotely monitor static pressure. It has functions such as fast response, remote setting, and self diagnosis.

The EJA-E series products offer BRAIN, HART/HART (1-5VDC) low-power models, FF fieldbus, and PROFIBUS PA protocols. The standard configuration has passed SIL 2 security certification.


Featured Features:

1.Sensor technology: using monocrystalline silicon resonant sensors, digital measurement can automatically eliminate environmental interference such as temperature and static pressure；

2.Output signal: 4-20mA DC current signal, supporting multiple communication protocols such as HART and FF fieldbus；

3.Performance indicators: Accuracy up to ± 0.055%, response time of 90 milliseconds, SIL3 safety certification passed；

4.Self diagnostic system: Real time monitoring of equipment status to reduce maintenance downtime；

5.Remote setting: adjust parameters through communication protocol without on-site operation；

6.Wide range coverage: measuring range from 0.5kPa to 500kPa, meeting different working conditions requirements；


Measurement medium Gas liquid
Output signal 4-20(mA)
Explosion proof level CT6
Protection grade IP68
Accuracy ±0.055％
Stability ±0.1％URL/10year
Maximum working pressure 2,300 psi
Supply voltage 24(V)
Brand Name Yokogawa
