Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
Specifications
Brand Name :
TIPTOP
Model Number :
Drilling fluid manifold
Certification :
API
Place of Origin :
China
MOQ :
1 set
Price :
Can be negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/month
Delivery Time :
15~30 work days
Packaging Details :
Wooden case packing
Product name :
Drilling fluid manifold
Classification :
wellhead equipment
Colour :
Red
Material :
Alloy Steel
Connection :
Union or flange
Description

Oil Wellhead Equipment API Drilling fluid manifold for well drilling

Introduction:

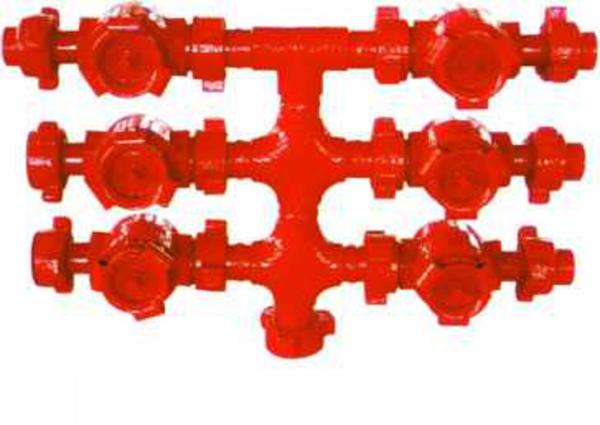

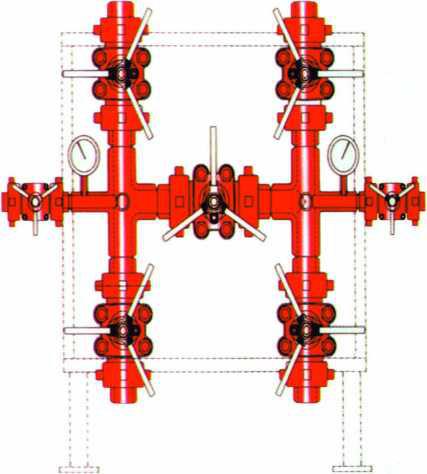

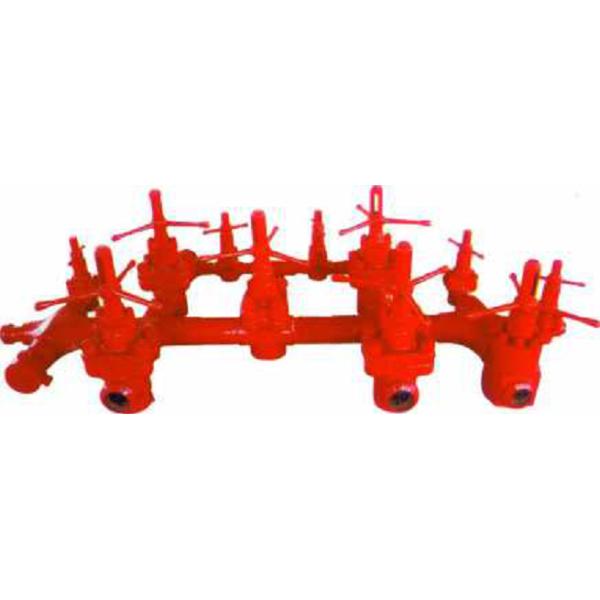

The drilling fluid manifold is composed of mud gate valve, high pressure union, tee, elbow, pressure gauge, short joint, etc.

The ground valve group adopts the goose shape tee structure, has the structure compact, the fluid resistance is small, can give full play to the power characteristic.

The valve assembly of drilling floor adopts reducing spool, which can realize the direct use of single pipe and facilitate field use.

The high pressure union is made of high strength alloy steel and heat treated.The structure can realize fast loading and unloading operation.Forged by a special die, sealed by the precision machining of the sphere, cone with the sealing ring.

The gate and seat of mud gate valve are sprayed and welded with cemented carbide, which has the characteristics of erosion resistance and corrosion resistance, greatly improving the service life of the valve, and has the characteristics of small operating torque and light opening.

The elbow, reducer, tee and spool of the manifold are cast or forged by high-strength alloy steel, the pipe wall is thickened appropriately, and the requirements of strength and corrosion resistance are fully met by good heat treatment.

Spare parts with high precision requirements are processed by special processes to ensure the quality of manufacturing;The high-pressure parts are tested for hydrostatic strength and sealing before being assembled to ensure the quality of the factory.

Main technical parameters

Rig model ZJ30, ZJ40,ZJ45,ZJ50,ZJ70 ZJ90,ZJ120
Work pressure 35MPa,52.5MPa 70MPa
Drift diameter 2”, 3”, 4”, 5”
Service medium

Oil,gas,water,mud,cement​​​
Connection type Union,flange

Well Drilling Oil Wellhead Equipment Drilling Fluid Manifold Alloy Steel Material
