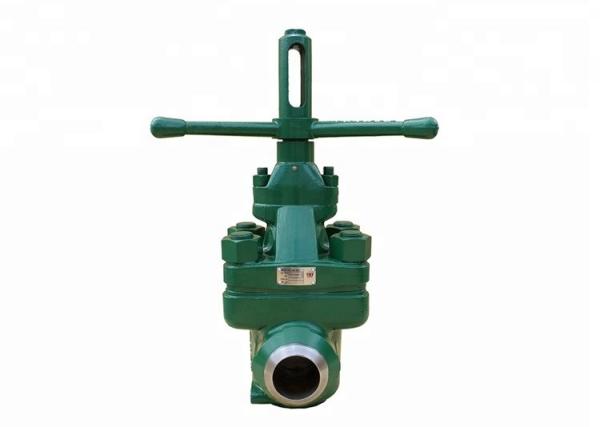

Mud Gate Valve Oil Wellhead Equipment Demco Mud Valve High Working Pressure
Mud Gate Valve Oil Wellhead Equipment Demco Mud Valve High Working Pressure
Mud Gate Valve Oil Wellhead Equipment Demco Mud Valve High Working Pressure
Mud Gate Valve Oil Wellhead Equipment Demco Mud Valve High Working Pressure
Mud Gate Valve Oil Wellhead Equipment Demco Mud Valve High Working Pressure
Mud Gate Valve Oil Wellhead Equipment Demco Mud Valve High Working Pressure
Specifications
Brand Name :
TIPTOP
Model Number :
Mud Valve
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
1000pcs per month
Delivery Time :
7-60 days
Packaging Details :
Seaworthy Wooden Box
Standard :
API 6A
Working Pressure :
5000psi, 7500psi
Product Specification Level :
PSL 1 ~ PSL 4
Performance Requirement :
PR1~PR2
Body Material :
AISI 4130/4140
Key Word :
Demco Mud Valve
Description

Oil Wellhead Equipment Component, API 6A Mud Gate Valve, Demco Valve

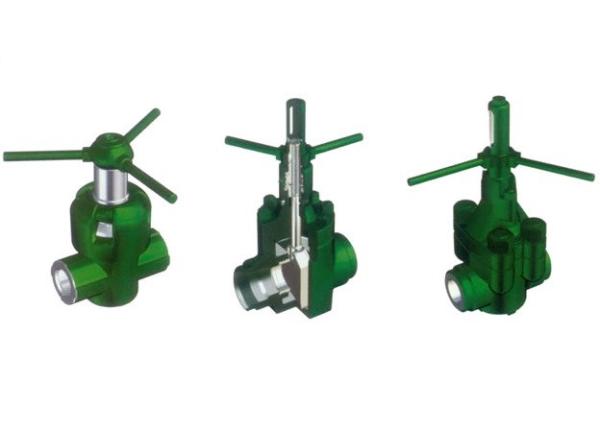

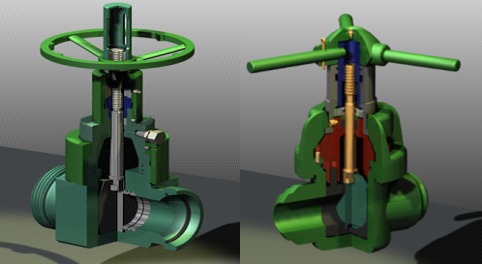

Tiptop mud valve has the features of reliability, safety, heavy load and corrosion resistance, which is used for a number of oilfield applications. There are two models of sealing mechanism adopted in mud valve, which is metal to metal seal and rubber seal.

Features of metal to metal seal mud valve

* Spray coating the seal face of gate and seat with hard alloy, which has long service life.

* Easy to check the status of valve due to rising stem structure.

* Change stem packing without removal of bonnet.

* On site maintenance design allows checking the situation of internal parts by opening bonnet and changing valve parts without removing it from pipeline.

Features of rubber seal mud valve

* All parts are interchangeable with DEMCO gate valve.

* Onsite repair ability:

The bonnet is easily removed for internal parts inspection and/or replacement without removing the valve from the line; this simple design permits fast and easy service without the need of special tools.

* Design of floating gate:

A slab gate with T slot stem connection allows the gate to float to the seat providing a tighter pressure seal.

Specification

Connection Type Flange, Thread, Union, Welded
Temperature Rating K~U
Material Class AA~FF
Production Specification Levels PSL 1~ PSL4
Product Performance PR1 & PR2
Nominal Size 2'', 3'', 4'', 5''
Working Pressure 5000psi, 7500psi

Mud Gate Valve Oil Wellhead Equipment Demco Mud Valve High Working Pressure
