API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
Specifications
Brand Name :
TIPTOP
Model Number :
Plug Valve
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
1000pcs per month
Delivery Time :
7-60 days
Packaging Details :
Seaworthy Wooden Box
Standard :
API 6A
Working Pressure :
2000~15000psi
Product Specification Level :
PSL 1 ~ PSL 4
Performance Requirement :
PR1~PR2
Body Material :
AISI 4130/4140
Material Class :
AA~EE
Description

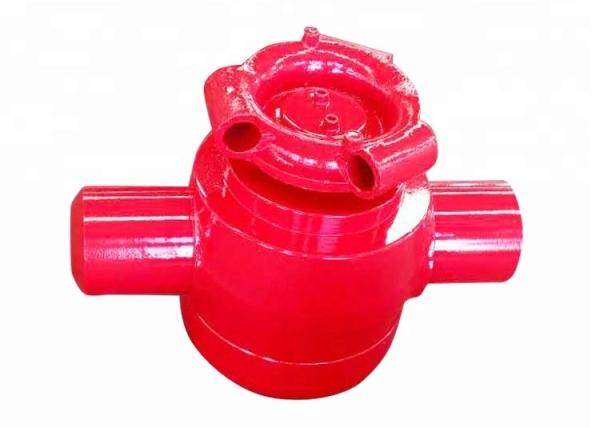

Oil Wellhead Equipment Component, API 6A Fig. 1502 Plug Valve for Fracturing Manifold

Plug valve is a necessary part that is applied to high pressure manifold in well cementing and fracture service, also selected for high pressure fluid control system. It is excellent for its compact structure, easy maintenance, low torque, and rapid operation, which make it to be the most ideal valve for cementing and fracturing manifold.

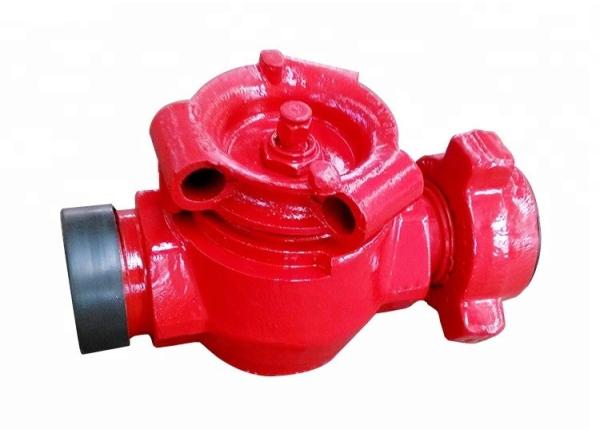

The inlet and outlet of plug valve are Fig. 1502 union connections (other connection are also available upon request). Cylinder fits between body and seal segment, and seal rings are inlaid into outside of seal segment for good sealing. Between seal segment and plug is cylindrical metal sealing, has the feature of high matching precision and reliable sealing.

Main Technical Parameters:

Working Pressure: 2000psi ~ 15000psi

Nominal Bore Diameter: 2’’, 3’’

Temperature Class: K~V

Product Specification Level: 1~4

Performance Requirement: 1~2

Material Class: AA~EE

Working Medium: Petroleum, Natural Gas

Nominal pressure 2000~15000PSI working temperature P.U(-29~121℃)
Specification level PSL1~4 Performance level PR1~2
Material class AA~EE Nominal size 2in~4in
API 6A Standard Oil Wellhead Equipment Plug Valve For Fracturing Manifold
