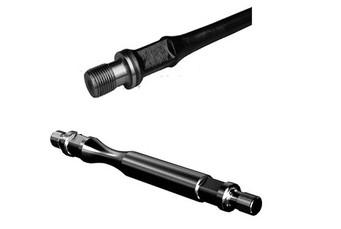

Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Tapered Api Sucker Rod High Intensity 7/8 - 1 1/2 Size High Strength
Specifications
Brand Name :
TIPTOP
Model Number :
D.KD,HL,HY
Certification :
API
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
10000 pieces per month
Delivery Time :
5~30 days
Packaging Details :
Seaworthy Wooden Box
Standard :
API 11B
Product Name :
Sucker Rod
Thread form :
Tapered
Advantage :
High intensity and long life
Color :
Black
Size :
7/8"~1 1/2"
Description

High Strength Oil Well Drilling Tools API 11B Tapered thread sucker rod

Sucker rod description:

It is a sucker rod designed specially for the PCP pump, and the taper thread is designed according to the drill pipe thread, which is applied to a high anti-twist thread on the rod thread.

Its characteristics are:1.It can withstand greater torque.2.Because the pitch is large and the tooth is wide,fastening and unfastening is fast.3.Prevent thread loosening.

Tapered Thread Sucker Rod Specification

No. Size Rod Diameter(mm) Threading Length of finished product
1 7/8" 22.23+0.2-0.41 NC12 8000 30FT
2 1" 25.4+0.23-0.46 NC16 7620 25FT
3 1-1/8" 28.58+0.25-0.51 NC16 1000 2FT
4 1-1/4 31.75+0.0-0.76 NC16 2000 4FT
5 1-1/2" 38.1+0.0-0.0.76 NC16 3000 6F

Mechanical Properties Of Tapered Thread Sucker Rod

Grade Minimum Yield Strength (0.2% Residual Deformation) Minimum Tensile Strength Maximum Tensile Strength Elongation 200mm% Reduction Of Area Z% Surface Hardness HRC Core Hardness HB Fatigue Life
psi MPa psi MPa psi MPa ≥13 ≥50 ≥1.0X106
D 85000 586 115000 793 140000 965 ≥13 ≥50
KD 85000 590 115000 795 140000 965 ≥13 ≥50
HL 115000 795 140000 965 173339 1195 ≥13 ≥45
HY / / 140000 965 173339 1195 / / ≥42 ≥224

Tapered Thread Sucker Rod Torque Value

Grade/Torque/Size D HL HY
7/8" ≥1000 ≥1200 ≥1800
1" ≥1500 ≥1800 ≥2200
1-1/8" ≥2200 ≥2900 ≥3200
1-1/4" ≥3000 ≥3900 ≥4300

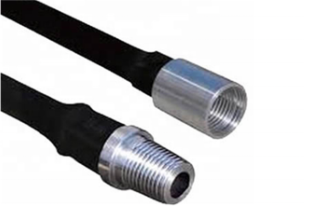

Tapered Api Sucker Rod High Intensity 7/8
