Specifications
Brand Name :
TIPTOP
Model Number :
Sucker Rod
Certification :
API
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 pieces per month
Delivery Time :
5~30 days
Packaging Details :
Seaworthy Wooden Box
Standard :
API 11B
Product Name :
Sucker Rod
Material :
Steel
Advantage :
Corrosion resistant
Color :
Black,silver
Size :
5/8”~11/8”
Description

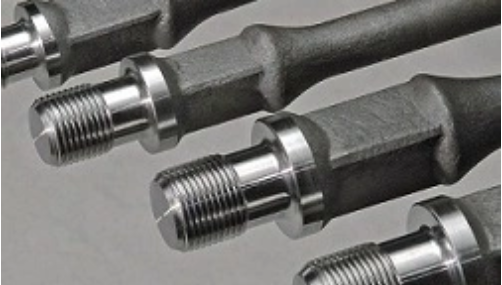

High Strength Oil Well Drilling Tools API 11B Spray Anti-corrosion Sucker Rod

Sucker rod description:

It is a kind of manufacturability anti-corrosion sucker rod, the rod surface spraying a layer of special anti-corrosion materials, used in the medium corrosive well conditions, can prevent the corrosion of rod body and prevent the corrosive material from contacting with the rod body to prolong the life of the rod body.

Spray Anti-corrosion Sucker Rod Specification

Sucker Rod Nominal Value Φ16(5/8") Φ19(3/4") Φ22(7/8") Φ25(1") Φ29(11/8")
Rod Body Diameter 15.88+0.18-0.36
(0.625+0.007-0.014)		 19.05+0.20-0.41
(0.750+0.008-0.016)		 22.23+0.20-0.41
(0.875+0.008-0.016)		 25.40+0.23-0.46
(1.000+0.009-0.018)		 28.58+0.25-0.51
(1.125+0.010-0.020)
Outer Diameter Of External Thread Shoulder 31.8+0.13-0.25
(1.250+0.005-0.010)		 38.1+0.13-0.25
(1.500+0.005-0.010)		 41.3+0.13-0.25
(1.625+0.005-0.010)		 50.8+0.13-0.25
(2.000+0.005-0.010)		 57.2+0.13-0.25
(2.250+0.005-0.010)
Wrench Width
±0.8(±0.031)		 22.2(0.875) 25.4(1.000) 25.4(1.000) 33.3(1.313) 38.1(1.500)
Wrench Length 31.8(1.250) 31.8(1.250) 31.8(1.250) 38.1(1.500) 41.3(1.625)
API Rod Length
±50(±2.0)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)
Domestic Rod Length±50 900,1400,1900,
2400,2900,3400,
7900,9900		 900,1400,1900,
2400,2900,3400,
7900,9900		 900,1400,1900,
2400,2900,3400,
7900,9900		 900,1400,1900,
2400,2900,3400,
7900,9900		 900,1400,1900,
2400,2900,3400,
7900,9900
Upset Flange Diameter 31.1+0.13-3.17
(1.219+0.005-0.125)		 35.7+0.13-3.17
(1.406+0.005-0.125)		 38.1+0.13-3.17
(1.500+0.005-0.125)		 48.4+0.13-3.17
(1.906+0.005-0.125)		 55.6+0.13-3.17
(2.188+0.005-0.125)
AR±3.2(±0.125) 47.6(1.875) 57.1(2.250) 66.7(2.625) 76.2(3.000) 85.7(3.375)
CR+1.59-0.40
(+0.063-0.016)		 3.2(0.125) 3.2(0.125) 4.8(0.188) 4.8(0.188) 4.8(0.188)
