Specifications
Brand Name :
TIPTOP
Model Number :
Bending beam pumping unit
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20 sets per month
Delivery Time :
30-60 days
Packaging Details :
Seaworthy Package
Product :
Pumping unit
Standard :
API
Apply for :
Oil Production
Stroke Length :
23 ~ 82 inch
Use :
Oilfield Rod Production

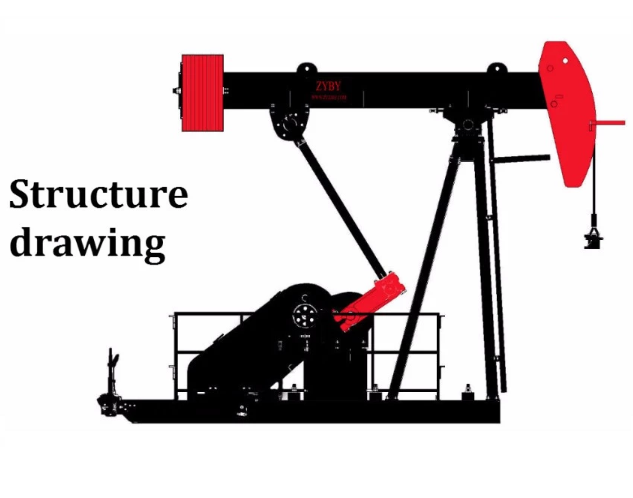

Structure :
Bending beam pumping unit
Description

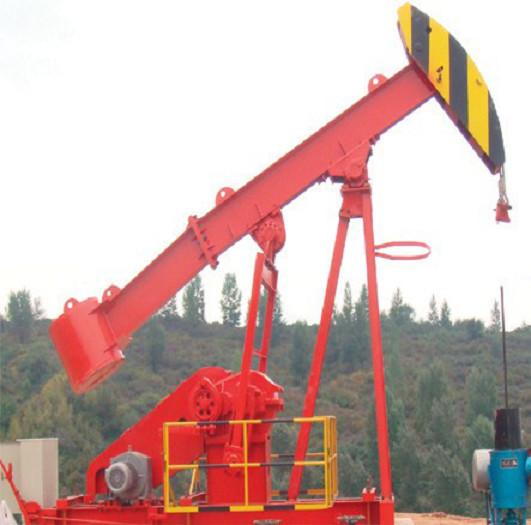

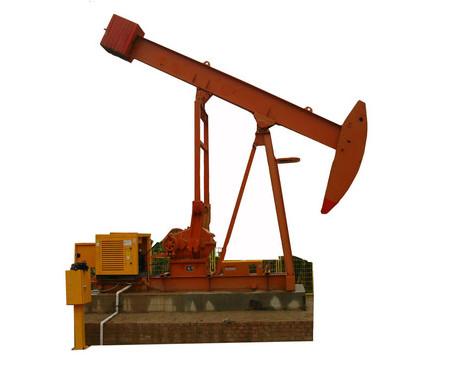

API Standard Bending beam pumping unit For Oil Well Production

Product overview

Bend-beam pumping unit is a kind of beam pumping unit, which is improved on the basis of API B series pumping unit in order to meet the requirements of quick and convenient adjustment on site.

Technical performance characteristics

☆ simple structure, convenient operation and maintenance, long service life.

☆ reducer adopts two-stage reducer herringbone gear transmission, smooth and reliable operation.

☆ the machine quality is small, easy to install and transport.

☆ suitable for small stroke, light load, shallow well production operations.

main technical parameters

No. Model Rated suspension point load(lb) stroke(in)

Reducer rated torque

(in.lbs)
1 B-80D-119-82 11,900 82,66 80,000
2 B-80D-119-64 11,900 64,54 80,000
3 B-80D-133-54 13,300 54,41 80,000
4 B-80D-76-64 7,600 64,54 80,000
5 B-80D-76-54 7,600 54,41 80,000
6 B-80D-109-48 10,900 48,35 80,000
7 B-57D-109-54 10,900 54,41 57,000
8 B-57D-89-54 8,900 54,41 57,000
9 B-57D-76-54 7,600 54,41 57,000
10 B-57D-109-48 10,900 48,35 57,000
11 B-40D-95-59 9,500 59,43 40,000
12 B-40D-89-48 8,900 48,35 40,000
13 B-40D-76-42 7,600 42,29 40,000
14 B-40D-67-30 6,700 30,23 40,000

API Standard Oil Well Drilling Tools Bending Beam Pumping Unit 23 - 82 Inch Stroke Length
