Specifications
Brand Name :
TIPTOP
Model Number :
HY
Certification :
API
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
10000 pieces per month
Delivery Time :
5~30 days
Packaging Details :
Seaworthy Wooden Box
Standard :
API 11B
Product Name :
Sucker Rod
Grade :
HY
Usage :
Oil exploitation
Advantage :
High intensity and long life
Color :
Black
Description

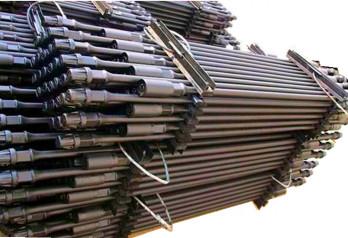

High Strength Oil Well Drilling Tools API 11B Grade HY Sucker Rod

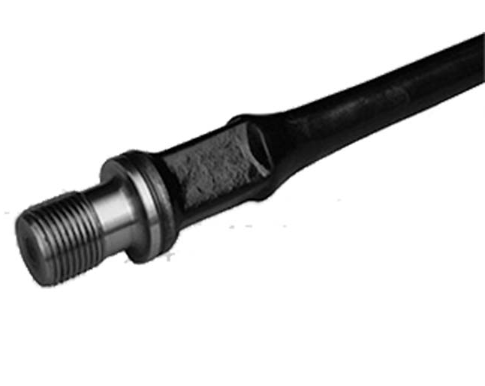

Sucker rod description

Grade HY Sucker Rod is a high strength sucker rod, and is mainly used in deep well,the surface hardened layer has a stable martensite strip structure, high tensile strength,It has the characteristics of high tensile strength, good wear resistance, high torsion strength and long service life.

Grade HY Sucker Rod Specification

Sucker Rod Nominal Value Φ16(5/8") Φ19(3/4") Φ22(7/8") Φ25(1") Φ29(11/8")
Rod Body Diameter 15.88+0.18-0.36
(0.625+0.007-0.014)		 19.05+0.20-0.41
(0.750+0.008-0.016)		 22.23+0.20-0.41
(0.875+0.008-0.016)		 25.40+0.23-0.46
(1.000+0.009-0.018)		 28.58+0.25-0.51
(1.125+0.010-0.020)
Outer Diameter Of External Thread Shoulder 31.8+0.13-0.25
(1.250+0.005-0.010)		 38.1+0.13-0.25
(1.500+0.005-0.010)		 41.3+0.13-0.25
(1.625+0.005-0.010)		 50.8+0.13-0.25
(2.000+0.005-0.010)		 57.2+0.13-0.25
(2.250+0.005-0.010)
Wrench Width
±0.8(±0.031)		 22.2(0.875) 25.4(1.000) 25.4(1.000) 33.3(1.313) 38.1(1.500)
Wrench Length 31.8(1.250) 31.8(1.250) 31.8(1.250) 38.1(1.500) 41.3(1.625)
API Rod Length
±50(±2.0)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)		 508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)
Domestic Rod Length±50 900,1400,1900,
2400,2900,3400,
7900,9900		 900,1400,1900,
2400,2900,3400,
7900,9900		 900,1400,1900,
2400,2900,3400,
7900,9900		 900,1400,1900,
2400,2900,3400,
7900,9900		 900,1400,1900,
2400,2900,3400,
7900,9900
Upset Flange Diameter 31.1+0.13-3.17
(1.219+0.005-0.125)		 35.7+0.13-3.17
(1.406+0.005-0.125)		 38.1+0.13-3.17
(1.500+0.005-0.125)		 48.4+0.13-3.17
(1.906+0.005-0.125)		 55.6+0.13-3.17
(2.188+0.005-0.125)
AR±3.2(±0.125) 47.6(1.875) 57.1(2.250) 66.7(2.625) 76.2(3.000) 85.7(3.375)
CR+1.59-0.40
(+0.063-0.016)		 3.2(0.125) 3.2(0.125) 4.8(0.188) 4.8(0.188) 4.8(0.188)
