Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675
Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675
Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675
Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675
Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675
Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675
Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675
Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675
Specifications
Brand Name :
TIPTOP
Model Number :
DG675
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per month
Delivery Time :
5-30 days

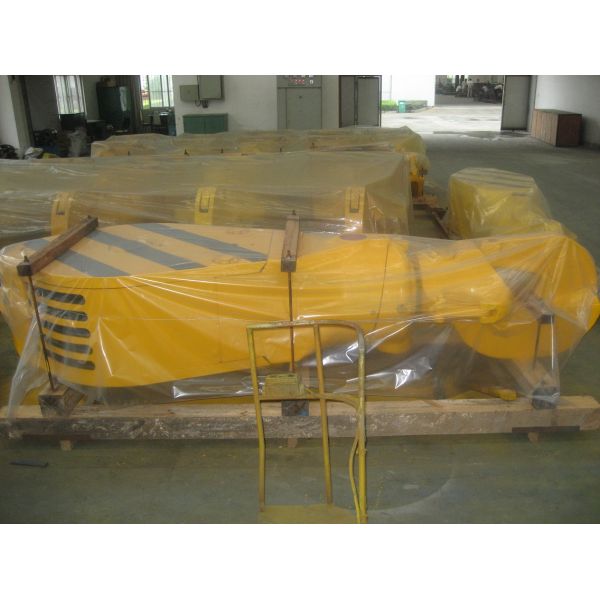

Packaging Details :
seaworthy wooden box
Standard :
API 8C
Application :
Drilling Rig Equipment
Max. Hook Load :
6750KN
Key Word :
Oil Well Lifting Equipment
Product Name :
Hook
Model :
DG225~DG675
Description

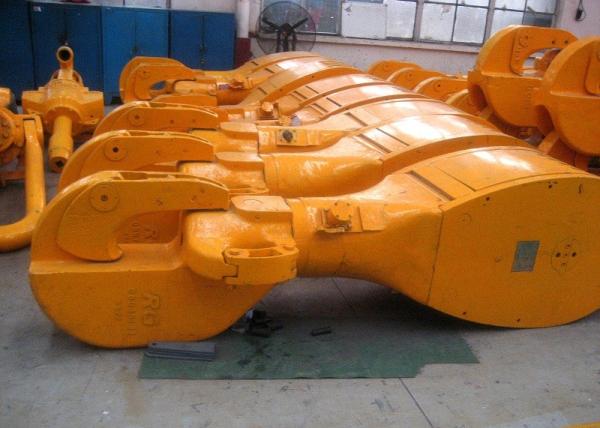

Oil Rig Equipment Oil Well Lifting Equipment API 8C Hook DG675​

The hook complies with API Spec 8A. The hook is equipped with the reliable safety devices on the main hook, and with a hydraulic snubber assembly to protect drill pipe joint. The main parts are made of high strength alloy steels and are subjected to nondestructive testing.

Features

The body, the bail and the bail support are cast with special alloy steel.

Equipped with a hydraulic snubber assembly to protect drill pipe joints when making up/breaking out connections.

At the hook there is a reliable safety device.

It is provided with a braking device to lock up & lock out the body.

The primary-load-carrying parts of hook are subject to NDE test.

The hooks conform to API Spec 8A/8C.

Model DG225 DG315 DG450 DG675
Max hook load (lbf) 505820 483339 1011640 1517460
Main hook opening size (in) 7.48 8.66 8.66 9.37
Spring stroke (in) 7.08 7.87 7.87 7.87
Overall dimension (ft) 8.34×2.55×2.46 9.68×2.92×7.87 9.68×2.92×2.88 10.35×3.97×3.05
Mass (lb) 4806 7517.8 7707.35 8598
