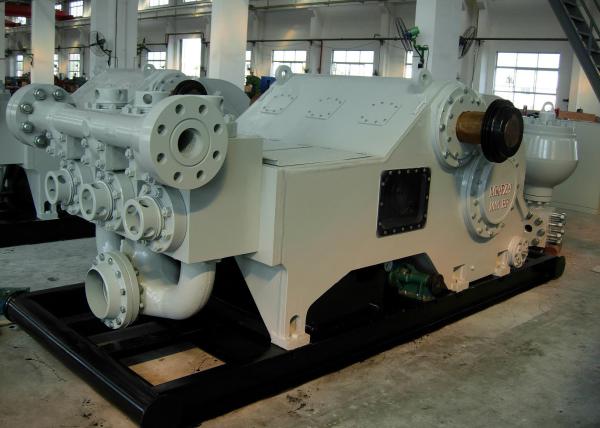

Drilling Oil Rig Equipment High Pressure Oilfield Pz7 - Pz 11 Mud Pump
Drilling Oil Rig Equipment High Pressure Oilfield Pz7 - Pz 11 Mud Pump
Drilling Oil Rig Equipment High Pressure Oilfield Pz7 - Pz 11 Mud Pump
Drilling Oil Rig Equipment High Pressure Oilfield Pz7 - Pz 11 Mud Pump
Drilling Oil Rig Equipment High Pressure Oilfield Pz7 - Pz 11 Mud Pump
Drilling Oil Rig Equipment High Pressure Oilfield Pz7 - Pz 11 Mud Pump
Drilling Oil Rig Equipment High Pressure Oilfield Pz7 - Pz 11 Mud Pump
Drilling Oil Rig Equipment High Pressure Oilfield Pz7 - Pz 11 Mud Pump
Specifications
Brand Name :
TIPTOP
Model Number :
PZ Mud Pump
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per month
Delivery Time :
5-60 days
Packaging Details :
seaworthy package
Standard :
API 7K
Application :
Rig Component
Models :
PZ-8, PZ-9, PZ-10
Description :
Triplex Mud Pump
Product Name :
PZ series Mud Pump
Maximum RPM :
145
Description

Oil Rig Equipment Mud Pump, PZ Mud Pump, High Pressure Oilfield Pump

Basic Configuration

pump body 1 set

piston lubricating pump (built in the pump) 1ea

tank-lube oil (built in the pump) 1ea

skid (built in the pump) 1ea

manifold-suction (built in the pump) 1ea

manifold-discharge (built in the pump) 1ea

pulsation dampener – discharge (built in the pump) 1ea

five way joint – discharge 1ea

Fluid end includes 6″liner, piston rod, API 7# body-valve, seat-valve etc 1 set

gasket-liner to cylinder 3ea

gasket-valve cover 6ea

gasket-suction manifold to cylinder 3ea

gasket-discharge manifold to cylinder(25AL35) 3ea

Wrench S=23/8” 1 ea

Features

* Nodular iron power frame, eccentric, connection rods and crossheads

* Double-row-spherical roller bearings carry eccentric

* Double extended jackshaft carried on heavy-duty straight roller bearings

* Dual roller baring connecting rod

* Heat-treated alloy steel main gears are bolted to the eccentric

* Replaceable bronze crosshead slides

* Full splash lubrication, with oil pump to feed working parts

* Heat-treated alloy steel, interchangeable fluid cylinders

* Three rib API Y urethane insert valves and seats

* Replaceable oil filter element and oil pressure gauge

* Threaded valve covers

* Plated piston rods

* Complete piston washing and lubrication system

* The monoblock forging of hollow sphere for the pulsation dampener.

Specification

Model Maximum Input Maximum RPM Stroke Length Rod Load Pump Weight Gear Ratio
PZG (PZ-7) 550 BHP (410 kw) 145 RPM 7" (178 mm) 64,400 lbs. (29,211 kg) 16,765 lbs. (7,620 kg) 4.625:1
PZH (PZ-8) 750 BHP (559 kw) 145 RPM 8" (203 mm) 76,800 lbs. (34,836 kg) 17,400 lbs. (7,900 kg) 4.5:1
PZJ (PZ-9) 1000BHP (746 kw) 130 RPM 9" (229 mm) 101,550 lbs. (36,062 kg) 28,425 lbs. (12,890 kg) 4.48:1
PZK (PZ-10) 1,350BHP (1,007 kw) 115 RPM 10" (254 mm) 139,800 lbs. (63,276 kg) 37,000 lbs. (16,815 kg) 4.38:1
PZL (PZ-11) 1,600BHP (1,193 kw) 115 RPM 11" (279 mm) 150,300 lbs. (68,175 kg) 37,000 lbs. (16,815 kg) 4.38:1
