Specifications
Brand Name :
TIPTOP
Model Number :
Hydraulic Hose
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
5000 meters per month
Delivery Time :
3~20 days
Packaging Details :
seaworthy wooden box
Product Name :
Hydraulic Hose
Feature :
High Pressure
Structure :
Four Spiral Steel Wire Reinforced
Apply for :
Petroleum Base Hydraulic Fluids
Size :
19-38mm
Type :
Rubber Covered
Description

High Pressure, Four Spiral Steel Wire Reinforced, Rubber Covered Hydraulic Hose

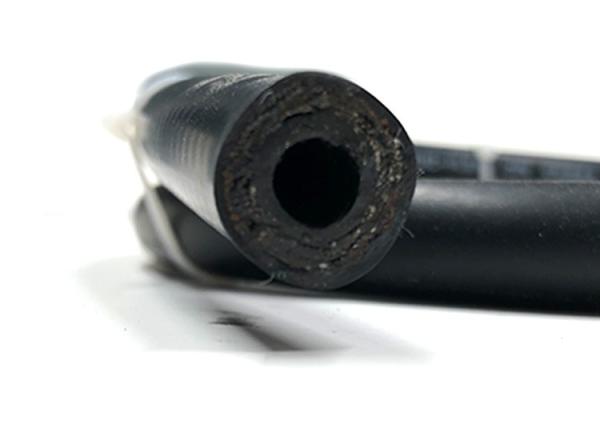

The high pressure four spiral steel wire reinforced rubber covered hydraulic hose shall consist of an inner tube of oil resistant synthetic rubber, multiple spiral plies of heavy steel wire wrapped in alternating directions, and an oil and weather resistant synthetic rubber cover.

This section covers hose for use with petroleum base hydraulic fluids within a temperature range of ﹣40℃~＋121℃.

Specification

Size ID WD OD WP PP BP min. BR WT
mm inch min max min max min max Mpa psi Mpa psi Mpa psi inch mm kg/m
19 3/4 18.60 19.80 28.2 29.8 31.0 33.2 35 5075 70 10150 140 20300 9.45 240 2.10
25 1 25.00 26.40 34.9 36.4 37.6 39.8 35 5075 70 10150 140 20300 11.81 300 2.88
31.5 1 1/4 31.40 33.00 45.6 48.0 48.3 51.3 35 5075 70 10150 140 20300 16.54 420 4.20
38 1 1/2 37.70 39.30 53.1 55.5 55.8 58.8 35 5075 70 10150 140 20300 19.69 500 5.00
51 2 50.40 52.00 66.9 69.3 69.5 72.7 35 5075 70 10150 140 20300 25.20 640 7.00
