Specifications
Brand Name :
TIPTOP
Model Number :
SL70
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 sets per month
Delivery Time :
5-30 days
Packaging Details :
seaworthy wooden box
Standard :
API 8C
Application :
Drilling Rig Equipment
Max. Static Load :
4500KN
Key Word :
Drilling Rig Hoisting Tool
Product Name :
Swivel
Model :
SL70~XSL450
Description

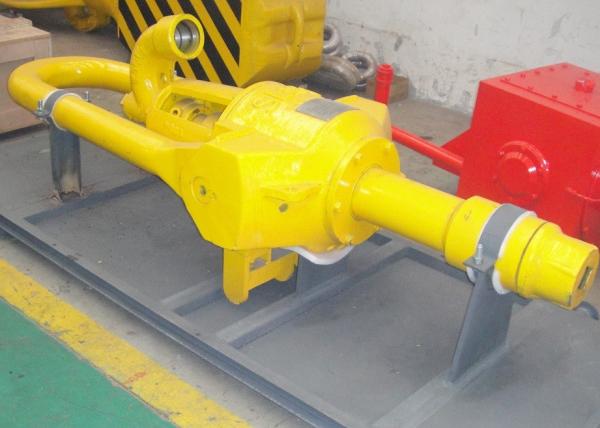

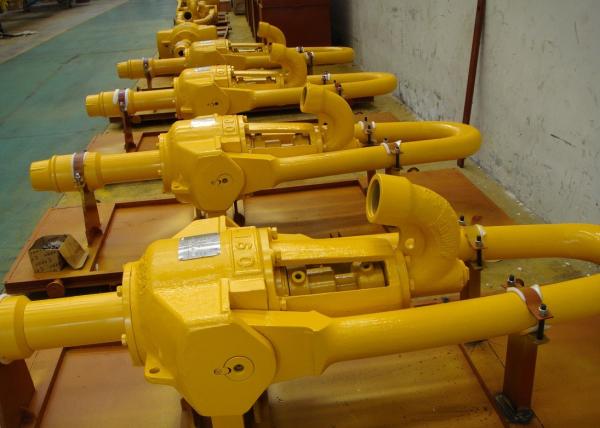

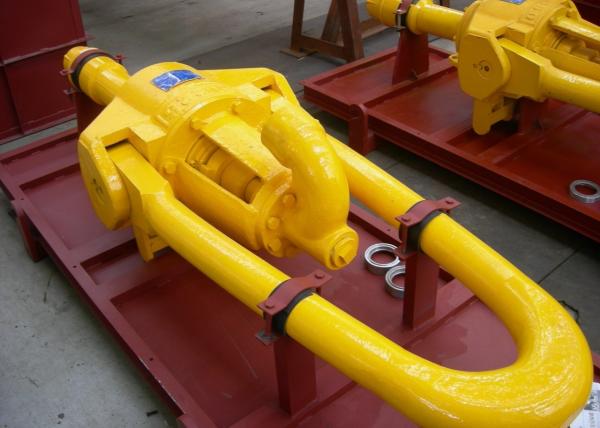

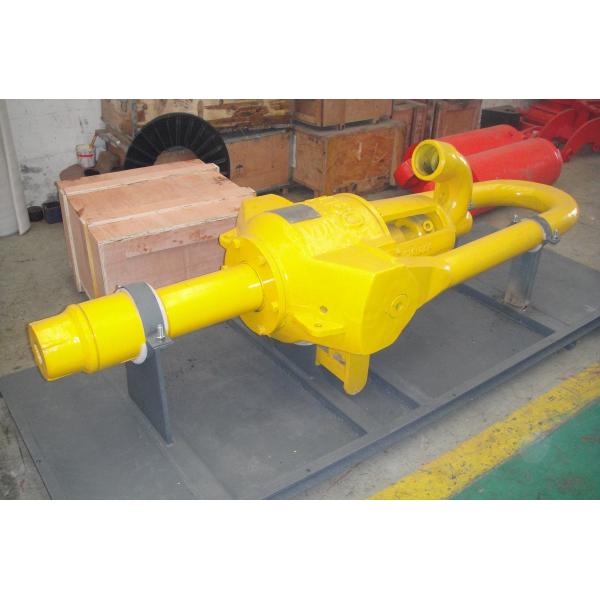

Oil Rig Equipment Oil Well Drilling Rig Hoist Tool API 8A/8C Swivel

Swivels are necessary hoisting tools for hanging drill pipe and jointing hose in well repairing. There are type SL35, SL60, SL90 and SL135. They are designed and manufactured according to API Spec 8A/8C.

Features

* With standard bails and double pin alloy steel sub.

* The wash pipe and the packing assembly are cartridge type and can be replaced on the floor without disconnecting the rotary hose and/or gooseneck.

* The gooseneck is provided with an outlet for wire line logging.

* With standard gooseneck joints. Threads are in compliance with API 5B.

* The swivels conform to API 8A/8C.

MODEL SL70 SL110 SL135 SL160 SL225 XSL225 XSL450
Max. static load (Ibf) 151740 25290 303492 35969 505820 505820 1011640
Working load of main bearing (Ibf) 67440 101164 224808 269770 337213 377213 562022
Gooseneck pipe thread 2 3/8” TBG 4 1/2” NPT 4 1/2” TBG 4 1/2” TBG 4 1/2” TBG 4” NPT 4“NPT
Bottom thread of central pipe joint 2 7/8” UP DP 4 1/2” REG LH 5 1/2” REG LH 5 1/2” REG LH 6 5/8" REG LH 6 5/8" REG LH 6 5/8"REG LH
Max. working pressure (psi) 2143 3000 5000 5000 5000 5000 5000
Opening diameter of central pipe (in) 1.96 2.5 2.99 2.99 2.99 2.99 2.99
Overall dimension (ft)

5.57×1.49

×0.98

5.53×0.93

×1.67

7.41×2.21

×2.44

7.87×2.33

×2.47

8.53×2.56

×2.60

9.45x3.37

x3.49

9.89×3.59

×3.49
Mass (Ib) 606 741 1711 2176 2925 5666 6746
