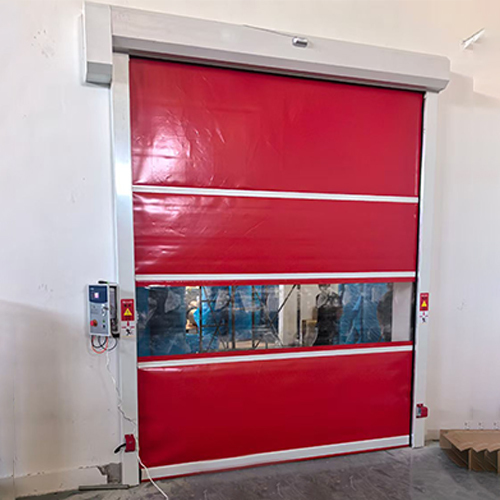

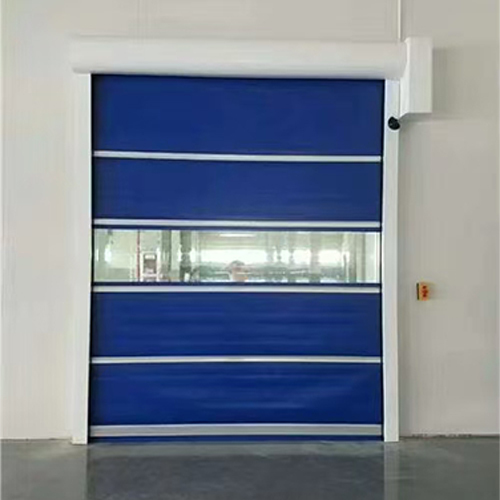

Hygienic Industrial Speed Doors , Safety Cold Storage High Speed Door For Food Processing
Hygienic Industrial Speed Doors , Safety Cold Storage High Speed Door For Food Processing
Hygienic Industrial Speed Doors , Safety Cold Storage High Speed Door For Food Processing
Hygienic Industrial Speed Doors , Safety Cold Storage High Speed Door For Food Processing
Specifications
Brand Name :
YOHO
Model Number :
High-Speed PVC Industrial Door
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Name :
Industrial Speed Doors
Color :
Yellow/Blue/Red/Grey/White/Transparent
Size :
3x3 m or customized (max size:6x8m)
Panel Material :
Anti-skid Checkered Plate
Material :
PVC curtain / Galvanized steel / Stainless steel
Voitage :
380V or 220V
Power :
0.75-1.5KW
Door Width :
1000 mm - 6000 mm
Door Height :
1500 mm - 6000 mm
Application :
Food Processing
Description

Industrial High Speed Door With Stable Operation For Food Processing – Fast & Hygienic Doors

The Industrial High Speed Door for food processing facilities is designed to meet the strict hygiene, safety, and efficiency requirements of modern food factories. It provides fast opening and closing to minimize air exchange, prevents dust, insects, and contamination, and maintains a stable working environment. The smooth PVC or stainless steel curtain surface allows easy cleaning and sanitation, while the durable structure supports high-frequency operation in busy production lines, ensuring consistent product quality and workflow efficiency.

Product Specifications:

Parameter Description
Material PVC curtain / Galvanized steel / Stainless steel
Max Door Size Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable)
Curtain Material 0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power 0.75-1.5KW (depending on size & speed)
Temperature Range -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing
Wind Resistance Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function In case of power failure or malfunction, the door can be manually opened with a wrench.
Power Requirements 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards.
Insulation Protection IP54 rating, providing water and dust protection, suitable for harsh environments.
Switching Methods Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc.

Product Features

  • High-Speed & Stable Operation
  • Excellent Sealing Performance
  • Hygienic & Easy-to-Clean Design
  • Advanced Control & Automation Options

Product Advantages

  • Enhances Food Safety & Hygiene
  • Reduces Energy Loss
  • Improves Workflow Efficiency
  • Durable & Low Maintenance

Technical Highlights (Key Parameters)

  • Max Door Size: Width 1000–6000 mm | Height 1500–6000 mm

  • Curtain Material: PVC, 0.8–2.0 mm thickness

  • Frame Material: Galvanized steel (standard), Stainless steel (optional)

  • Wind Resistance: Class 6 (reinforced up to Class 8)

  • Power Supply: 220V / 50–60Hz, IP54 control box

  • Safety System: Infrared photoelectric sensors + bottom safety edge

  • Manual Operation: Emergency manual opening in case of power failure

Applications

  • Food processing workshops

  • Packaging and preparation areas

  • Beverage and dairy production lines

  • Cold storage and temperature-controlled zones

  • Hygienic production environments with frequent traffic

FAQ

What is an Industrial High Speed Door?

An industrial high speed door is a fast-operating door designed for industrial environments to improve workflow efficiency, hygiene control, and environmental separation.

Can it withstand frequent operation?

Yes. The servo motor system and closed-loop control allow stable performance for 1,000+ operating cycles per day, making it ideal for high-traffic areas.

Is it suitable for clean or hygienic areas?

Yes. The smooth curtain surface, tight sealing system, and easy-to-clean materials help reduce dust accumulation and contamination risks.

What materials and configurations are available?

Available materials include PVC, stainless steel, and galvanized steel. Insulated curtains, transparent windows, and multiple activation methods are optional.
