Specifications
Panel Material :
Anti-skid Checkered Plate
Door Height :
1500 mm - 6000 mm
Brand Name :
YOHO
Model Number :
High-Speed Stainless Steel Industrial Door
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Size :
3x3 m or customized (max size:6x8m)
Power :
0.75-1.5KW
Material :
PVC curtain / Stainless steel
Door Width :
1000 mm - 6000 mm
Color :
Yellow/Blue/Red/Grey/White/Transparent
Voitage :
380V or 220V
Name :
High-Speed Stainless Steel Industrial Door
Application :
Packaging Areas
Description

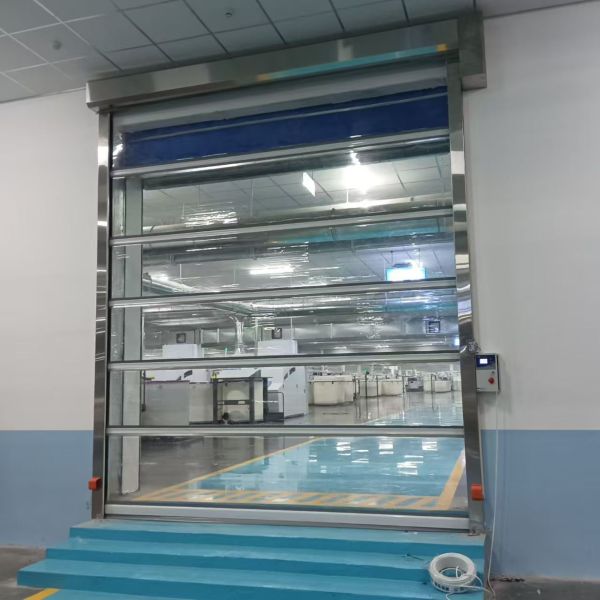

Industrial High Speed Door With Stainless Steel Structure For Packaging Areas

The Industrial High Speed Door for Packaging Areas with stainless steel structure is specially designed for environments where hygiene, cleanliness, and durability are critical.

In packaging areas, frequent movement of materials and personnel requires fast access without compromising sanitation standards. The stainless steel high speed door offers excellent corrosion resistance, smooth surface finish, and easy cleaning, making it ideal for food, pharmaceutical, and hygienic packaging operations.

Stainless Steel Hygienic Design

Packaging areas require strict hygiene control.

  • Material: SUS304 stainless steel (SUS316 optional)
  • Smooth Surface Finish: Reduces contamination risk
  • Easy Cleaning: Suitable for disinfectants and cleaning chemicals
  • Corrosion Resistance: Ideal for humid or wash-down environments

This design ensures long-term cleanliness and compliance with hygiene standards.

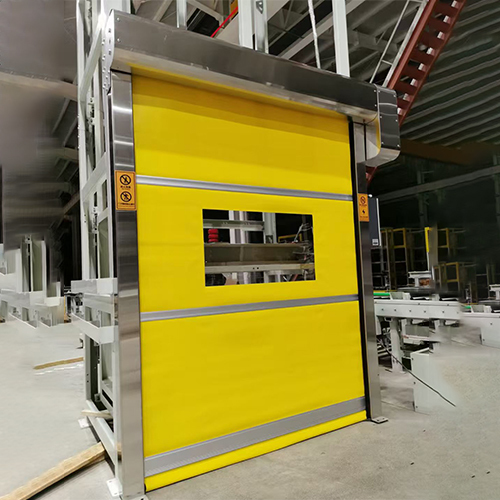

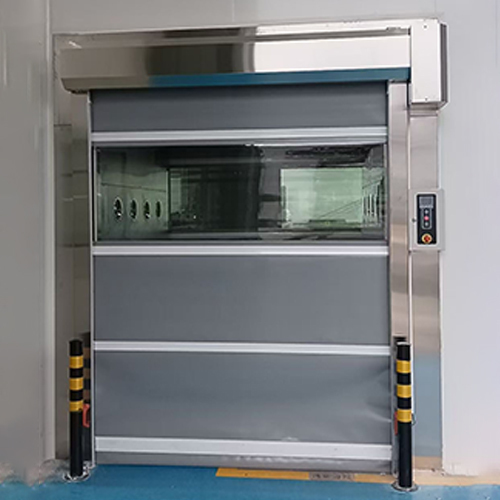

Stainless-Steel Structure Industrial High Speed Door For Packaging Facility Applications Stainless-Steel Structure Industrial High Speed Door For Packaging Facility Applications

Product Advantages

  • Improves packaging efficiency
  • Maintains clean and safe working environment
  • Reduces energy loss and cross-contamination
  • Durable and low-maintenance design

Applications

  • Food and beverage packaging areas
  • Pharmaceutical packaging workshops
  • Consumer goods packaging lines
  • Material transfer points



Contact Us:

Email:yohao260105@gmail.com

Whatsapp:+8618021983369

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Product Specifications

Parameter Description
Material PVC curtain / Galvanized steel / Stainless steel
Max Door Size Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable)
Curtain Material 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power 0.75-1.5KW (depending on size & speed)
Temperature Range -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing
Wind Resistance Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function In case of power failure or malfunction, the door can be manually opened with a wrench.
Power Requirements 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards.
Insulation Protection IP54 rating, providing water and dust protection, suitable for harsh environments.
Switching Methods Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc.

FAQ

Q1: Why use stainless steel high speed doors in packaging areas?

Stainless steel offers superior hygiene, corrosion resistance, and easy cleaning, making it ideal for packaging environments.

Q2: Is the door suitable for wash-down areas?

Yes. The stainless steel structure and sealed design support regular cleaning and wash-down operations.

Q3: Can the door operate frequently during production?

Yes. The servo motor system supports high-frequency operation, ideal for continuous packaging lines.

Q4: Can the door be customized?

Yes. Size, stainless steel grade, curtain type, control system, and safety options can all be customized.

Stainless-Steel Structure Industrial High Speed Door For Packaging Facility Applications

Stainless-Steel Structure Industrial High Speed Door For Packaging Facility Applications

Contact Us Today

Contact Changzhou YOHO Industrial Door Co., Ltd. for customized solutions, factory-direct pricing, and professional technical support.
