Industrial High Speed Door With Enhanced Safety For Internal Factory Passages
Industrial High Speed Door With Enhanced Safety For Internal Factory Passages
Industrial High Speed Door With Enhanced Safety For Internal Factory Passages
Industrial High Speed Door With Enhanced Safety For Internal Factory Passages
Specifications
Brand Name :
YOHO
Model Number :
High-Speed PVC Industrial Door
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Color :
Yellow/Blue/Red/Grey/White/Transparent
Size :
3x3 m or customized (max size:6x8m)
Voitage :
380V or 220V
Name :
High-Speed PVC Industrial Door
Panel Material :
Anti-skid Checkered Plate
Material :
PVC curtain / Galvanized steel / Stainless steel
Power :
0.75-1.5KW
Door Width :
1000 mm - 6000 mm
Door Height :
1500 mm - 6000 mm
Application :
Internal Factory Passages
Description

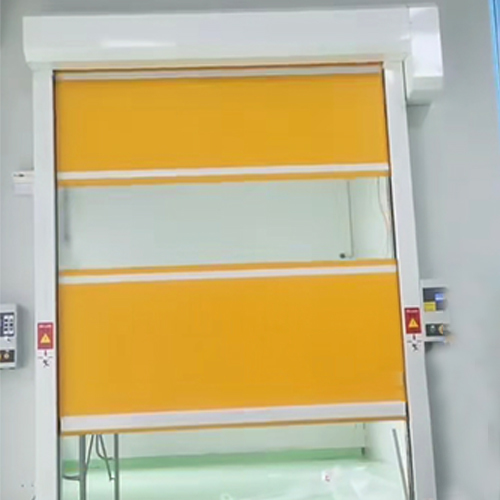

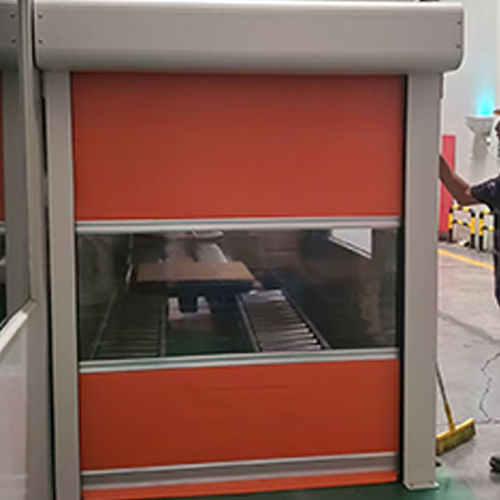

Industrial High Speed Door With Enhanced Safety For Internal Factory Passages

The Industrial High Speed Door for Internal Factory Passages is designed to optimize internal traffic flow, safety, and environmental separation within manufacturing facilities.

In internal factory passages, forklifts, carts, AGVs, and personnel move frequently between different workshops and functional zones. This high speed door features fast opening speed, precise servo control, and reliable safety protection, ensuring smooth passage while maintaining separation between production areas.

Product Specifications

Material PVC curtain / Galvanized steel / Stainless steel
Max Door Size Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable)
Curtain Material 0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power 0.75-1.5KW (depending on size & speed)
Temperature Range -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for optimal sealing
Wind Resistance Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function In case of power failure or malfunction, the door can be manually opened with a wrench
Power Requirements 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards
Insulation Protection IP54 rating, providing water and dust protection, suitable for harsh environments
Switching Methods Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control

Product Advantages

1️⃣ Smooth Internal Traffic Flow

  • Fast opening and closing reduce congestion
  • Supports high-frequency movement of forklifts and personnel

2️⃣ Effective Area Separation

  • Helps control dust, noise, airflow, and temperature between workshops
  • Improves production organization and management

3️⃣ Enhanced Safety for Workers & Equipment

  • Multiple safety devices prevent collision and injury
  • Stable operation reduces mechanical impact

4️⃣ Energy Efficiency & Cost Control

  • Minimizes unnecessary air exchange
  • Reduces HVAC energy consumption in production areas

High-Frequency Operation & Safety Protection

Internal passages often experience constant traffic throughout the day.

  • Servo Motor System: Supports thousands of open/close cycles per day
  • Fast Opening Speed: Up to 1.5 m/s, reducing waiting time
  • Infrared Sensors: Detect people and vehicles to prevent collisions
  • Bottom Soft Safety Edge: Ensures immediate rebound upon contact

This combination ensures safe, efficient, and uninterrupted internal logistics flow.

Applications

  • Internal factory passages
  • Workshop-to-workshop connections
  • Production line access points
  • Warehouse-to-production area passages
  • AGV and forklift traffic zones

FAQ

Q1: Why are high speed doors suitable for internal factory passages?

They allow fast and safe movement while maintaining separation between different functional areas inside the factory.

Q2: Can the door handle frequent forklift traffic?

Yes. The door is designed for high-frequency operation and can be activated by radar or ground loop sensors for forklifts.

Q3: Does the door help with dust and noise control?

Yes. Tight sealing and fast operation help reduce dust, airflow, and noise transfer between areas.

Q4: Can the door be customized for different passage sizes?

Yes. Door dimensions, materials, control systems, and safety options can be customized.
