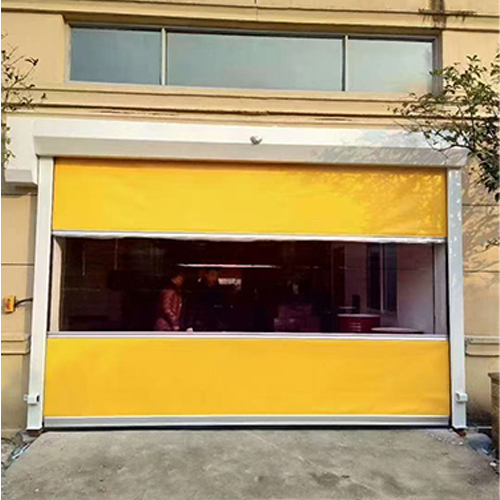

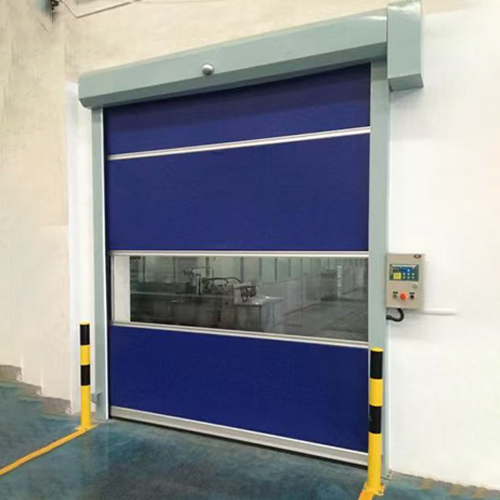

Hygienic Industrial High Speed Door With High-Speed Operation For Food Processing
Hygienic Industrial High Speed Door With High-Speed Operation For Food Processing
Hygienic Industrial High Speed Door With High-Speed Operation For Food Processing
Hygienic Industrial High Speed Door With High-Speed Operation For Food Processing
Specifications
Brand Name :
YOHO
Model Number :
High-Speed PVC Industrial Door
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Color :
Yellow/Blue/Red/Grey/White/Transparent
Size :
3x3 m or customized (max size:6x8m)
Voitage :
380V or 220V
Name :
High-Speed PVC Industrial Door
Panel Material :
Anti-skid Checkered Plate
Material :
PVC curtain / Galvanized steel / Stainless steel
Power :
0.75-1.5KW
Door Width :
1000 mm - 6000 mm
Door Height :
1500 mm - 6000 mm
Application :
Food Processing
Description

Hygienic Industrial High Speed Door With High-Speed Operation And Excellent Sealing Performance For Food Processing

The Industrial High Speed Door for food processing facilities is engineered to meet strict hygiene, efficiency, and environmental control requirements. In food production environments, maintaining cleanliness, temperature stability, and fast internal logistics is critical to product quality and safety. This door features a smooth, non-porous door curtain with high-sealing structure that effectively prevents dust, insects, and air contamination. With fast opening and closing speeds, it minimizes air exchange between production zones, helping manufacturers comply with hygiene standards while improving workflow efficiency.

Product Specifications

Parameter Description
Material PVC curtain / Galvanized steel / Stainless steel
Max Door Size Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable)
Curtain Material 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power 0.75-1.5KW (depending on size & speed)
Temperature Range -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing
Wind Resistance Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function In case of power failure or malfunction, the door can be manually opened with a wrench
Power Requirements 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards
Insulation Protection IP54 rating, providing water and dust protection, suitable for harsh environments
Switching Methods Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control

Key Features for Food Industry Applications

Hygienic Door Structure

  • Smooth PVC or stainless steel surface, easy to clean
  • No exposed screws to reduce dirt accumulation
  • Resistant to moisture, grease, and food residues

High-Speed Operation

  • Opening speed up to 2.0 m/s
  • Reduces waiting time for workers and forklifts
  • Maintains stable internal environment

Excellent Sealing Performance

  • Bottom airbag or soft bottom edge
  • Side guide brush sealing
  • Effectively blocks insects and dust

Advantages for Food Manufacturers

  • Improves hygiene management and cleanliness control
  • Reduces temperature loss between processing areas
  • Enhances internal logistics efficiency
  • Low maintenance cost for long-term operation

Typical Applications

  • Food processing workshops
  • Beverage production lines
  • Meat, dairy, and frozen food factories
  • Packaging and clean preparation areas

Features

  • Opening Methods: Standard configuration features manual push-button activation; optional methods include remote control, radar, magnetic loop sensors, pull-cord switches, and access control systems.
  • Safety Protection System: Equipped with infrared sensors and a comprehensive safety protection system.
