46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
Specifications
Brand Name :
YOULESHI
Model Number :
ULS-46PJ02
Place of Origin :
Guangdong, China
Supply Ability :
2000 pieces per month for each product
MOQ :
1pcs
Packaging Details :
Paper box/wooden box/flying box
Certification :
CCC,RoHS,FCC,CE,UN38.3
Delivery Time :
5 working days
Application :
Indoor
Type :
LCD
Color :
Full color
Supplier Type :
ODM, OEM
Media Available :
datasheet, Photo
use :
advertising publish, retail store, shopping mall, welcome display, exhibition hall, airport, subway, education, medical treatment
Function :
SDK
Specification :
Video Wall
Touch Screen Type :
NO
Brightness :
700cd/m²
Display Ratio :
16:9
Response Time :
8ms
Contrast Ratio :
4000:1
Lifespan (hours) :
80000
IP Rating :
IP45
Installation Type :
Wall mounted/floor stand/floor cabinet
Resolution :
1920*1080
View Angle（H/V） :
89°/89°/89°/89°(min)(CR≥10)
Warranty :
1-3Year
Display Function :
Split Screen
After-sales Service Provided :
Video Technical Support
Size :
10.1 inch-110 inch
resolution :
1920*1080/3840*2160
OS :
Android/Windows
touch screen :
optional
4G :
optional
warranty :
1-3 year
Life Time :
60000 hours
Connectivity :
WiFi, Bluetooth
Panel :
100% A+ Grade Panel
Picture Format :
mp3, wma, ogg, aac, wav
Color Option :
White/Black or optional
Certificates :
CE FCC ROHS
Usb :
Yes
Max Resolution :
1920*1080/3840*2160
Screen Size :
10.1-110 inches
Operation Humidity Range :
10% to 80%
Osd Language :
English,Chinese
Contrast :
≥ 1000: 1
Input :
AC 110V~240V,50/60Hz, 110W
Touch :
optional
Description
700nit Seam Indoor Ultra Narrow Border 46" High Definition LCD Display Screen
Premium Physical Advertising Video Splicing Wall Solution

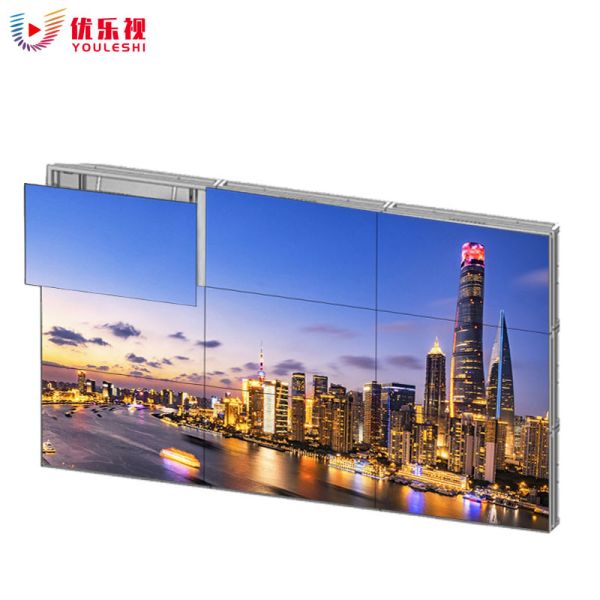

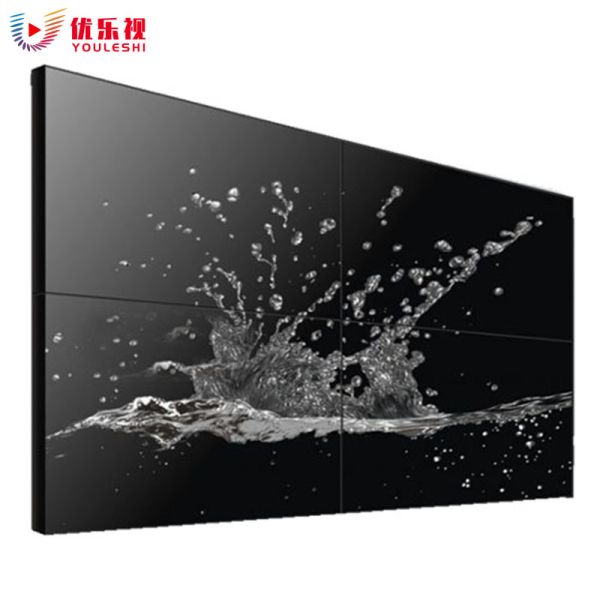

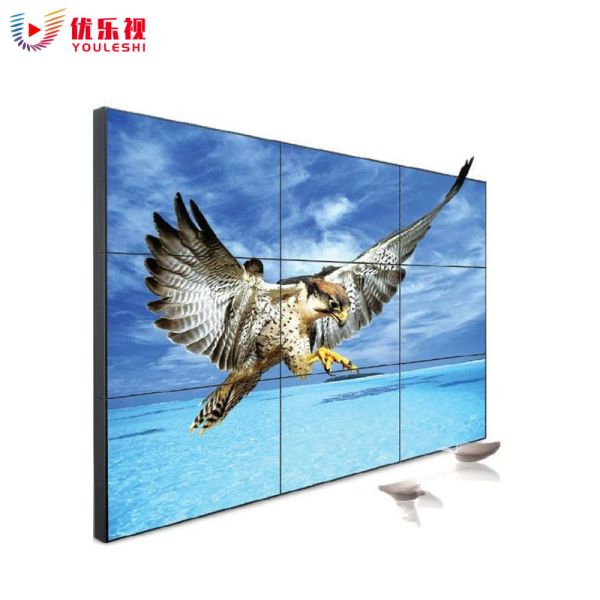

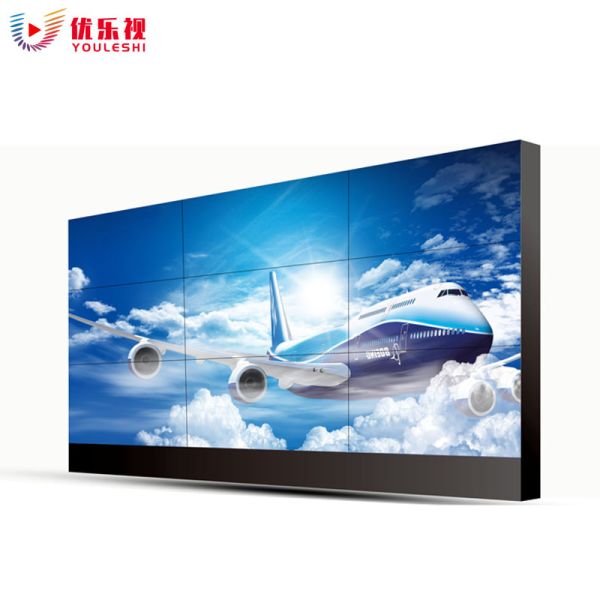

This professional-grade 46" LCD display features an ultra-narrow 3.5mm border design, perfect for creating seamless video walls and digital signage installations.

46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing 46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing 46 Inch High Definition LCD Wall Screen 700nit Brightness For Seamless Splicing
Key Features
  • Industrial design with 80,000 hours continuous operation capability
  • High brightness (700nit), resolution (1920×1080), contrast (4000:1), and wide viewing angle
  • Ultra-narrow 3.5mm double-sided stitching for seamless video walls
  • Direct downward LED backlight system for uniform illumination
  • Built-in splicing controller for multi-screen display functionality
  • 3D digital image processing core for precise detail monitoring
  • Image signal enhancement for stable, accurate image control
  • Advanced image restoration technology improves system reliability
  • Supports multiple signal inputs including HDMI, DVI, and USB
  • Flexible arbitrary splicing display capability
Technical Specifications
Display Specifications
Screen Size 46" DID LCD Panel
Active Display Area 1018.08(W) × 572.67(H) mm
Aspect Ratio 16:9
Bezel Width 3.5mm
Backlight WLED with LED driver
Native Resolution 1920 × 1080 pixels
Brightness 700cd/m²
Contrast Ratio 4000:1 (Typical)
Display Color 8 bit/16.7M colors
View Angle 89°/89°/89°/89° (CR≥10)
Response Time 8ms (Gray to Gray)
Connectivity
Ports 1× HDMI IN, 1× DVI IN, 1× USB, 1× RS232 IN, 2× RS232 OUT
Power Specifications
Working Voltage AC110V~220V 50/60Hz
Maximum Power 250W
Standby Power 0.5W
Environmental Specifications
Working Temperature 0~50°C
Storage Temperature -20~60°C
Lifetime 80,000 hours
Humidity 10~80% RH
Physical Specifications
Chassis Material Metal
Chassis Color Black
Product Size (without brackets) 1022 × 80 × 576.6 mm
Product Size (with brackets) 1022 × 126 × 576.6 mm
Packing Dimensions 1300 × 330 × 785 mm (2 units per carton)
Net Weight 16 kg
Gross Weight 36 kg (2 units)
Included Accessories

Power cable, LAN cable, Hook, Bolts, Remote control, Remote receiver, Converter

Installation Options

Wall mount | Floor stand | Arm bracket | Cabinet
