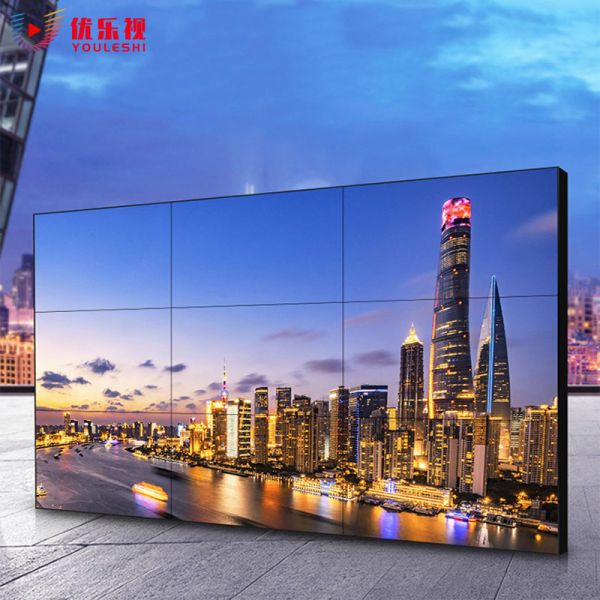

Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Specifications
Brand Name :
YOULESHI
Model Number :
ULS-46PJ03
Place of Origin :
Guangdong, China
Supply Ability :
2000 pieces per month for each product
MOQ :
1pcs
Packaging Details :
Paper box/wooden box/flying box
Certification :
CCC,RoHS,FCC,CE,UN38.3
Delivery Time :
5 working days
Application :
Indoor
Type :
LCD
Color :
FULL COLOR
Supplier Type :
ODM, OEM
Media Available :
datasheet, Photo
use :
advertising publish, shopping mall, welcome display, exhibition hall, subway, Restaurant & Hotel Supplies, education, medical treatment
Function :
SDK
Specification :
Video Wall
Touch Screen Type :
NO
Brightness :
500nit
Display Ratio :
16:9
Response Time :
8ms
Contrast Ratio :
4000:1
Lifespan (hours) :
80000
IP Rating :
IP45
Installation Type :
Wall mounted bracket
Resolution :
1920*1080
View Angle（H/V） :
89°/89°/89°/89(°min)(CR≥10)
Warranty :
1-3Year
After Sales :
Remote Video
Size :
10.1 inch-110 inch
resolution :
1920*1080/3840*2160
OS :
Android/Windows
touch screen :
optional
4G :
optional
warranty :
1-3 year
Life Time :
60000 hours
Connectivity :
WiFi, Bluetooth
Panel :
100% A+ Grade Panel
Picture Format :
mp3, wma, ogg, aac, wav
Color Option :
White/Black or optional
Certificates :
CE FCC ROHS
Usb :
Yes
Max Resolution :
1920*1080/3840*2160
Screen Size :
10.1-110 inches
Operation Humidity Range :
10% to 80%
Osd Language :
English,Chinese
Contrast :
≥ 1000: 1
Input :
AC 110V~240V,50/60Hz, 110W
Touch :
optional
Description
Indoor Ultra Narrow Border High Definition 46 Inches 1.7mm Sewing Physical Advertising Display Screen LCD Video Splicing Wall
Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
Key Features
  • Industrial-grade design with 80,000 hours continuous operation and stable performance
  • High brightness, resolution, contrast ratio, and wide viewing angle
  • Ultra-narrow 1.7mm double-sided stitching border
  • Direct downward LED backlight system
  • Built-in splicing controller for seamless image display
  • 3D digital image processing core for detailed monitoring
  • Image signal enhancement for stable, accurate control
  • Advanced image restoration technology for improved reliability
  • Multiple signal input support
  • Flexible splicing display capability
Technical Specifications
Screen Specifications
Size 46" DID LCD Panel
Active Display Area 1209.6(H) x 680.4(V) mm
Aspect Ratio 16:9
Bezel 1.7mm
Backlight WLED, with LED driver
Native Resolution 1920 × 1080 pixels
Brightness 500cd/m²
Contrast Ratio 4000:1 (Typ.)
Display Color 8 bit/16.7M
View Angle 89°/89°/89°/89° (CR≥10)
Response Time 8ms (Gray to Gray)
Ports
Input/Output 1× HDMI IN, 1× DVI IN, 1× USB, 1× RS232 IN, 2× RS232 OUT
Power
Working Voltage AC110V~220V 50/60Hz
Maximum Power 250W
Standby Power 0.5W
Environmental Specifications
Operating Temperature 0~50°C
Storage Temperature -20~60°C
Lifespan 80,000 hours
Humidity 10~80% RH
Physical Specifications
Chassis Material Metal
Chassis Color Black
Product Size (without brackets) 1020.68 × 69 × 575.27 mm
Product Size (with brackets) 1020.68 × 164 × 575.27 mm
Packing Dimensions 1300 × 330 × 785 mm (2 units per carton)
Net Weight 16 kg
Gross Weight 36 kg (2 units)
Included Accessories

Power cable, LAN cable, Hook, Bolts, Remote control, Remote receiver, Converter

Installation Options

Wall mount, Floor stand, Arm bracket, Cabinet

Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition Indoor 46 Inches LCD Video Wall With 1.7mm Ultra Narrow Border 1920*1080 High Definition
