5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
Specifications
Brand Name :
HuaXin
Model Number :
ESHX050005-PB-MS01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$15.35
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
tft panel
name :
TFT module
size :
5 inch
resolution :
800X480
Brightness :
400c/d
Interface :
SPI
Driving IC :
ST7262
Description
5 Inch TFT Display Module with PCB - 800×480 SPI Interface (ST7262 IC)
Product Specifications
Attribute Value
Part Number ESHX050005-PB-MS01
Display Technology TFT Panel
Size 5 inch
Resolution 800×480 dots
Brightness 400 cd/m²
Interface SPI
Driving IC ST7262
View Angle All directions
Outline Dimensions 120.70(W) × 75.50(H) × 6.83 mm
Active Area 108.0 × 64.80 mm

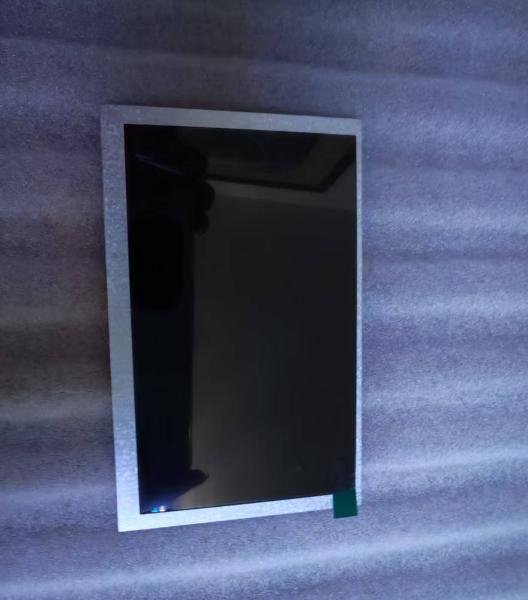

Product Images
5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D 5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D 5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D 5 Inch Spi Tft Touch Screen Spi Touch Display 800X480 Driving IC ST7262 400c/D
Technical Diagrams
TFT Technology Overview
Key Advantages of TFT Displays
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient compared to other display technologies
  • Available in various sizes for diverse applications
  • LED backlighting for consistent illumination
Considerations for TFT Displays
  • Viewing angles may be limited compared to some newer technologies
  • Contrast ratio may be lower than alternative display types
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in physical form factor
  • Color gamut may be narrower than some alternatives
Applications
  • Car navigation systems and printers
  • Video communication and digital advertising
  • Automotive displays and medical devices
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD

Founded in 2009 in Hubei, Enshi

High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED technologies

Product Capabilities
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D team: 10% of workforce
  • Quality control: 15% of workforce
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certification for LCD modules
Production Capacity
Product Type 2021 2022 Goal 2023 Goal 2024 Goal 2025 Goal
LCD (Thousands/Day) 4.5 9 9 9 9
LCM (Thousands/Day) 70 150 300 450 450
Backlight (Thousands/Day) 100 200 300 500 500
OLED (Thousands/Day) 10 20 30 40 50
