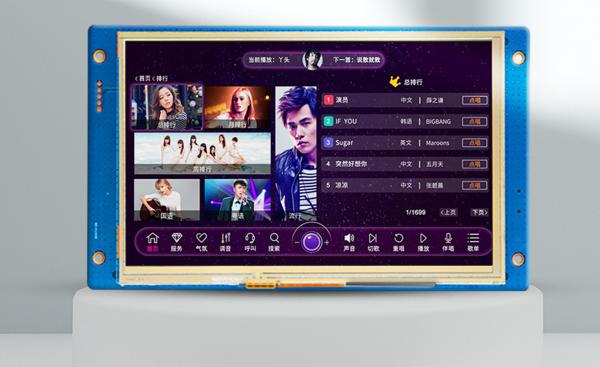

7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
Specifications
Brand Name :
HuaXin
Model Number :
HX7003LH80CG48
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$20.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
lcd tft display module
name :
uart tft display
size :
7 inch
resolution :
800×480
Brightness :
300c/d
Interface :
10 pins uart
Description
7 Inch TFT Display Module with PCB and RTP

High-quality 7-inch TFT display module featuring 800×480 resolution, 300cd/m² brightness, and UART interface with 10-pin connector.

Key Specifications
Attribute Value
Display Technology LCD TFT Display Module
Size 7 inch
Resolution 800×480
Brightness 300cd/m²
Interface 10 pins UART
Technical Parameters
Part No. HX7003LH80CG48
TFT Size 7 inch with RTP
LCD Type UART Display
Outline Size 190.5mm (W)×105.4mm (H)×13.0mm
Display Area 155.08mm (W)×86.92mm (H)
Serial Mode UART: ON=TTL/CMOS; OFF=RS232
Touch Panel RTP
Flash Space 128M bytes
LCM Interface RGB
User Interface 10Pin_1.0mm latching socket
View Angle 70°/70°/50°/70°
Product Images
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display 7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display 7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display 7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
TFT Technology Overview
7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display 7 Inch TFT LCD Modules With RTP 800×480 Resolution RGB Interface 300c/D Uart Tft Display
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth display performance
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Versatile sizing options for various applications
  • LED backlighting for consistent illumination
Manufacturer Advantages
  • Cost-effective production facility in inland China
  • Advanced equipment for stable quality control
  • Automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities for specialized products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
Specialization: Research, development, and production of LCD, LCM, TFT, backlight, and OLED technologies

Product Range:
LCD: VA, TN, HTN, STN, FSTN, CSTN series
LCM: COB, TBA, COG, TP, LED backlight series

Company Stats:
Registered capital: 20 million
Employees: 500+
R&D: 10% of workforce
QC: 15% of workforce

Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand/Day
Backlight Production 100 200 300 500 500 Thousand/Day
OLED Production 10 20 30 40 50 Thousand/Day
Applications
  • Car navigation systems and printers
  • Video communication and advertising displays
  • Automotive and medical devices
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
TFT Display Considerations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
