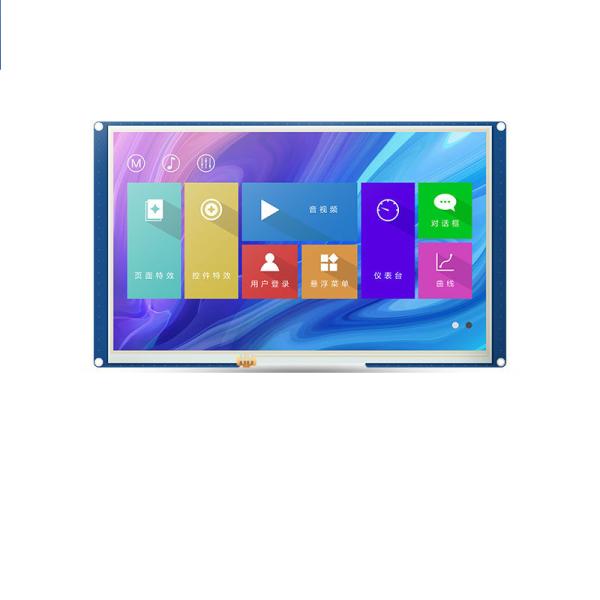

10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
Specifications
Brand Name :
HuaXin
Model Number :
HXG1060X5A1
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$52
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
lcd tft touch
name :
tft lcd touch
size :
10.1 inch
resolution :
1024x600
Brightness :
300c/d
Interface :
HDMI
Touch panel :
RTP
Description
10.1 Inch TFT Display Module with PCB and RTP Touch Panel
Key Specifications
Attribute Value
Display Technology LCD TFT Touch
Size 10.1 inch
Resolution 1024×600
Brightness 300 cd/m²
Interface HDMI
Touch Panel RTP (Resistive Touch Panel)
View Angle 12:00 O'Clock
Technical Parameters
Parameter Value
Part No. HXG1060X5A1
Panel Type 10.1 inch TN with UART LCD
Module Dimensions 258×152×11.5 mm
Display Area 222.72×125.28 mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Flash Space 128MB
Product Images
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness 10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness 10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness 10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
TFT Technology Overview
10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness 10.1 Inch Tft Touch Screen 1024x600 Hdmi Tft Display 300c/D Brightness
Manufacturer Advantages
  • Cost-effective production facility located in inland city
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience in LCD field
  • Custom design capabilities for specialized products
Certifications
  • ISO14001 Environmental Management System
  • ISO9001/IATF16949 Quality Management System
  • SGS Certified LCD Modules
Company Profile

Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products
Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs
Registered Capital: 20 million
Employees: 500+ (10% R&D, 15% QC)

Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & digital advertising
  • Automotive displays & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • High image quality with excellent resolution and color accuracy
  • Fast response times for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for diverse applications
  • LED backlighting for bright, uniform illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio may be lower than alternative displays
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
