0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
Specifications
Brand Name :
HuaXin
Model Number :
ESHX0990416THBIG01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$1.35
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
0.99 inch tft display
name :
tft oled display
size :
0.99 inch
resolution :
40X160
Brightness :
400c/d
Interface :
SPI4 LINE
view angle :
all
Description
0.99 inch bar type TFT display module 40X160 dots SPI4 LINE interface driving IC GC9D01 400c/d
Product Attributes
Attribute Value
Display Technology 0.99 inch TFT display
Name TFT OLED display
Size 0.99 inch
Resolution 40X160
Brightness 400c/d
Interface SPI4 LINE
View angle All
Technical Parameters
Part NO. ESHX0990416THBIG01
Display Technology TFT display module
Diagonal Screen Size 0.99 inch
Resolution 40X160
Viewing Angle Free
Active Area (mm) 6.096(H) x 24.384
Module Size(mm) 13.5x 27.95 x1.5
Interface SPI4 LINE
Driving IC GC9D01
Brightness 400c/d

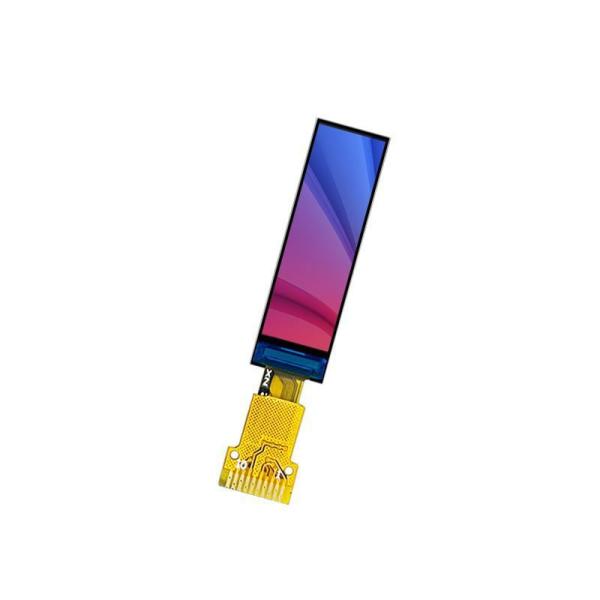

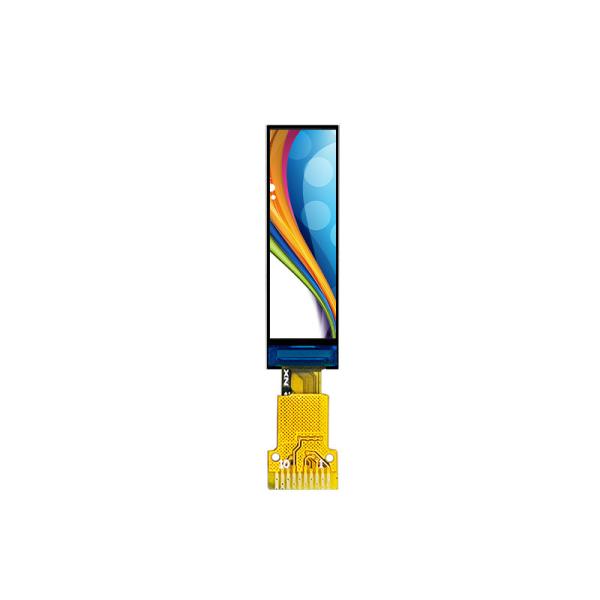

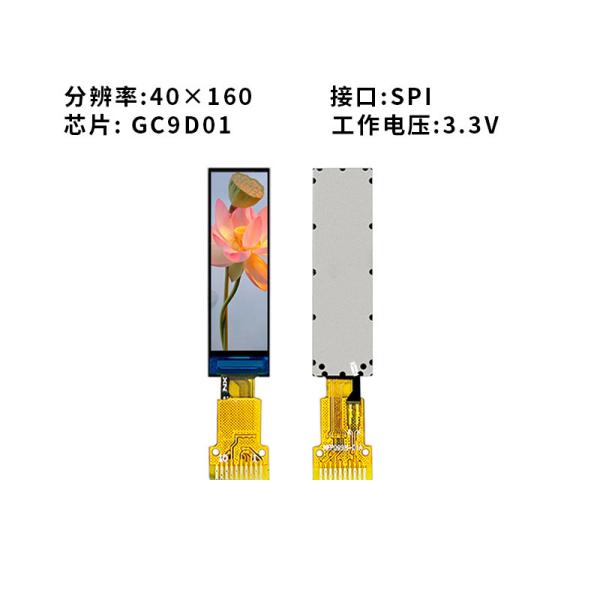

Product Images
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
Drawing & Pin Definition
0.99 Inch Bar Type TFT 40X160 SPI4 LINE Interface Driving IC GC9D01 400c/D
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

TFT structure:

Huaxin Advantage
Factory base located at inland city which has cost effective
Most advanced new equipment which can keep quality stable
Most processes using fully automatic equipment which has efficiency and stable quality
Professional engineers and production leaders who works in LCD field for more than 20 years
Self design for customized product

Our Certificates:

1. ISO14001

2. ISO9001/IATF16949

3. SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

- Hubei.Enshi

- Date of foundation: 2009

- High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

- LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series

- LCM includes: COB, TBA, COG, TP, LED backlight and other series

- Register capital: twenty million

- Current staff: 500+

- RD accounts for 10%

- QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
  • Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
  • Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.
  • Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
  • Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.
  • Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.
  • Wide Applications: Suitable for various industrial and commercial uses.
Limitations of TFT Displays
  • Limited Viewing Angles: Some models may have restricted optimal viewing angles.
  • Limited Contrast Ratio: May not achieve the deep blacks of other display technologies.
  • Backlighting and Power Consumption: Requires backlighting which can affect power efficiency.
  • Response Time and Motion Blur: May exhibit motion blur in fast-moving images.
  • Limited Flexibility: Typically rigid compared to newer flexible display technologies.
  • Limited Color Gamut: May not reproduce the full range of colors available in some applications.
