2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
Specifications
Brand Name :
HuaXin
Model Number :
HX031B001
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$6~$100
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
spi tft display
size :
2.51 inch TFT display
resolution :
440*696
Brightness :
850c/d
Interface :
MIPI
Driving IC :
ST7701SN-G5-1
Description
2.51-inch IPS TFT LCD display integrates touch function and boasts 850 nits high brightness, ensuring clear visuals even in bright environments. With 440×696 resolution and IPS technology, it delivers vivid colors and wide viewing angles.
Equipped with a MIPI interface for seamless integration, this compact display is ideal for portable devices, smart wearables, and industrial control panels, offering reliable performance and easy assembly.

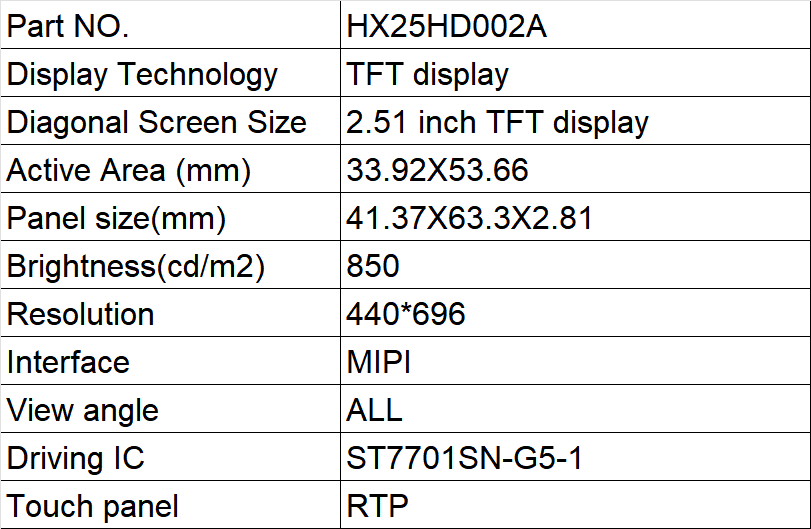

Key Specifications:
Part No: HX25HD002A
Size 2.51 inch TFT display
Resolution 440*696
Brightness(cd/m2) 850 c/d
Active Area 33.92X53.66mm
Outline dimension 41.37X63.3X2.81mm
Interface MIPI
View Angle ALL
Operating temperature -20~70
driving IC ST7701SN-G5-1

Technical Drawing
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
TFT Product Knowledge
TFT Substrate Input and CF Substrate Input Flow Chart
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
TFT Structure
2.51 inch TFT Color Display with RTP 440*696 Resolution and MIPI Interface 850 c/d brightness
Our advantage
  • Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
  • Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

  • Certifications: ISO14001, ISO9001/IATF16949, SGS

  • Cost-effective production base located in inland city

    •Advanced equipment ensuring stable quality

    • Highly automated processes for efficiency and consistency

    • Experienced engineering team with 20+ years in LCD field

    •Custom product design capabilities

Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
