Specifications
Brand Name :
HuaXin
Model Number :
HX168BAR010
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$2-$3
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
TFT module
Name :
tft panel
Display size :
2.79 inch
Resolution :
142*428
interface :
4 LINE MIPI
Driving IC :
NV3007
Brightness :
350C/D
view angle :
all
Description
2.79-inch TFT LCD Color Screen
2.79-inch TFT LCD long strip color screen with 142×428 resolution and NV3007 driver chip. Features serial port interface for high-definition display, suitable for industrial equipment status bars and smart terminal data screens. Plug-and-play design with narrow space adaptation.
Key Features
  • 2.79-inch TFT LCD color screen with 142×428 long strip resolution
  • NV3007 driver chip with 4 LINE SPI interface
  • Designed for industrial equipment status bars
  • Compact design for easy installation in narrow spaces
  • Stable display performance with 350C/D brightness
  • Wide viewing angle for all orientations
Technical Specifications
Display Technology TFT module
Display Size 2.79 inch
Resolution 142×428
Interface 4 LINE SPI
Driving IC NV3007
Brightness 350C/D
View Angle All
Part No. HX279BAR010
Outline Size (mm) 69.43(H)*24.38(V)*2.15(D)
AA Size (mm) 21.28*64.14mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

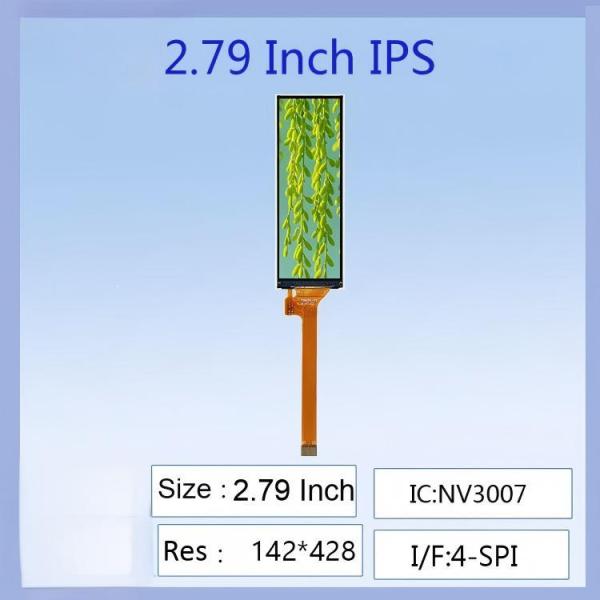

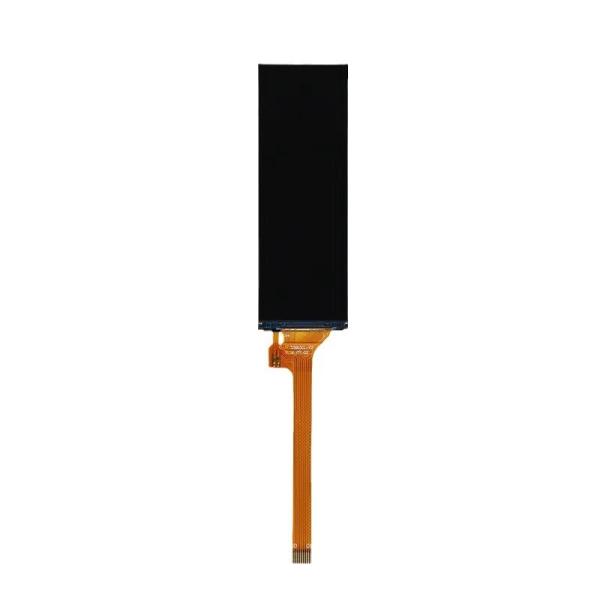

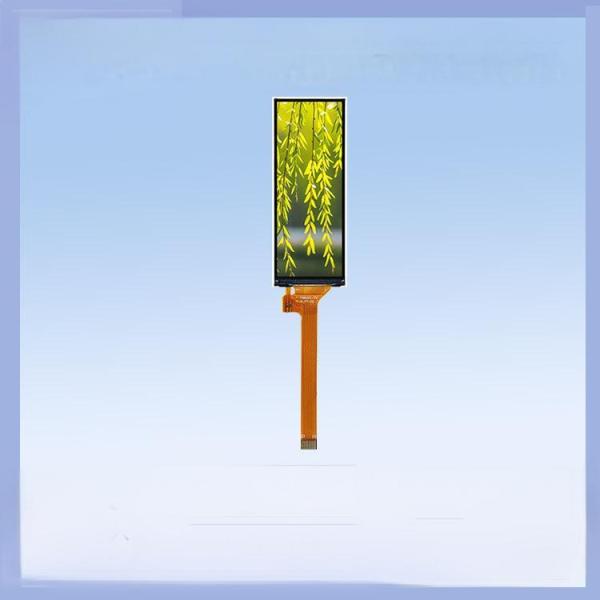

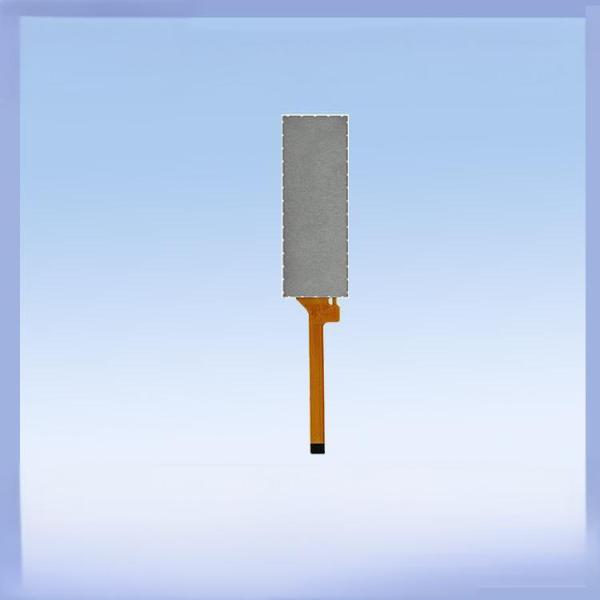

Product Images

2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars, easy to install in narrow spaces, stable display
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars, easy to install in narrow spaces, stable display
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars, easy to install in narrow spaces, stable display
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars, easy to install in narrow spaces, stable display
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars, easy to install in narrow spaces, stable display
TFT Product Knowledge

2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars, easy to install in narrow spaces, stable display
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars, easy to install in narrow spaces, stable display
Manufacturer Advantages
  • Cost-effective factory location in inland city
  • Advanced equipment ensuring stable quality
  • Automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities
About Huaxin Technology (Enshi) Co., LTD
Located in Hubei Enshi, founded in 2009. High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.
Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation & printers
  • Video calls & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
