3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S
3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S
3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S
3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S
3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S
3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S
Specifications
Brand Name :
HuaXin
Model Number :
HX037FI-B40-04214C1
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$7.5~$6.9
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
bar type tft display
Name :
bar type LCD
Display size :
3.7 inch tft
Resolution :
240X960
interface :
40 PINS RGB
Driving IC :
ST7701S
Brightness :
350cd/m2
View angle :
all
Description
3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S
Product Overview

HX037FI-B40-04214C1 is 3.71 Bar Type TFT display , 240X960 Resolution, 40 PINS RGB interface, brightness is 350cd/m2 TFT LCD, tft Module Driver IC ST7701S, view angle is free

Key Specifications
Part No: HX037FI-B40-04214C1
Panel size 3.71 inch bar TFT
LCD type IPS
Module Size 25.3*98.89*2.1
Display Area 22.86 *91.44
Number of Dots 240X960
View angle ALL
Module Driver IC ST7701S
Interface Pins 40 PINS RGB
Luminance 350cd/m2
Operating Temp -20~70
Storage Temp -30~80

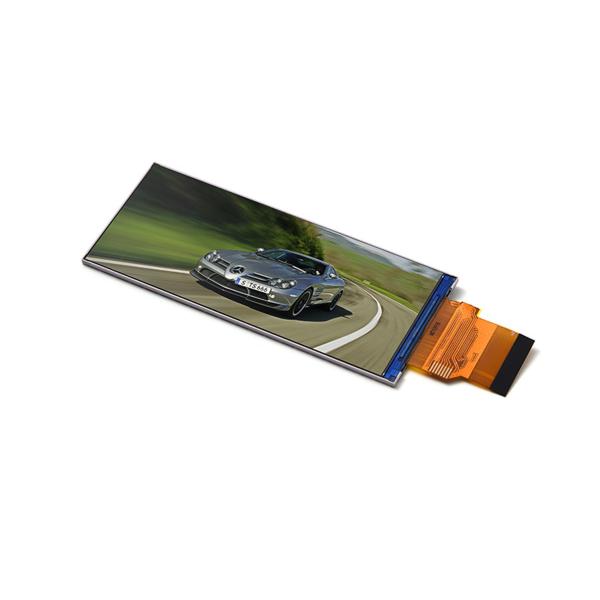

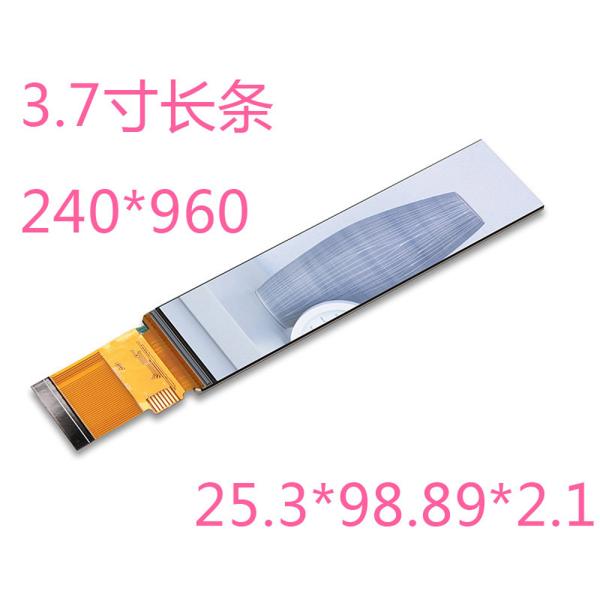

Product Picture

3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S

3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S

3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S




Technical Drawings
3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S 3.71 Inch Bar Type LCD 240X960 40 PINS RGB Interface driving IC ST7701S
TFT Display Characteristics
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response time for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient with lower power consumption
  • Available in various sizes from small to large panels
  • LED backlighting for uniform illumination
  • Versatile applications across multiple industries
Product Applications
  • Car navigation systems & printers
  • Video communication & digital advertising
  • Automotive displays & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
Company Advantages
  • Cost-effective operations with inland factory location
  • Advanced equipment ensuring stable product quality
  • Fully automated production processes
  • Professional engineering team with 20+ years experience
  • In-house design capability for customized solutions
Certifications
ISO14001 Environmental Management
ISO9001/IATF16949 Quality Management
SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi | Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products

Product Range
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series

Registered Capital: 20 million | Employees: 500+
R&D: 10% of workforce | Quality Control: 15% of workforce

Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
