3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
Specifications
Brand Name :
HuaXin
Model Number :
ESHX338I-B30MCU
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$5.8~$5.3
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
bar type display
Name :
bar type LCD
Display size :
3.4 inch tft
Resolution :
180X640
interface :
16pins MCU
Driving IC :
AXS15230
Brightness :
300c/d
View angle :
all
Description
3.4 inch bar type TFT Display 180X640 Resolution
Key Specifications
Part NO. ESHX338I-B30MCU
Panel size 3.4 inch bar type TFT
Resolution 180X640
Viewing Angle All View
Operation Temperature -10~70
Panel Size(mm) 25.7X88X2.1
Active Area (mm) 25.7X83.8X2.1
Backlight white 25pcs LED
Brightness(cd/m2) 300CD/M2
Interface 16pins MCU
drive IC AXS15230
TOUCH PANEL /

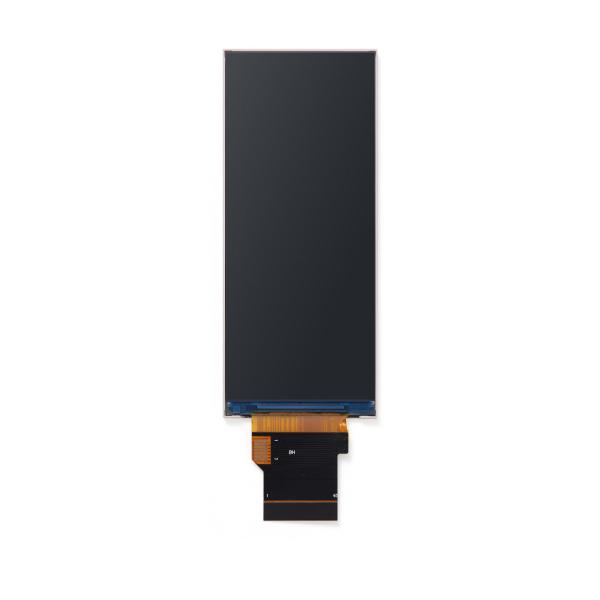

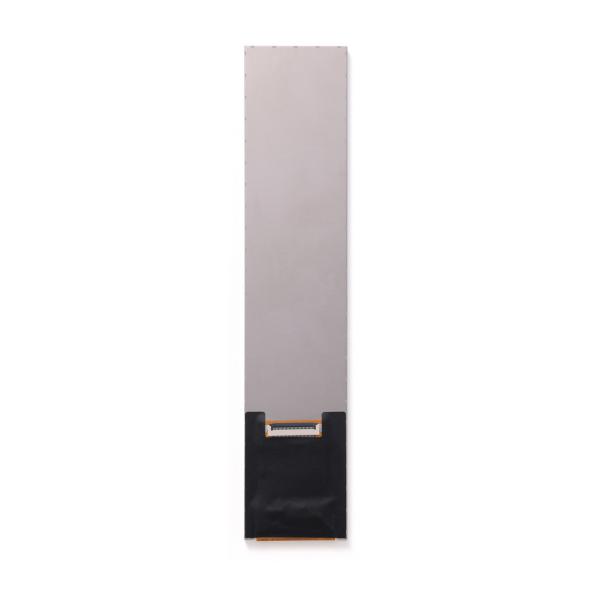

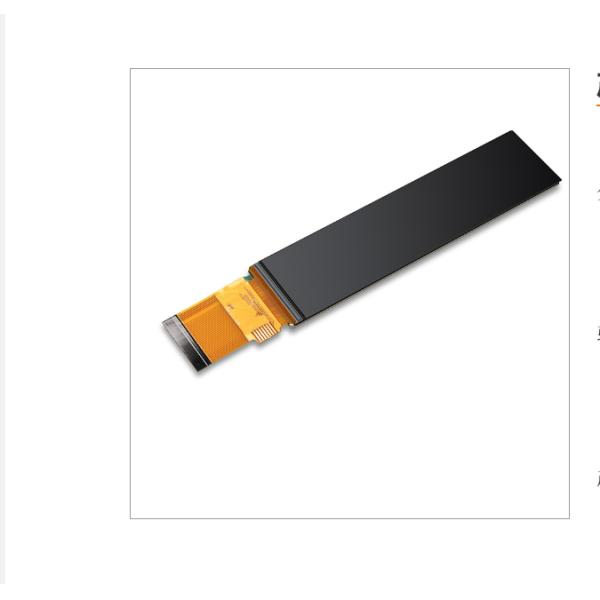

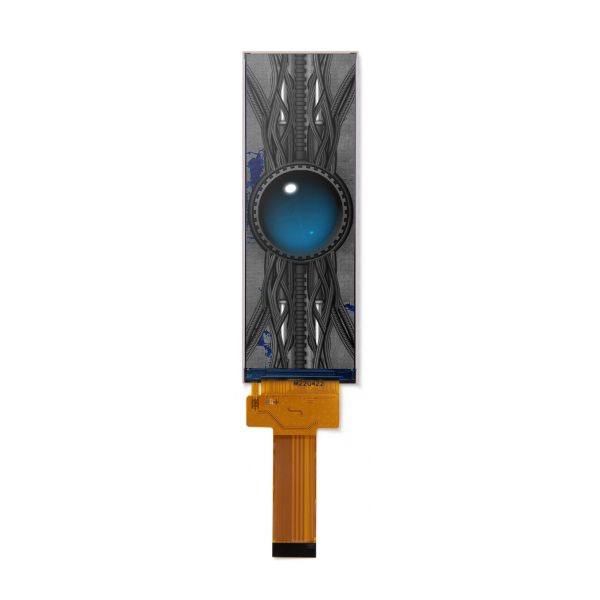

Product Images

3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²

3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²

3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²

3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²

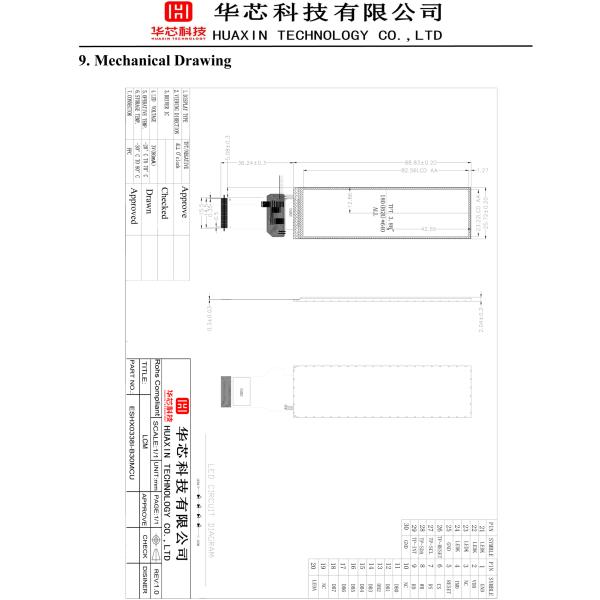

Technical Drawings
3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²

3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m² 3.4 inch bar type TFT Display 180X640 Resolution 16pins MCU Interface 300cd/m²
TFT Display Characteristics
  • Image Quality: Excellent with high resolution, sharpness, and color accuracy
  • Response Time: Fast switching of pixels for smooth motion
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption compared to alternatives
  • Size Options: Available in various sizes from small to large panels
  • Backlighting: LED backlighting for illumination
  • Applications: Versatile usage across multiple industries
Product Applications
  • Car navigation systems & printers
  • Video communication & digital advertising
  • Automotive displays & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
Company Advantages
  • Cost-effective operations with inland factory location
  • Advanced equipment ensuring stable product quality
  • Fully automated production processes
  • Professional engineering team with 20+ years experience
  • In-house design capability for customized solutions
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD

Location: Hubei, Enshi | Founded: 2009

Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products

Product Range
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series

Registered Capital: 20 million | Employees: 500+

R&D: 10% of workforce | Quality Control: 15% of workforce

Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
