Specifications
Brand Name :
HuaXin
Model Number :
HX103VAN01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$20~$60
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
bar type tft LCD
Name :
bar type tft
Display size :
6.8 inch tft
Resolution :
480*1280
interface :
MIPI
Brightness :
400c/d
View angle :
all
Description
6.8" Long Strip Audio TFT-LCD Screen, 480×1280, MIPI Interface, High Clarity for Smart Speaker/Hi-Fi Equipment

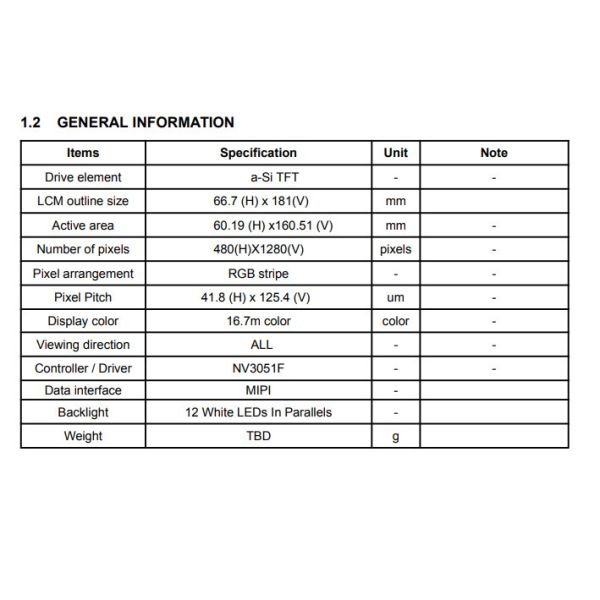

Key Specifications
Part No. HX68001C40
Panel Size 6.8 inch TFT
Display Area (mm) 60.19(H)*160.51(V)
Number of Dots 480*1280
View Angle ALL
Interface Pins MIPI
Luminance 400c/d
Contrast Ratio 1000
Working Temperature -20~70°C
Storage Temperature -20~70°C

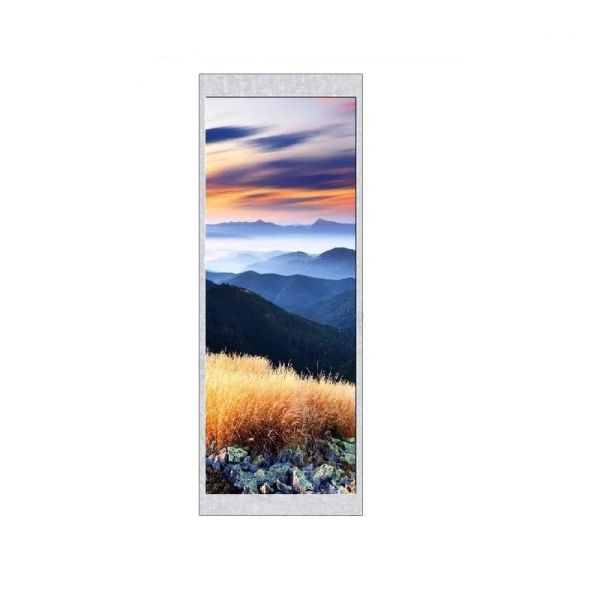

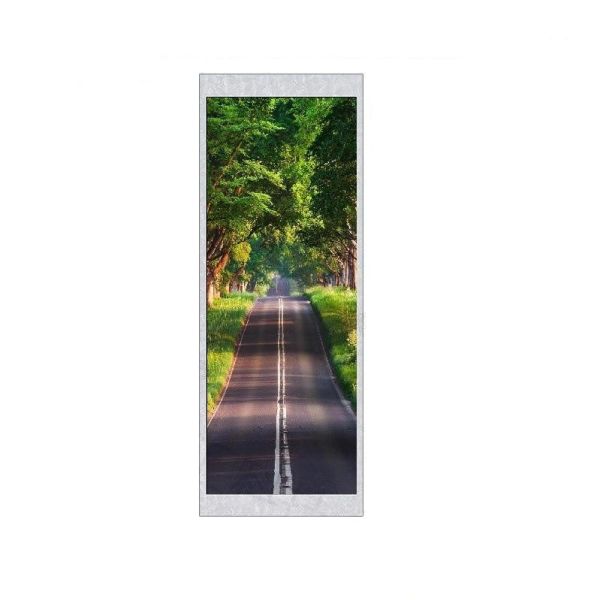

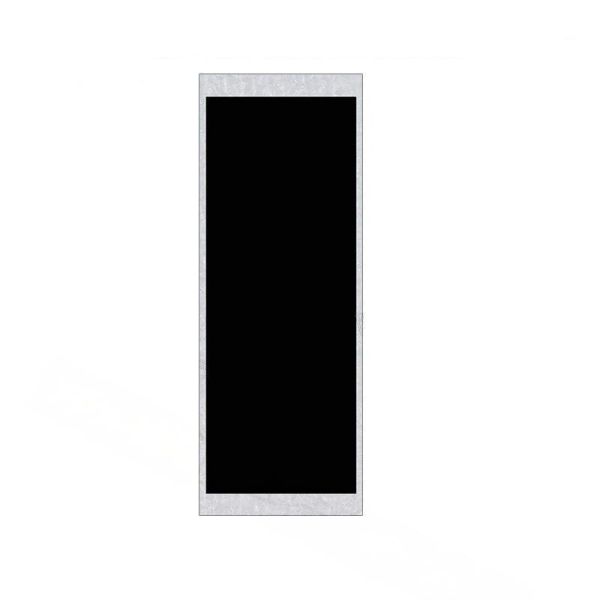

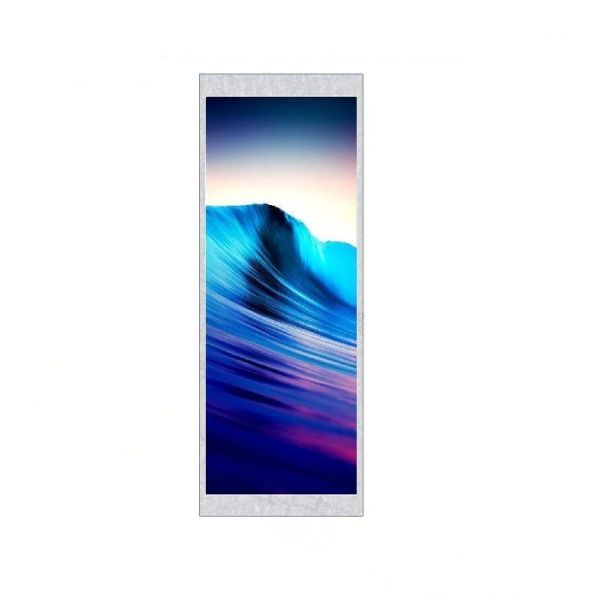

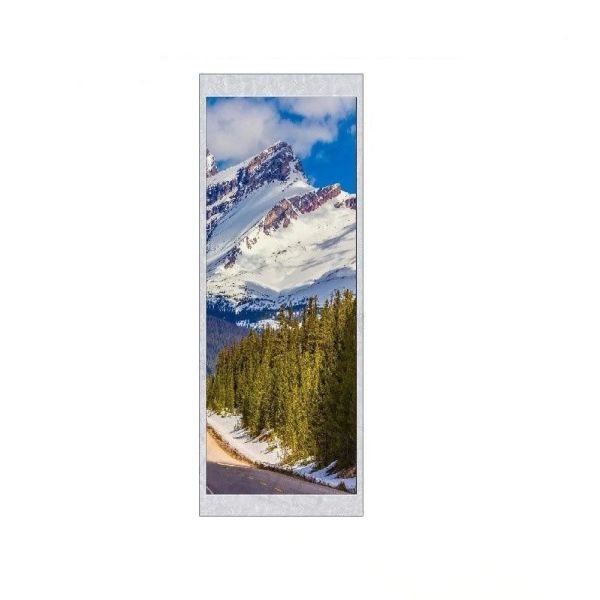

Product Images
6.8
6.8
6.8
6.8
6.8

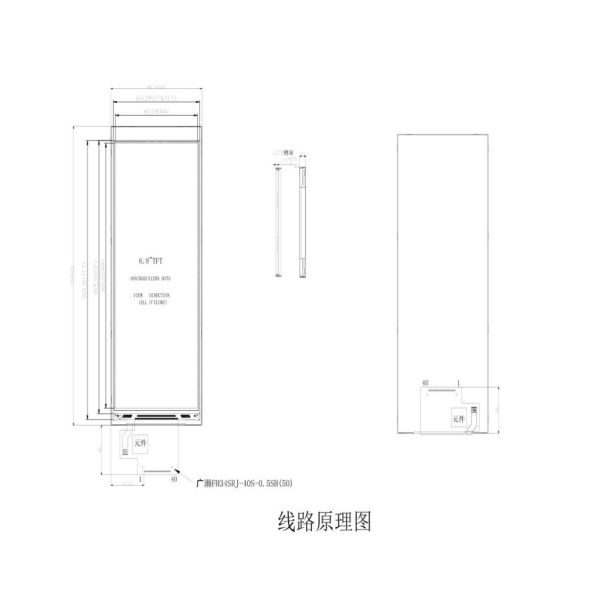

Technical Drawings
6.86.8

TFT Display Characteristics
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response time for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient with lower power consumption
  • Available in various sizes from small to large panels
  • LED backlighting for uniform illumination
  • Versatile applications across multiple industries
Product Applications
  • Car navigation systems & printers
  • Video communication & digital advertising
  • Automotive displays & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
Company Advantages
  • Cost-effective operations with inland factory location
  • Advanced equipment ensuring stable product quality
  • Fully automated production processes
  • Professional engineering team with 20+ years experience
  • In-house design capability for customized solutions
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS certified LCD modules
Company Profile
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi | Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products
Product Range
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series
Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
