Specifications
Brand Name :
Maxell
Model Number :
CR2032HR/CR2050HR/CR2450HR
Certification :
ROHS
Place of Origin :
JP
MOQ :
1
Price :
6
Payment Terms :
T/T,Western Union
Supply Ability :
1000
Delivery Time :
5-8DAY
Packaging Details :
T/R
Model :
CR2032HR/CR2050HR/CR2450HR
Nominal voltage (V) :
3
Nominal capacity (mAh)*1 :
200/350/550
Nominal discharge current (mA) :
0.2
Operating temperature range (deg. C)*2 :
-40 to +125
Acceleration resistance :
Max. 2000 G
Diameter (mm) :
20.0/20.0/24.5
Height (mm) :
3.2/5.0/5.0
Weight (g)*3 :
3.0/4.1/6.8
Description

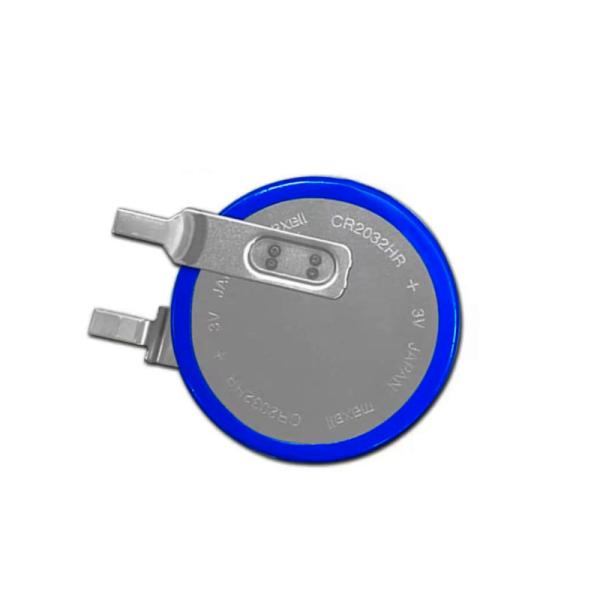

Heat Resistant Coin Type Lithium Manganese Dioxide Batteries (CR) industrial lithium batteries CR2032HR CR2050HR CR2450HR


Maxell’s original sealing technology and highly heat-resistant material expands operating temperature range remarkably, making the batteries supremely suitable for automobile applications — for powering TPMS (Tire Pressure Monitoring System) sensors, for example.
The range of technologies where these batteries can be applied is expanding to include IoT sensors and HACCP temperature loggers that require a wide operating temperature range.


Features

Wide operating temperature range: -40 deg. C to +125 deg. C*

* When using at temperatures exceeding 85 deg. C, please consult Maxell in advance for conditions of use.

Superior leak-resistant characteristics even under high temperature and acceleration.

Can be used even under 2000 G, which is equivalent to driving at 300 km/h.

Even when exposed to high temperature or humid atmosphere for long periods of time, the increase in internal resistance can be suppressed.

UL Recognized Components

The heat resistant coin type lithium manganese dioxide battery is a UL recognized component. (Technician Replaceable)

Recognized model: CR2450HR, CR2050HR, CR2032HR, CR2032HRS

Certification Number: MH12568

Applications

  • TPMS (Tire-Pressure Monitoring System)
  • ETC (Electronic Toll Collection systems)
  • Keyless entry systems
  • Seat location sensors
  • Communication tags, beacons
  • Temperature data loggers (HACCP temperature loggers)
  • Logistics tags
  • FA instruments (measuring instruments, onboard microcomputers, sensors)
  • IoT sensors


Model CR2032HRS CR2032HR CR2050HR CR2450HR
Nominal voltage (V) 3 3 3 3
Nominal capacity (mAh)*1 200 200 350 550
Nominal discharge current (mA) 0.2 0.2 0.2 0.2
Operating temperature range (deg. C)*2 -40 to +125
Acceleration resistance Max. 3300 G Max. 2000 G
Dimensions*3 Diameter (mm) 20.0 20.0 20.0 24.5
Height (mm) 3.2 3.2 5.0 5.0
Weight (g)*3 3.0 3.0 4.1 6.8


Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

Heat Resistant Coin Lithium Ion Battery Manganese Dioxide Batteries Industrial CR2032HR

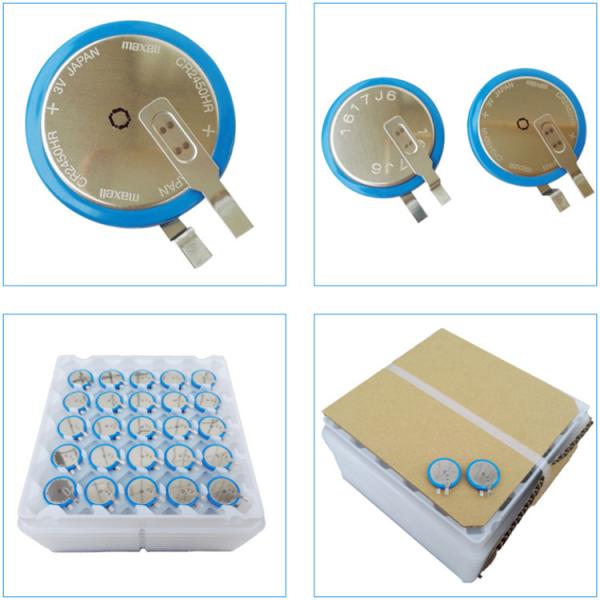

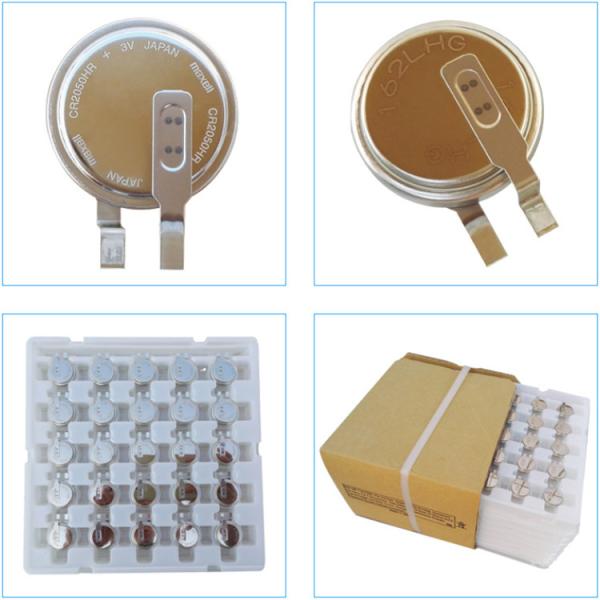

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.


Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.


2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.


3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.


4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.


5. How do you help our business establish a long-term and good relationship?


We maintain good quality and competitive prices to ensure that our customers benefit.
