Rubber Rod Antenna Single-soldier Backpack Communication Antenna Unmanned Aerial Vehicle Antenna Radio Frequency Antenna Satellite Communication Antenna

Timing antenna

1. The antenna unit has a high gain and a wide pattern beam, ensuring that the reception effect of low-elevation Angle signals can still be normal in situations with severe occlusion.

2. Built-in lightning protection circuit effectively protects the amplifier and makes it less likely to be damaged when working in harsh outdoor environments.

3. Waterproof and UV-resistant outer cover ensures that the antenna can work outdoors for a long time. 4. The antenna is integrated with a timing module, which outputs PPS second pulses through differential lines, simplifying the complexity of the base station system and enhancing system reliability.

Satellite antenna

The Big S handheld antenna is a transceiver antenna applied to the mobile communication of the Tiantong-1 satellite. The antenna features high gain, wide beam width, and low axial ratio. It is compact in size, easy to integrate, and highly customizable. It is widely applied in handheld terminal devices for military communication, emergency rescue, border patrol police, etc.

1. Support S-band two-way communication;

2. Compact in size, easy to integrate, it can effectively reduce the load on handheld devices and extend battery life.

3. The antenna has high low-elevation gain and good circular polarization performance.

4. It can be flexibly customized according to customer needs.

Helical antenna

The four-tube spiral design scheme is adopted to achieve the coincidence of the phase center and the geometric center, minimizing the influence of the antenna on the measurement error.

2. The antenna unit has a high gain and a wide pattern beam, ensuring that the reception effect of low-elevation Angle signals can still be normal in severely occluded conditions, such as when aviation equipment is flying at an Angle.

3. The antenna is small in size, light in weight and low in power consumption, which can effectively reduce the load on light equipment and increase the battery life.

Measuring antenna

1. The antenna adopts a single-layer multi-feed point ultra-wideband design, ensuring phase throughout the entire working frequency band

The central elevation difference is the smallest.

2. The antenna unit has high gain and low gain roll-off, providing excellent signal reception for low-elevation satellite signals and ensuring normal satellite reception even in areas with severe occlusion.

. 3. The low-noise amplifier adopts pre-filtering technology, effectively suppressing out-of-band interference signals and enhancing the reliability of the system.

4. The reactance network diameter suppression technology effectively reduces the influence of multi-path signals on measurement accuracy. 5. The waterproof and UV-resistant outer cover provides a guarantee for the antenna to work outdoors for a long time.

Counter fiberglass reinforced plastic antennas

A countermeasure device composed of an interference device and a countermeasure fiberglass antenna is used to interfere with the FPV, causing it to lose its normal working ability or be unable to accurately track the target.

The anti-FRP antenna features efficient interference, multi-band coverage, portability and flexibility. With advantages such as 360-degree protection and high system integration, it has played a significant role in anti-drone operations. The anti-FRP antenna is mainly applied in fixed unmanned aerial vehicle anti-jamming equipment, integrated anti-jamming backpacks for reconnaissance and strike, portable electronic jamming systems, omnidirectional anti-jamming backpacks, single-channel portable FPV jammers and other devices

FRP antenna

FRP antennas (SMC) and their molded products, as emerging products made of glass fiber reinforced plastics, feature high precision, high efficiency, high gain, corrosion resistance, long service life and strong wind resistance. Antennas of various frequency categories such as 2G, 3G, 4G, G2 and 4G can be produced according to the frequency.

Outdoor omnidirectional fiberglass reinforced plastic antennas are used for large-scale outdoor signal coverage, meeting the requirements of high-gain coverage or reception in all directions. They are suitable for large-area undifferentiated coverage, squares, seas, roads and other fields.

White, black and grey shells

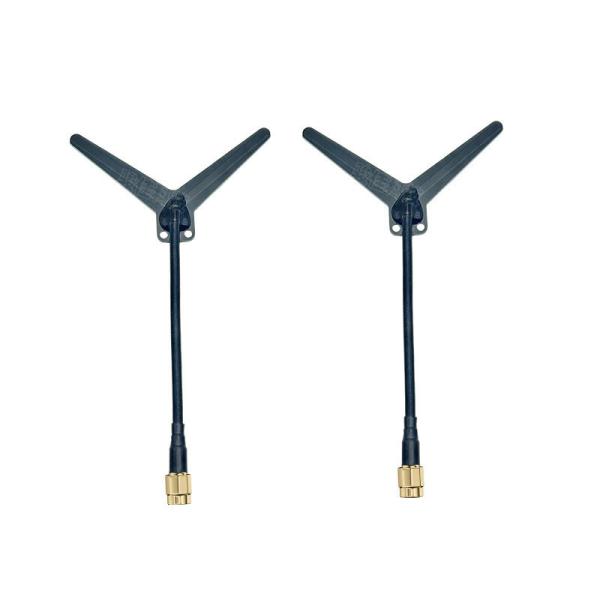

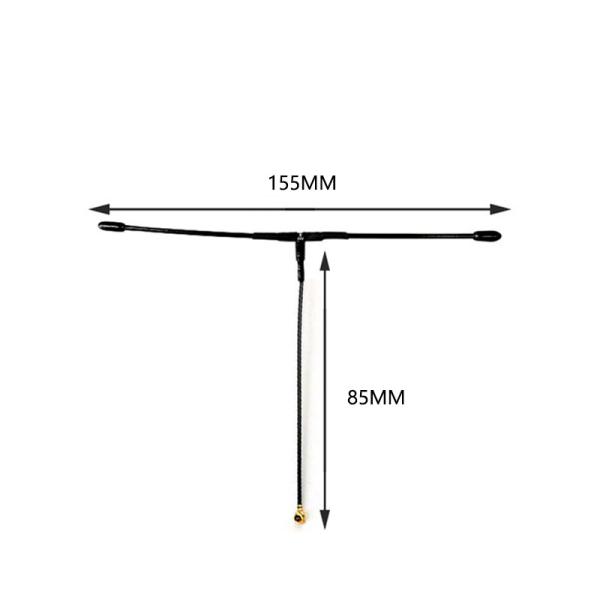

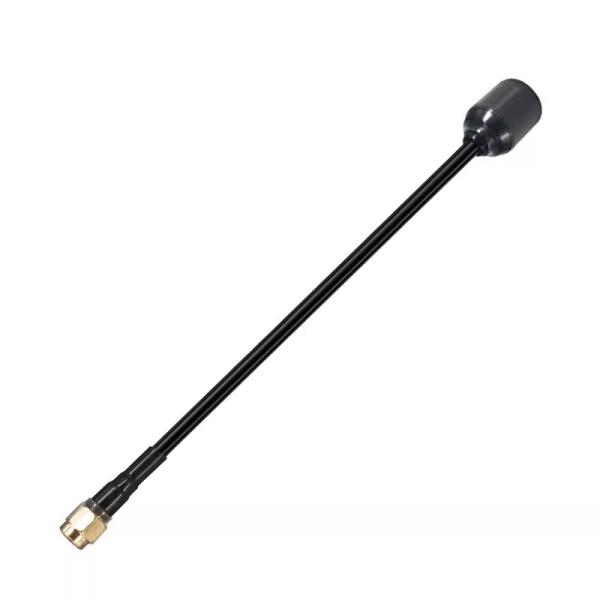

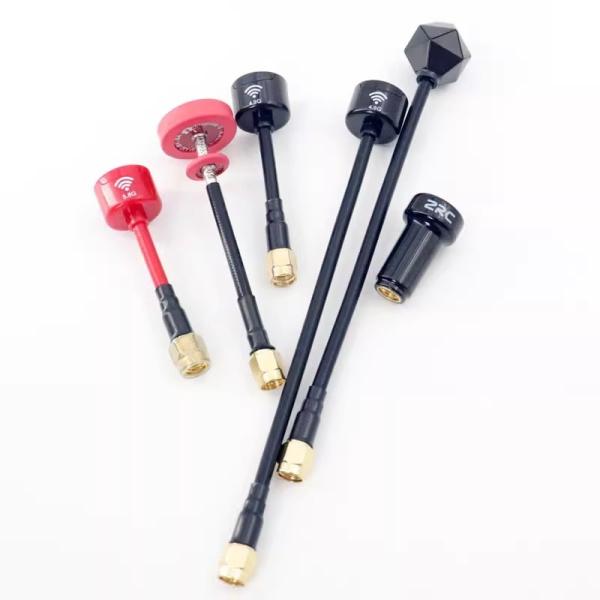

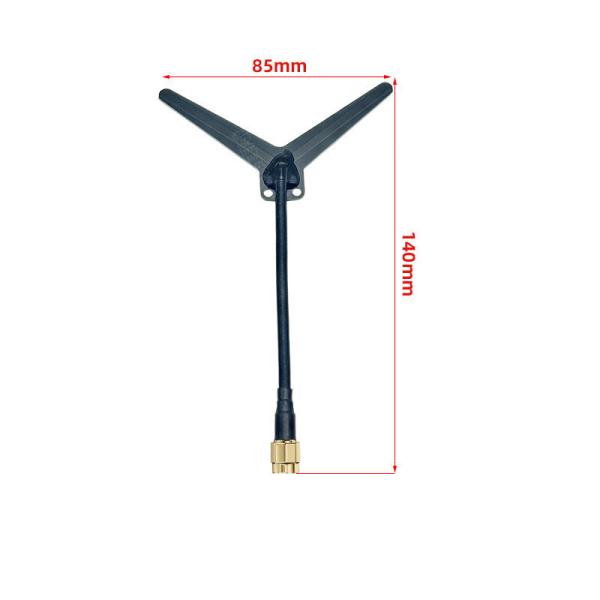

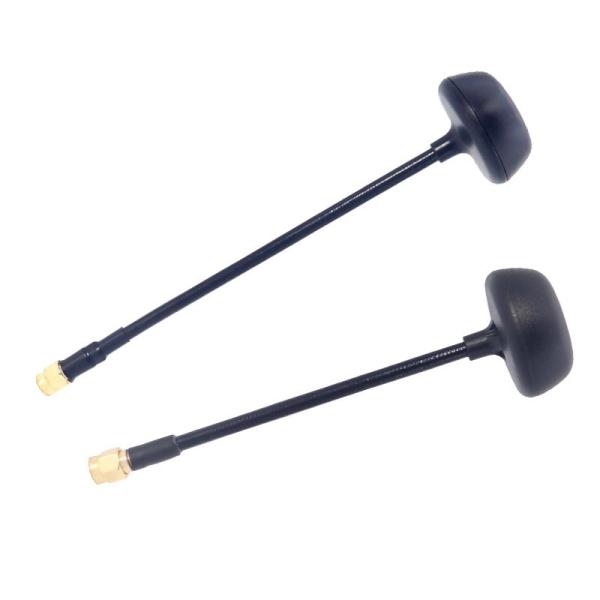

Unmanned aerial vehicle antenna

The product features high cost performance, diverse appearances, a standing wave ratio of less than 1.5, high gain to increase transmission distance, flexible bending, stability, low loss, compact size and easy installation

. It is widely applied in FPV drones, racing drones, unmanned aerial vehicles, AR glasses, FPV transmitters, and wireless video transmission devices

Suction cup antenna

Suction cup antennas include small suction cup antennas, large suction cup antennas, and waterproof small suction cup antennas. According to frequency, they can be classified into 315/433/490/868/915 MHZ suction cup antennas and 2.4G small suction cup antennas.

It features excellent standing wave ratio performance, stable signal, low loss, compact size and easy installation.

It is widely applied in wireless communication of Internet of Things products, such as smart electricity meters, smart signal collection, LORA solutions, NB-IOT solutions, WIFI module solutions, and 4G module solutions.

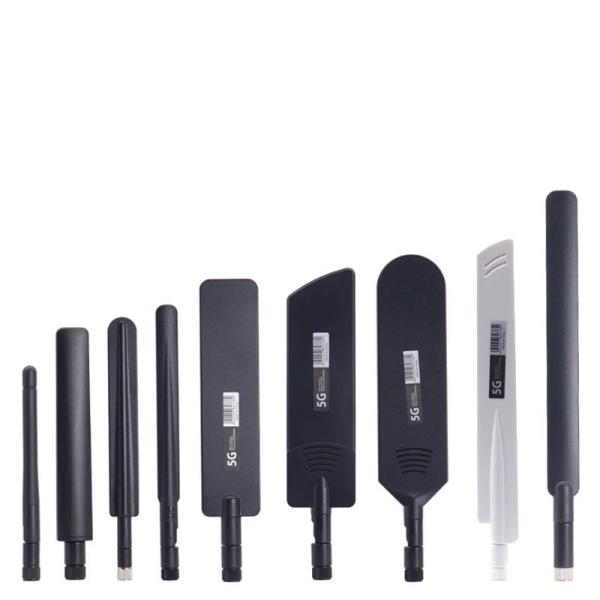

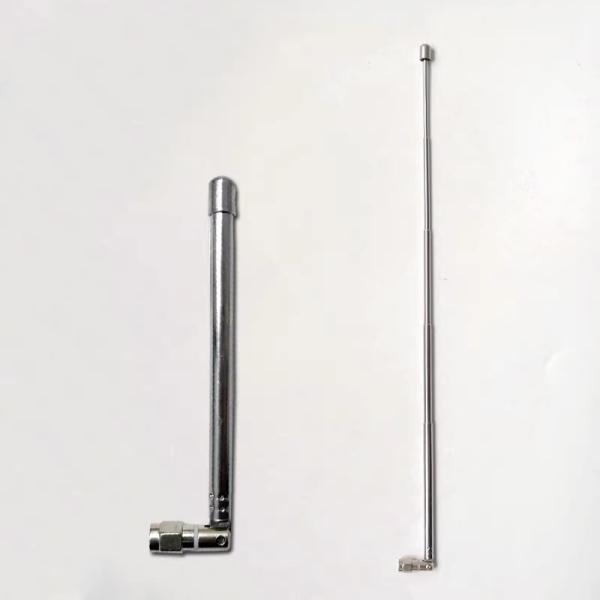

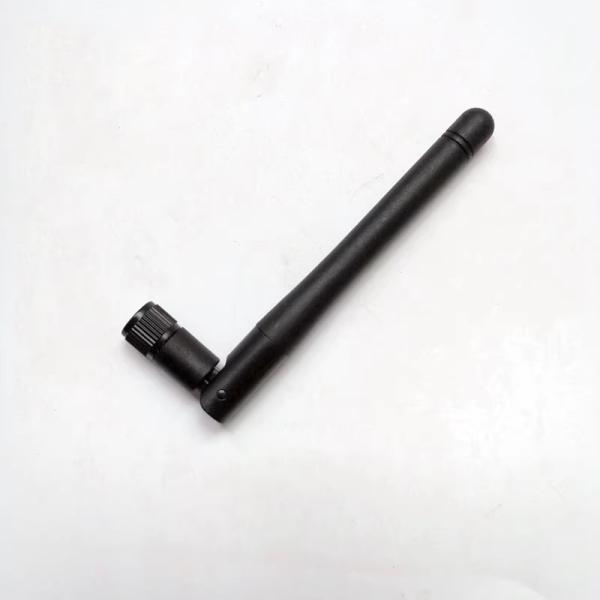

Rubber rod antenna

The rubber rod antenna is the most widely used indoor antenna. The interfaces of the rubber rod antenna include SMA straight heads and elbows.

The product offers high cost performance, a wide range of frequencies, and features excellent standing wave ratio performance, stable signals, low loss, compact dimensions, and easy installation.

It is widely applied in wireless communication of computer routing and communication equipment, as well as Internet of Things products, such as smart electricity meters, intelligent signal collection, LORA solutions, NB-IOT solutions, WIFI module solutions, 4G module solutions, and LED smart street lamps.

Built-in antenna

. The built-in antenna has three structures: PCB hard board, FPC soft board and ceramic.

The product features a compact size and diverse shapes. It is involved in various wireless standard applications such as cellular networks 2G/3G/4G, WIFI, Bluetooth, RFID, 433M, GPS, and Beidou

Built-in antennas are widely used in IOT technology fields such as consumer electronics, financial electronic terminals, wireless medical devices, smart homes and automotive electronics.

Coaxial connector

RF coaxial connectors (hereinafter referred to as RF connectors) are generally regarded as components that are installed on cables or instruments. As components for electrical connection or separation of transmission lines, they belong to mechatronic products. Simply put, it mainly serves as a bridge.

The series is rich, with over ten major categories and hundreds of models.

The products cover a wide range from low-end to high-frequency, from 500MHZ to 70GHZ.

There are three connection types: threaded, snap-on and snap-on

Temperature range: -55℃ to 250℃

Special customization is acceptable

Radio frequency wiring harness

Radio frequency harnesses are cables that transmit electromagnetic energy within the radio frequency range. Radio frequency cables are indispensable components in various radio communication systems and electronic devices, and are widely used in wireless communication and broadcasting, television, radar, navigation, computers and instruments, etc. There are many types of wire gauges, including three major standard wire gauges: RF, RG, and LMR, with dozens of specific models

It has a wide frequency range, from 1GHZ to 40GHz.

Temperature range: -55℃ to 250℃

· Multiple color shells such as white, black and gray

When paired with our company's connectors, the quality of the wiring harness is more guaranteed.

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
