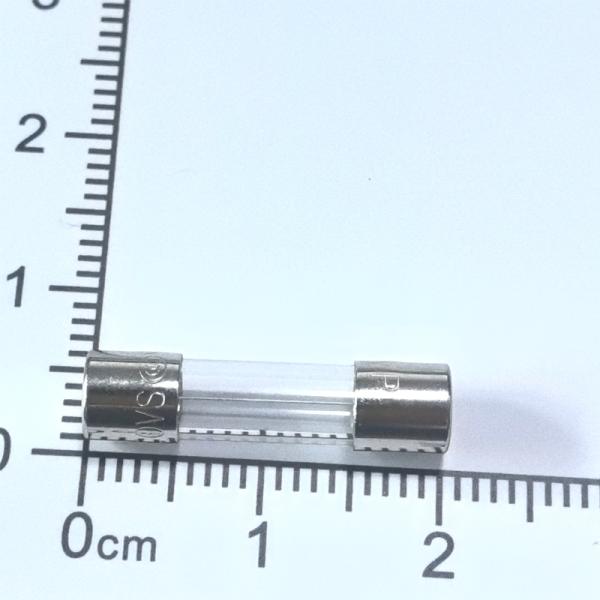

Axial Lead AND Cartridge Fuses 618 Series 5×20mm Time-Lag Fuse 0618001.MXP

Description
5x20mm Time-Lag glass body cartridge fuse designed toEC specification.
Features
Designed to InterationalAwailable in cartridge and(lEC ) Standards for useaxial lead formglobally
RoHS compliant andlead-free
Meets the lEC 60127-2,Sheet 3 specification forTime-Lag fuses

Applications
RoHS Pb
* Approval for Cartridge versions only
Application testing is strongly recommended.
Electrical Characteristics
5×20mm Time-Lag glass body cartridge fuse designed to
IEC specification.
Used as supplementary protection in appliance or
utilization equipment to provide individual protection for
components or internal circuits.
618 Series, 5×20 mm, Time-Lag Fuse
% of Ampere
Rating Ampere Rating Opening Time
150%
0.125A-6.3A 60 minutes, Minimum
8A-10A 30 minutes, Minimum
210% 0.125A-6.3A 120 sec., Maximum
8A-10A 120 sec., Maximum
275%
0.125A-6.3A 600 ms., Min.; 10 sec. Max.
8A-10A 600 ms., Min.; 10 sec. Max.
400%
0.125A-6.3A 150 ms., Min.; 3 sec. Max.
8A-10A 150 ms., Min.; 3 sec. Max.
1000%
0.125A-6.3A 20 ms., Min.; 300 ms. Max.
8A-10A 20 ms., Min.; 300 ms. Max.

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
