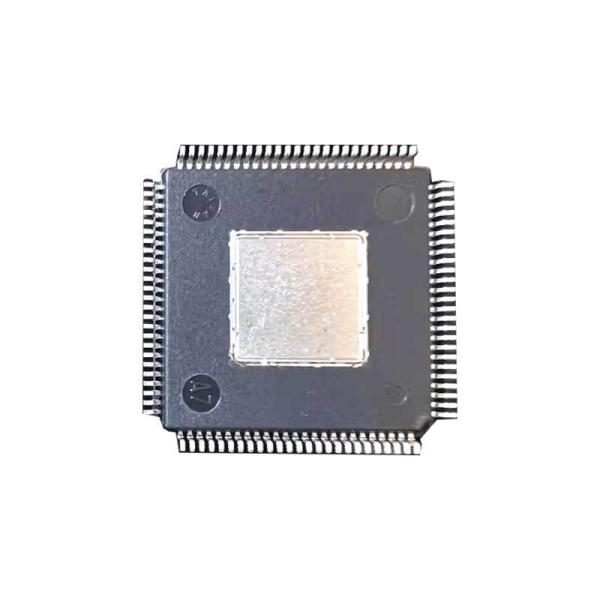

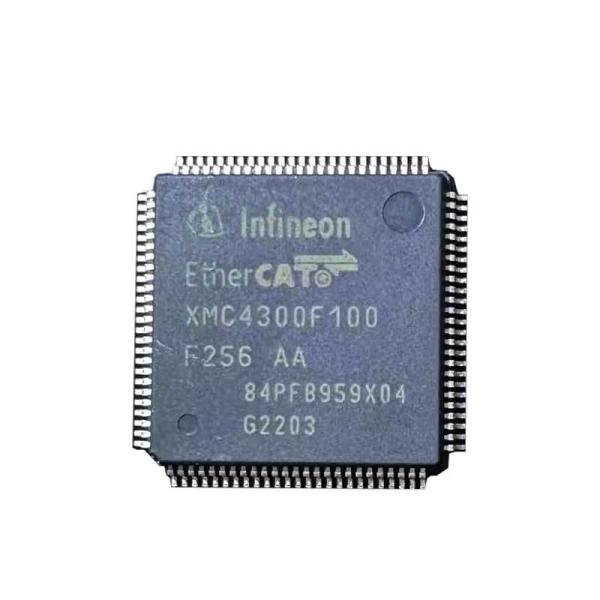

MPU XMC4300 Microcontroller Seriesfor Industrial Applications ARM® Cortex®-M4 32-bit processor core XMC4300F100F256AA

Summary of FeaturesThe XMC4300 devices are members of the XMC4000 Family of microcontrollers basedon the ARM Cortex-M4 processor core. The XMC4000 is a family of high performanceand energy efficient microcontrollers optimized for Industrial Connectivity, IndustrialControl, Power Conversion, Sense & Control.

CPU Subsystem• CPU Core– High Performance 32-bit ARM Cortex-M4 CPU– 16-bit and 32-bit Thumb2 instruction set– DSP/MAC instructions– System timer (SysTick) for Operating System support• Floating Point Unit• Memory Protection Unit• Nested Vectored Interrupt Controller• General Purpose DMA with up-to 8 channels• Event Request Unit (ERU) for programmable processing of external and internalservice requests• Flexible CRC Engine (FCE) for multiple bit error detection

On-Chip Memories• 16 KB on-chip boot ROM• 64 KB on-chip high-speed program memory• 64 KB on-chip high speed data memory• 256 KB on-chip Flash Memory with 8 KB instruction cacheCommunication Peripherals• Ethernet MAC module capable of 10/100 Mbit/s transfer rates• EtherCATSlave interface (ECAT) capable of 100 Mbit/s transfer rates with 2 MIIports, 8 Fieldbus Memory Management Units (FMMU), 8 Sync Manager, 64 bitdistributed clocks• Universal Serial Bus, USB 2.0 host, Full-Speed OTG, with integrated PHY• Controller Area Network interface (MultiCAN), Full-CAN/Basic-CAN with 2 nodes, 64message objects (MO), data rate up to 1 MBaud• Four Universal Serial Interface Channels (USIC),providing 4 serial channels, usableas UART, double-SPI, quad-SPI, IIC, IIS and LIN interfaces• LED and Touch-Sense Controller (LEDTS) for Human-Machine interface• SD and Multi-Media Card interface (SDMMC) for data storage memory cardsAnalog Frontend Peripherals• Two Analog-Digital Converters (VADC) of 12-bit resolution, 8 channels each, withinput out-of-range comparators• Digital-Analog Converter (DAC) with two channels of 12-bit resolutionIndustrial Control Peripherals• One Capture/Compare Units 8 (CCU8) for motor control and power conversion• Two Capture/Compare Units 4 (CCU4) for use as general purpose timers• Window Watchdog Timer (WDT) for safety sensitive applications• Die Temperature Sensor (DTS)• Real Time Clock module with alarm support• System Control Unit (SCU) for system configuration and controlInput/Output Lines• Programmable port driver control module (PORTS)• Individual bit addressability• Tri-stated in input mode• Push/pull or open drain output mode• Boundary scan test support over JTAG interface

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
