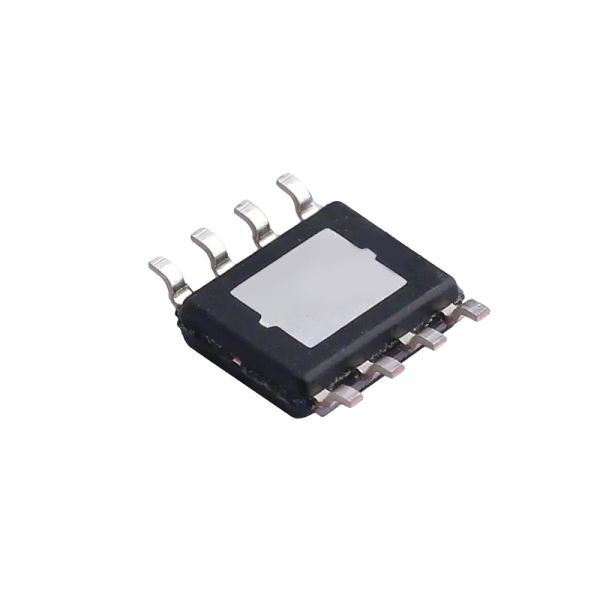

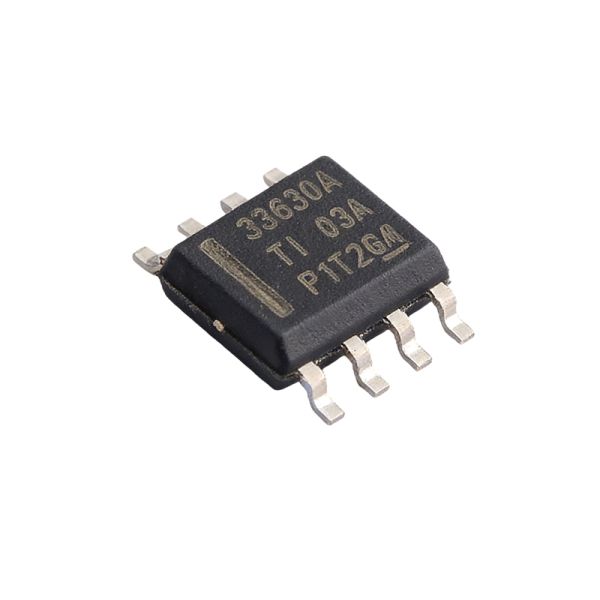

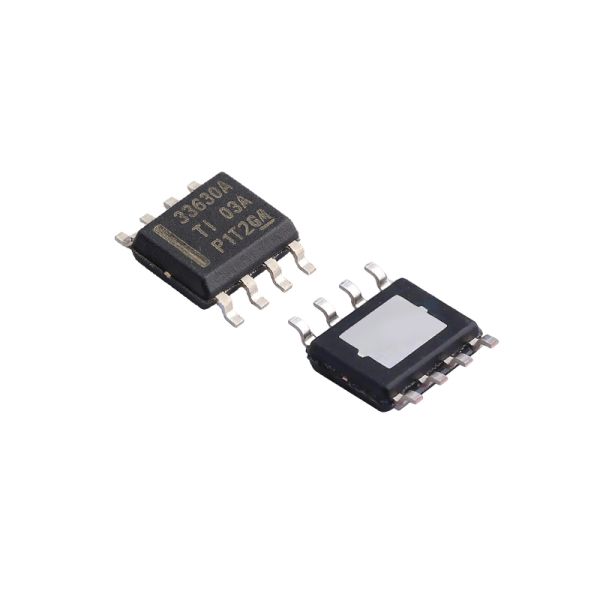

LMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak Efficiency
LMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak Efficiency
LMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak Efficiency
LMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak Efficiency
LMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak Efficiency
LMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak Efficiency
Specifications
Brand Name :
KONGSHEN
Model Number :
DSHP04TSGER
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
Switching Voltage Regulators
Output Voltage: :
1 V to 24 V
Output Current: :
3 A
Number of Outputs: :
1 Output
Input Voltage - Min: :
3.8 V
Input Voltage - Max: :
36 V
Description

LMR33630ADDAR Switching Voltage Regulators SIMPLE SWITCHER 3.8 V to 36V 3A

Features
  • Provides functional safety
  • Documentation that helps with functional safety system design
  • Specifically designed for harsh industrial applicaltions
  • Input voltage range: 3.8V to 36V
  • Output voltage range: 1V to 24V
  • Output current: 3A
  • 75m /50mRDs-ON Power MOSFET
  • Peak current mode control
  • Shortest conduction time is very short, only 68ns
  • Frequency: 400 kHz, 1.4 MHz, 2.1 MHz
  • Junction temperature range:-40°Cto +125°C
  • Low EMl and low switching noise
  • Integrated compensation network
  • Low EMl and switching noise
  • HotRodTM package
  • Parallel input current path
  • Efficient power conversion under all loads
  • Peak efficiency >95%
  • As low as 25pA operating static current
  • Flexible system interface
  • Power normal status Indicator and predise enable pin
  • Use TPSM53603 module to shorten product launch time
  • Use LMR33630 and create custom designsolutions using WEBENCH Power Designer
DEVICE OPTION
DEVICE OPTION PACKAGE FREQUENCY RATED CURRENT OUTPUT VOLTAGE
LMR33630ADDADDA (8-pin HSOIC)5 × 4 mm 400 kHz 3 A Adjustable
LMR33630BDDA (8-pin HSOIC)5 × 4 mm 1400 kHz 3 A Adjustable
LMR33630CDDA (8-pin HSOIC)5 × 4 mm 2100 kHz 3 A Adjustable
LMR33630ARNX (12-pin VQFN)3 × 2 × 0.85 mm 400 kHz 3 A Adjustable
LMR33630BRNX (12-pin VQFN)3 × 2 × 0.85 mm 1400 kHz 3 A Adjustable
LMR33630CRNX (12-pin VQFN)3 × 2 × 0.85 mm 2100 kHz 3 A Adjustable
LMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak EfficiencyLMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak EfficiencyLMR33630ADDAR SIMPLE SWITCHER Switching Voltage Regulator with 3A Output Current 36V Input Voltage and 95% Peak Efficiency
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
