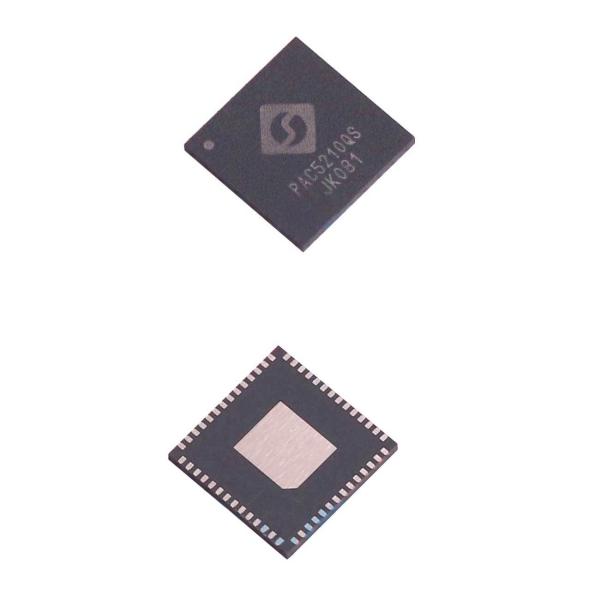

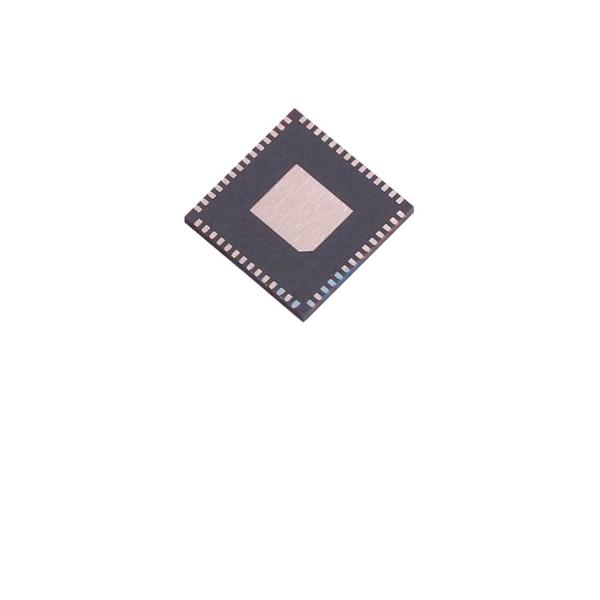

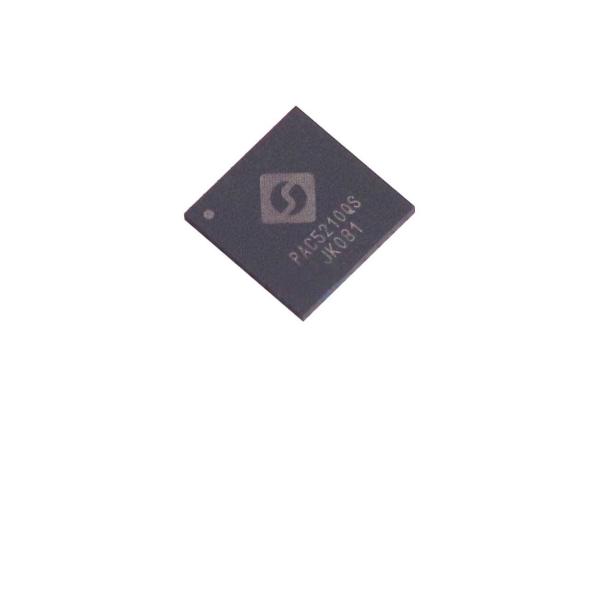

SOC Motor Driver M0 Core Industrial-grade Motor Driver Chip Switch Controller 600V IPM Controller PAC5210QS

The PAC5210 belongs to Active-Semi's broad portfolio of full-featured Power Application Controller® (PAC) products thatare highly optimized for controlling and powering next generation smart energy appliances, devices, and equipment. Theseapplication controllers integrate a 50MHz Arm© Cortex®-M0 32-bit microcontroller core with Active-Semi's proprietary andpatent-pending Multi-Mode Power ManagerTM, Configurable Analog Front EndTM, and Application Specific Power DriversTMto form the most compact microcontroller-based power and general purpose application systems ranging from digital powersupply to motor control. The PAC5210 microcontroller features up to 32kB of embedded FLASH and 8kB of SRAM memory,a high-speed 10-bit 1µs analog-to-digital converter (ADC) with dual auto-sampling sequencers, 5V / 3.3V I/Os, flexible clocksources, timers, a versatile 14-channel PWM engine, and several serial interfaces.The Multi-Mode Power Manager (MMPM) provides “all-in-one” efficient power management solution for multiple types ofpower sources. It features a configurable multi-mode switching supply controller capable of operating in buck, flyback, orboost mode, and up to four linear regulated voltage supplies. The Application Specific Power Drivers (ASPD) is mediumvoltage level open drain driver for general purpose driving. The Configurable Analog Front End (CAFE) comprisesdifferential programmable gain amplifiers, single-ended programmable gain amplifiers, comparators, digital-to-analogconverters, and I/Os for programmable and inter-connectible signal sampling, feedback amplification, and sensor monitoringof multiple analog input signals. Together, these modules and microcontroller enable a wide range of compact applicationswith highly integrated power management, driving, feedback, and control for DC supply up to 52V and for line AC supply.

PAC5210 FEATURES• Proprietary Multi-Mode Power Manager Multi-mode switching supply controller configurable as high-voltage or ultra-high-voltage buck, AC/DCor flyback DC supply up to 52V or line AC input 4 linear regulators with power and hibernate management Power and temperature monitor, warning, and fault detection• Proprietary Configurable Analog Front End 10 analog front end I/O pins 3 differential programmable gain amplifiers 4 single-ended programmable gain amplifiers 10 comparators 2 DACs (10-bit and 8-bit)• Proprietary Application Specific Power Drivers 3 open-drain drivers Configurable delays and fast fault protection• 50MHz Arm Cortex-M0 32-bit microcontroller core Fast single cycle 32-bit x 32-bit multiplier 24-bit SysTick timer Nested vectored interrupt controller (NVIC) with 20 external interrupts Wake-up interrupt controller allowing power-saving sleep modes Clock-gating allowing low power operation• 32kB FLASH and 8kB SRAM memory• 10-bit 1µs ADC with multi-input/multi-sample control engine 11 ADC inputs including input from configurable analog front end• 3.3V I/Os 4 general purpose I/O with tri-state and dedicated analog input to ADC• True 5V I/Os 23 general purpose I/Os with tri-state, pull-up and pull-down and dedicated I/O supply Configurable between true 5V and 3.3V I/Os• Flexible clock and PLL from internal 2% oscillator, ring oscillator, external clock, or crystal
