Battery Management Applied To Single-cell Lithium-ion Lithium-polymer Batteries And Charger Chips BQ24090DGQR

BQ2409x 1 a, single input and single cell lithium-ion and lithium polymer battery charger

1. Characteristics

• Charging - The charging voltage accuracy is 1%. • The charging current accuracy is 10%. • The pins can provide a maximum input current of 100mA and 500mA via USB

Limit - Programmable termination and pre-charging threshold

• Protection - 6.6V overvoltage protection - Input voltage dynamic power management - 125°C thermal regulation; 150°C thermal shutdown protection - OUT short-circuit protection and ISET short-circuit detection - operating within the JEITA range via battery NTC - cold state

½ Fast charging current, 4.06V in hot state,BQ092/3 - fixed 10-hour safety timer

• System - Lacks automatic termination and metering of battery packs with thermistors

Timer Disabled Mode (TTDM) - Status indication - Charging/Complete - Small 10-pin MSOP package

2 Applications

Smart phone

• Personal digital assistant

MP3 player

Low-power handheld devices

3 Explanation

The BQ2409x series of devices are highly integrated lithium-ion and lithium-polymer batteries.

A portable charging device suitable for space-constrained applications. This device is composed of

Powered by a USB port or an AC adapter. High input, with input overvoltage protection.

The input voltage range supports low-cost, unregulated adapters.

The BQ2409x features a single power output for battery charging. If it is 10

During the safe charging period, the average load of the system within one hour cannot fully charge the battery.

Electricity enables the system load to be connected in parallel with the battery.

Battery charging goes through the following three stages: regulation, constant current and constant current.

Press. During all charging stages, the internal control loop monitors the IC node.

When the temperature exceeds the internal temperature threshold, it will reduce the charging current.

Equipment Information (1

Equipment model, packaging, packaging size (nominal value)

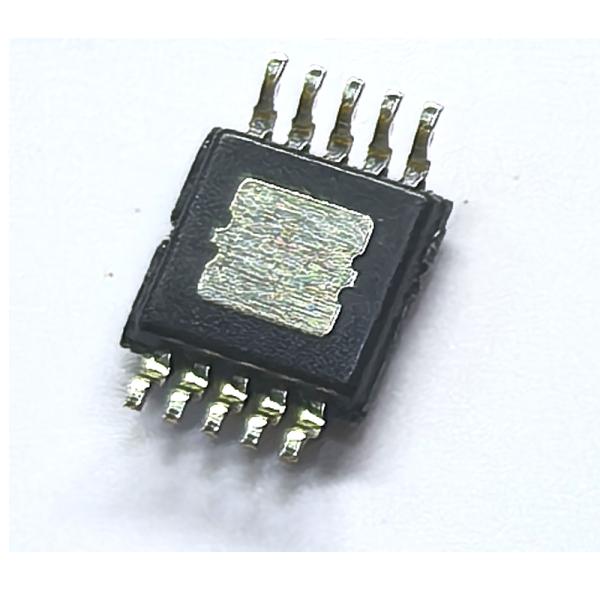

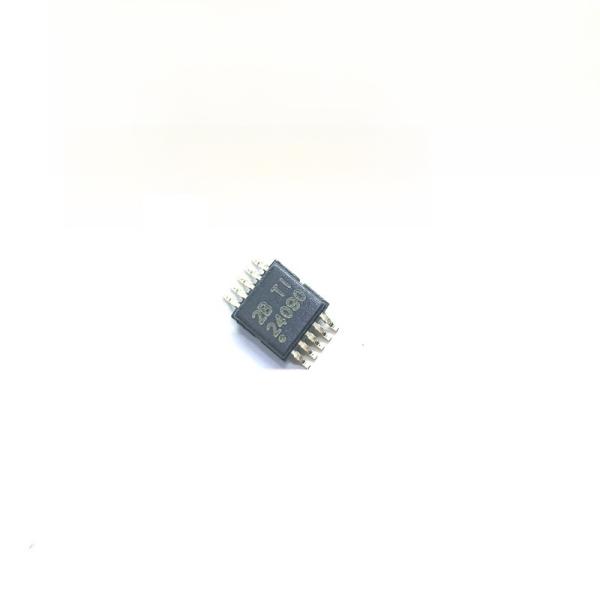

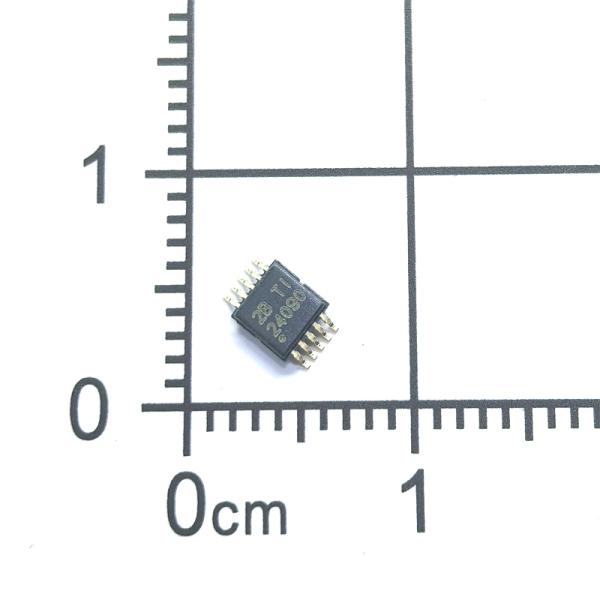

BQ2409x HVSSOP (10) 3.00mm x 3.00mm

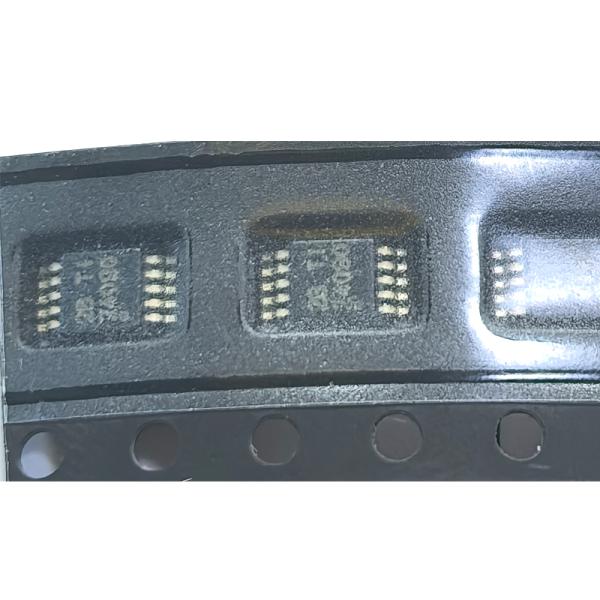

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
