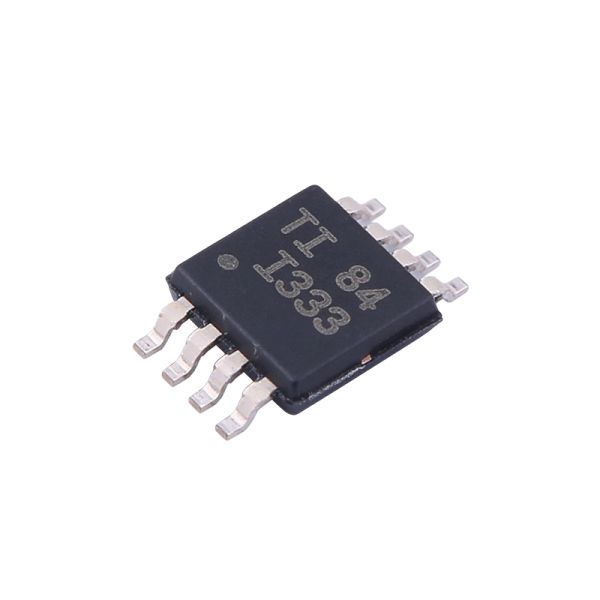

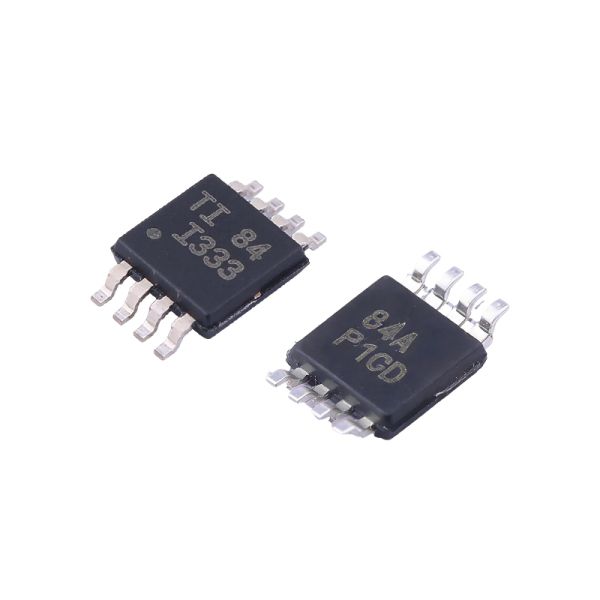

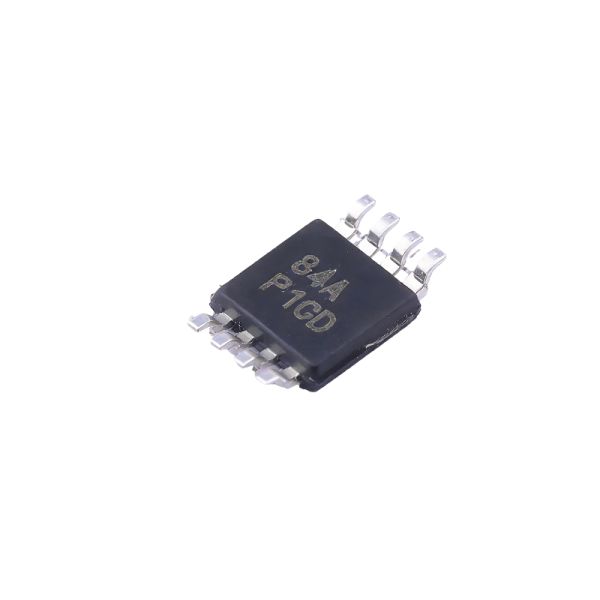

INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current
INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current
INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current
INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current
INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current
INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current
Specifications
Brand Name :
TI
Model Number :
INA333AIDGKR
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
Western Union,T/T
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Number of Channels: :
1 Channel
3 dB Bandwidth: :
150 kHz
SR - Slew Rate: :
160 mV/us
CMRR - Common Mode Rejection Ratio: :
100 dB
Ib - Input Bias Current: :
200 pA
Vos - Input Offset Voltage: :
25 uV
Description
INA333AIDGKR Instrumentation Amplifiers Lo Pwr Prec Inst Amp A 595-INA333AIDGKT A 595-INA333AIDGKT
Features
  • Low Offset Voltage: 25 μV (Maximum), G ≥ 100
  • Low Drift: 0.1 μV/°C, G ≥ 100
  • Low Noise: 50 nV/√Hz, G ≥ 100
  • High CMRR: 100 dB (Minimum), G ≥ 10
  • Low Input Bias Current: 200 pA (Maximum)
  • Supply Range: 1.8 V to 5.5 V
  • Input Voltage: (V–) +0.1 V to (V+) –0.1 V
  • Output Range: (V–) +0.05 V to (V+) –0.05 V
  • Low Quiescent Current: 50 μA
  • Operating Temperature: –40°C to +125°C
  • RFI Filtered Inputs
  • 8-Pin VSSOP and 8-Pin WSON Packages
Applications
  • Bridge Amplifiers
  • ECG Amplifiers
  • Pressure Sensors
  • Medical Instrumentation
  • Portable Instrumentation
  • Weigh Scales
  • Thermocouple Amplifiers
  • RTD Sensor Amplifiers
  • Data Acquisition
Absolute Maximum Ratings
Parameter Min Max Unit
Supply voltage 7
V
Analog input voltage(2) (V–) – 0.3 (V+) + 0.3 V
Output short-circuit(3) Continuous
Operating temperature, TA –40 150 °C
Junction temperature, TJ
150 °C
Storage temperature, Tstg –65 150 °C

INA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias CurrentINA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias CurrentINA333AIDGKR Low Power Precision Instrumentation Amplifier with 25 μV Offset Voltage, 100 dB CMRR, and 200 pA Input Bias Current

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
