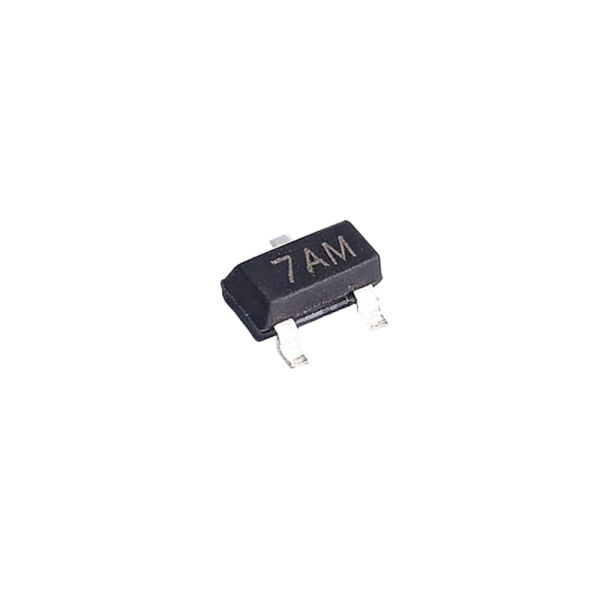

SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers
SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers
SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers
SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers
SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers
SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers
Specifications
Brand Name :
R+O
Model Number :
SM712
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Catalog :
Electrostatic and Surge Protection (TVS/ESD)
Polarity :
bidirectior
Reverse Cut-offVoltage (Vrwm) :
12V: 7V
Clamp Voltage :
16V;26V
Peak PulseCurrent (lpp) :
12A
Peak PulsePower (Ppp) :
300W
Description
SM712 Bi-directional 7/12V Normal Capacitance ESD
Features
  • Normal capacitance: C1,2 to 3=75pF(Max.)
  • Protects two -7V to +12V lines
  • Low leakage current
  • IEC 61000-4-2 (ESD Air): ±20kV
  • IEC 61000-4-2 (ESD Contact): ±15kV
  • IEC 61000-4-5 (Lightning 8/20µs): 12A
Applications
  • Protection of RS-485 transceivers with extended common-mode range
  • Security systems
  • Automatic teller machines
  • HFC systems
  • Net works
SYMBOL PARAMETER
VC
Clamping Voltage @ IPP
VBR
Breakdown Voltage @ IT
IPP
Peak Pulse Current
IT
Test Current
IR
Reverse Leakage Current @ VRWM
VRWM
Peak Reverse Working Voltage
PPP
Peak Pulse Power Dissipation
CJ
Junction Capacitance @ VR=0V,f=1MHz
IF
Forward Current
VF
Forward Voltage @IF
SM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 TransceiversSM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 TransceiversSM712 Bi-directional 7/12V Low Capacitance High ESD Protection TVS Diode for RS-485 Transceivers
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
