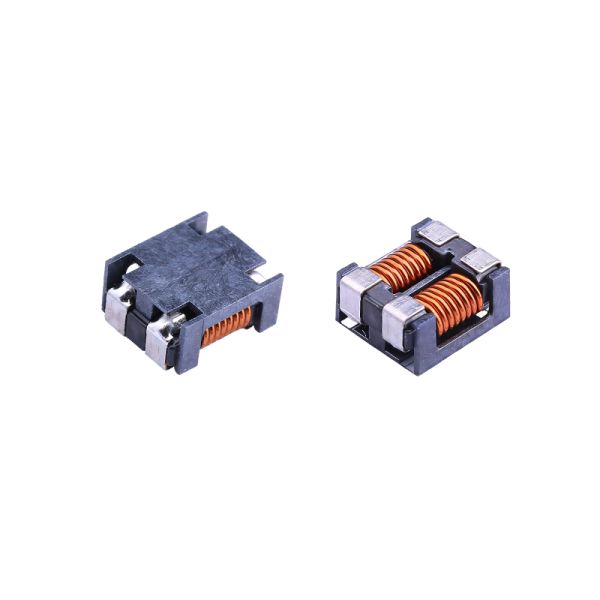

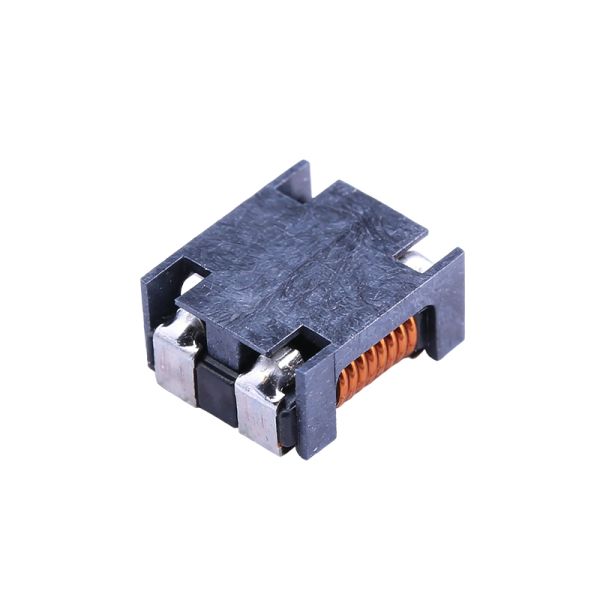

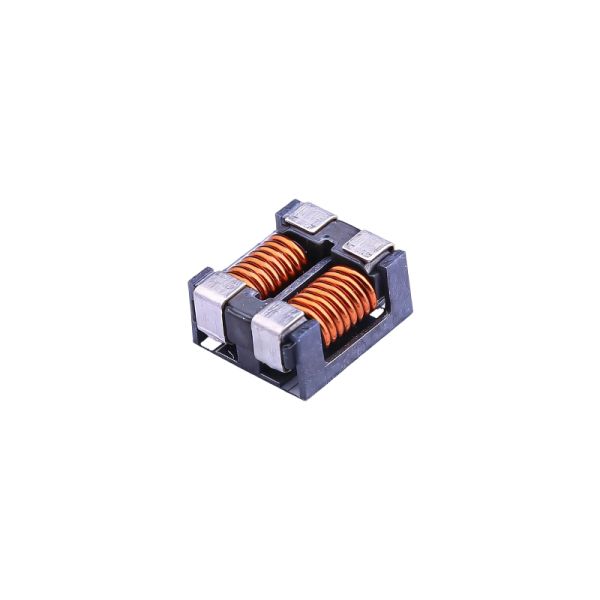

ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control
ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control
ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control
ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control
ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control
ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control
Specifications
Brand Name :
TDK
Model Number :
ACM70V-701-2PL-TL00
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
Common Mode Chokes / Filters
Series: :
ACM-V
Mounting Style: :
PCB Mount
Termination Style: :
SMD/SMT
Number of Channels: :
2 Channel
Inductance: :
7.5 uH
Description
ACM70V-701-2PL-TL00 Common Mode Chokes / Filters 80V 4.0A 15mOhms AEC-Q200
Product Features

By using a square closed-loop magnetic core specially designed for this purpose, miniaturization is achieved while maintaining the characteristics.

Due to its low-profile design, it is suitable for surface mounting.

It exhibits high impedance characteristics that effectively control common-mode noise.

Products suitable for DC power lines with a maximum current of 8A are serialized.

The operating temperature range is from -40°C to +125°C.

Soldering Parameters
Phase Temperature Time
Preheating 150°C
Soldering 180°C 60 to 120s
Peak Temp. 230°C 10 to 30s
245°C 5s
ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control ACM70V-701-2PL-TL00 Common Mode Choke with 80V 4.0A Current and AEC-Q200 Certification for Noise Control
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
