W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI
W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI
W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI
W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI
W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI
W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI
Specifications
Brand Name :
Winbond
Model Number :
W25Q32JWSSIQ
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Operating Temperature :
-40℃~+85℃
operating voltage :
1.7V~1.95V
Interface Type :
SPI
Storage Capadity :
32Mbit
Clock Frequency (fc) :
133MHz
Page write time (Tpp) :
5ms
Description
W25Q32JWSSIQ NOR FLASH 1.8V 32M-Bit Serial Flash Memory with Dual/Quad SPI
High-performance 32M-bit serial flash memory supporting standard SPI, dual SPI, and quad SPI interfaces with advanced security features and efficient power management.
Key Features
  • New SpiFlash Memory Family: 32M-bit / 4M-byte capacity
  • Multiple Interface Support: Standard SPI, Dual SPI, and Quad SPI
  • High Performance: 133MHz single, 266/532MHz equivalent Dual/Quad SPI
  • 66MB/s continuous data transfer rate
  • Minimum 100K program-erase cycles per sector
  • Over 20-year data retention
  • Efficient continuous read with true XIP (execute in place) operation
  • Low power consumption: Single 1.7V to 1.95V supply
  • Wide temperature range: -40°C to +85°C
  • Flexible 4KB sector architecture with uniform erase capabilities
  • Advanced security features including software/hardware write-protect
  • Space-efficient packaging options available
Performance Specifications
Highest Performance Serial Flash:
133MHz Single, Dual/Quad SPI clocks
266/532MHz equivalent Dual/Quad SPI
66MB/S continuous data transfer rate
Min. 100K Program-Erase cycles per sector
More than 20-year data retention
Power & Temperature
Low Power, Wide Temperature Range:
Single 1.7V to 1.95V supply
<0.1µA Power-down (typical)
-40°C to +85°C operating range
Pin Configuration
Ball No. Pin Name I/O Function
A2 VCC Power Supply
B2 /HOLD or /RESET(IO3) I/O Hold Input or /RESET (Data Input Output 3)
C2 CLK I Serial Clock Input
D2 DI (IO0) I/O Data Input (Data Input Output 0)
A3 /CS I Chip Select Input
B3 DO (IO1) I/O Data Output (Data Input Output 1)
C3 /WP (IO2) I/O Write Protect Input (Data Input Output 2)
D3 GND Ground
Multiple NC No Connect

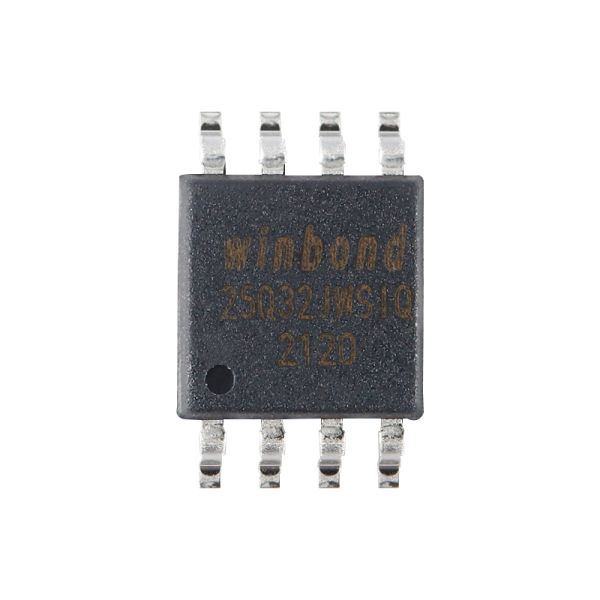

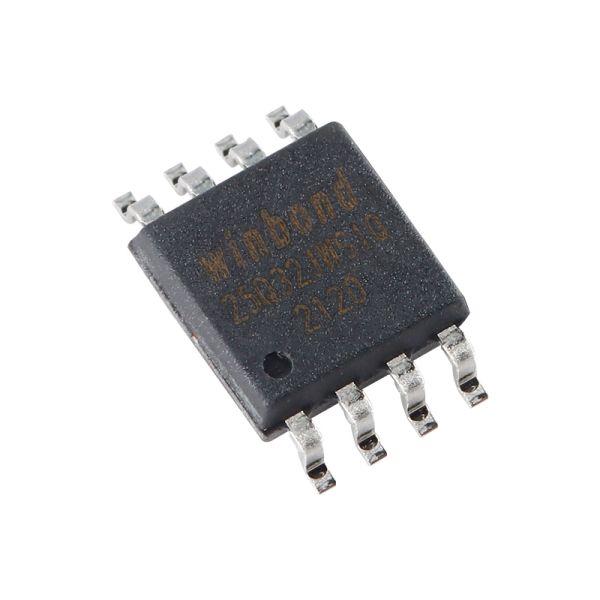

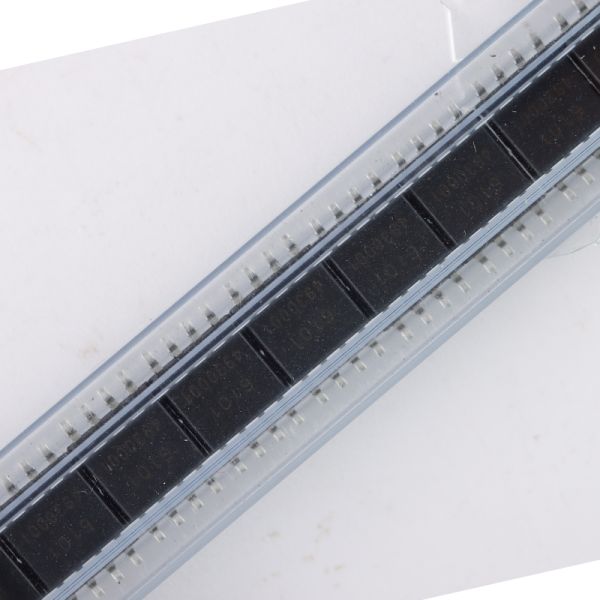

Product Images
W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI W25Q32JWSSIQ NOR FLASH 1.8V 32M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
