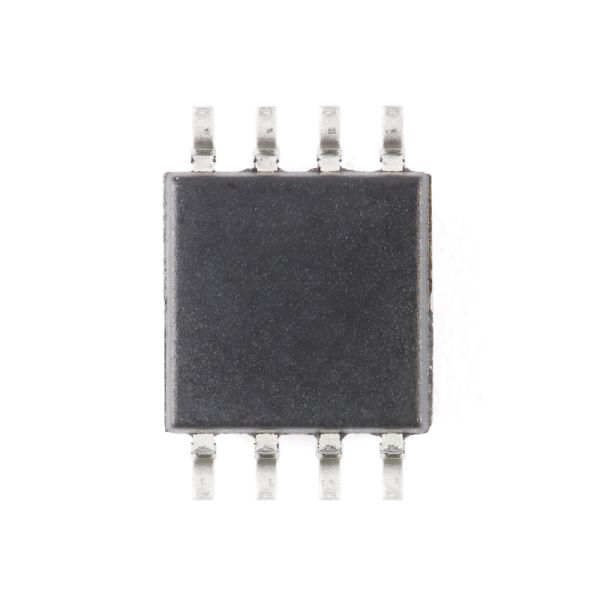

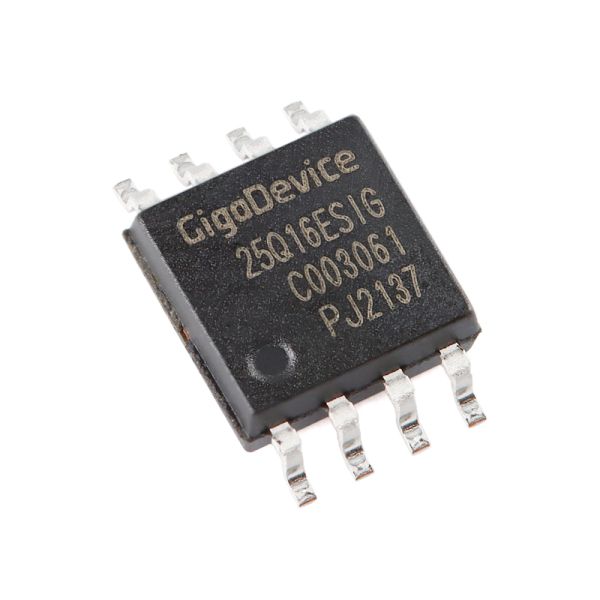

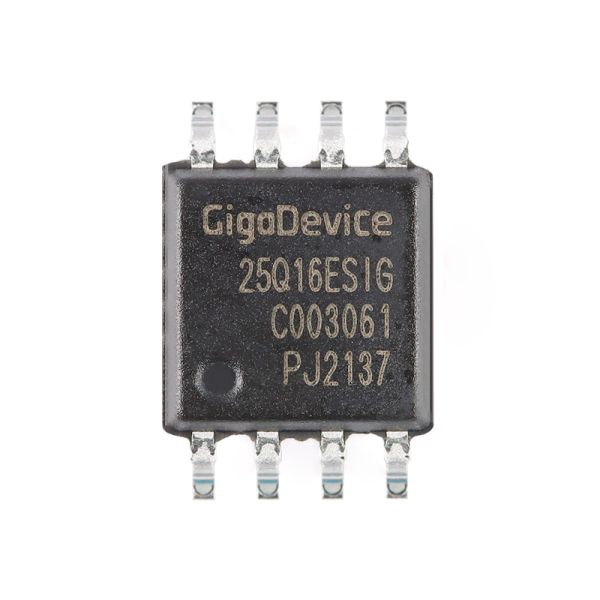

GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
Specifications
Brand Name :
GigaDevice
Model Number :
GD25Q16ESIG
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Operating Temperature :
-40℃~+85℃
operating voltage :
2.7V~3.6V
Interface Type :
SPI
Storage Capadity :
-
Clock Frequency (fc) :
133MHz
Page write time (Tpp) :
400us
Description
GD25Q16ESIG 3.3V Uniform Sector Dual and Quad Serial Flash 133MHz
Product Overview
16M-bit Serial Flash memory with advanced SPI interfaces, high-speed performance, and robust security features for industrial applications.
Key Features
  • 16M-bit Capacity: High-density serial flash memory
  • Fast Program/Erase Speed: Page Program: 0.4ms typical, Sector Erase: 45ms typical, Block Erase: 0.15s/0.25s typical, Chip Erase: 6s typical
  • Multiple SPI Interfaces: Standard SPI, Dual SPI, and Quad SPI support
  • High-Speed Performance: 133MHz clock frequency with 30PF load, Dual I/O up to 266Mbits/s, Quad I/O up to 532Mbits/s
  • Comprehensive Write Protection: Software/hardware write protection with WP# pin and top/bottom block protection
  • Flexible Architecture: Uniform 4K-Byte sectors and 32/64K-Byte blocks
  • Low Power Consumption: 11μA typical standby current, 1μA deep power down current
  • Advanced Security: 128-bit Unique ID per device, SFDP register, 2x1024-Byte security registers with OTP locks
  • High Reliability: 100,000+ program/erase cycles, 20-year data retention
  • Single Power Supply: 2.7-3.6V full voltage range operation
Pin Configuration
Pin No. Pin Name I/O Description
1 CS# I Chip Select Input
2 SO (IO1) I/O Data Output (Data Input Output 1)
3 WP# (IO2) I/O Write Protect Input (Data Input Output 2)
4 VSS Ground
5 SI (IO0) I/O Data Input (Data Input Output 0)
6 SCLK I Serial Clock Input
7 HOLD# (IO3) I/O Hold Input (Data Input Output 3)
8 VCC Power Supply
Product Documentation
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz
GD25Q16ESIG 3.3V Uniform SectorDual and Quad Serial Flash 133MHz

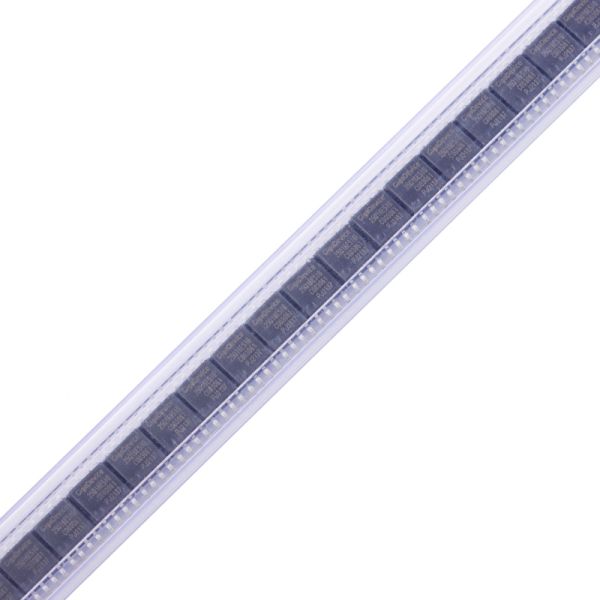

Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
